SAFETY GUIDELINES / DEFINITIONS
UNPACKING AND INSPECTION
SPECIFICATIONS
IMPORTANT SAFETY INFORMATION
Specifications are subject to change without notice
WARNING
READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND WARNINGS BEFORE
OPERATING THIS TOOL. FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY AND/OR
PROPERTY DAMAGE AND WILL VOID WARRANTY.
This instruction manual is intended for your benefit. Please read and follow the safety, installation, maintenance and
troubleshooting steps described within to ensure your safety and satisfaction. The contents of this instruction manual are
based upon the latest product information available at the time of publication. The manufacturer reserves the right to make
product changes at any time without notice.
After opening the carton, unpack your new product and related parts & accessories. Please inspect it
carefully for any damage that may have occurred during transit. Please check it against the
photograph on carton.
WARNING
DO NOT operate this product if damaged during shipment, handling or misuse. Do not operate the
product until the parts have been replaced or the fault rectified. Failure to do so may result in serious personal
injury or property damage. All damaged parts must be repaired or replaced as needed prior to operating this
product. Check to see that all nuts, bolts and fittings are secure before putting this product into service.
Please have the serial number, model number, and date of purchase available for reference when calling.
WARNING: Read and understand this entire instruction manual before attempting to assemble,
install, operate or maintain this product. Failure to comply with the instructions may result in serious
personal injury and/or property damage!
The following signal words are used to emphasize safety warnings that must be followed when using
this product:
DANGER Indicates an imminently hazardous
situation that, if not avoided,
WILL result in death or serious
injury.
WARNING Indicates a potentially hazardous
situation that, if not avoided,
COULD result in death or serious
injury.
CAUTION Indicates a potentially hazardous
situation that, if not avoided,
MAY result in minor or moderate
injury.
NOTICE Indicates important information,
which if not followed,
MAY cause damage to equipment.
Capacity: ..................................... 4 Ton (8,000 lbs.), 2 Ton (4,000 lbs.) with extensions
Ram Travel: .................................................................................................................. 5 in.
Extension Pole Length: .............................................................. 5 ft. 10 1/2 in. Maximum
Spreader Wedge Capacity: .................................... 1/2 Ton, 3 3/4 in. Maximum Opening
Hose Length: ................................................................................................................. 6 ft.

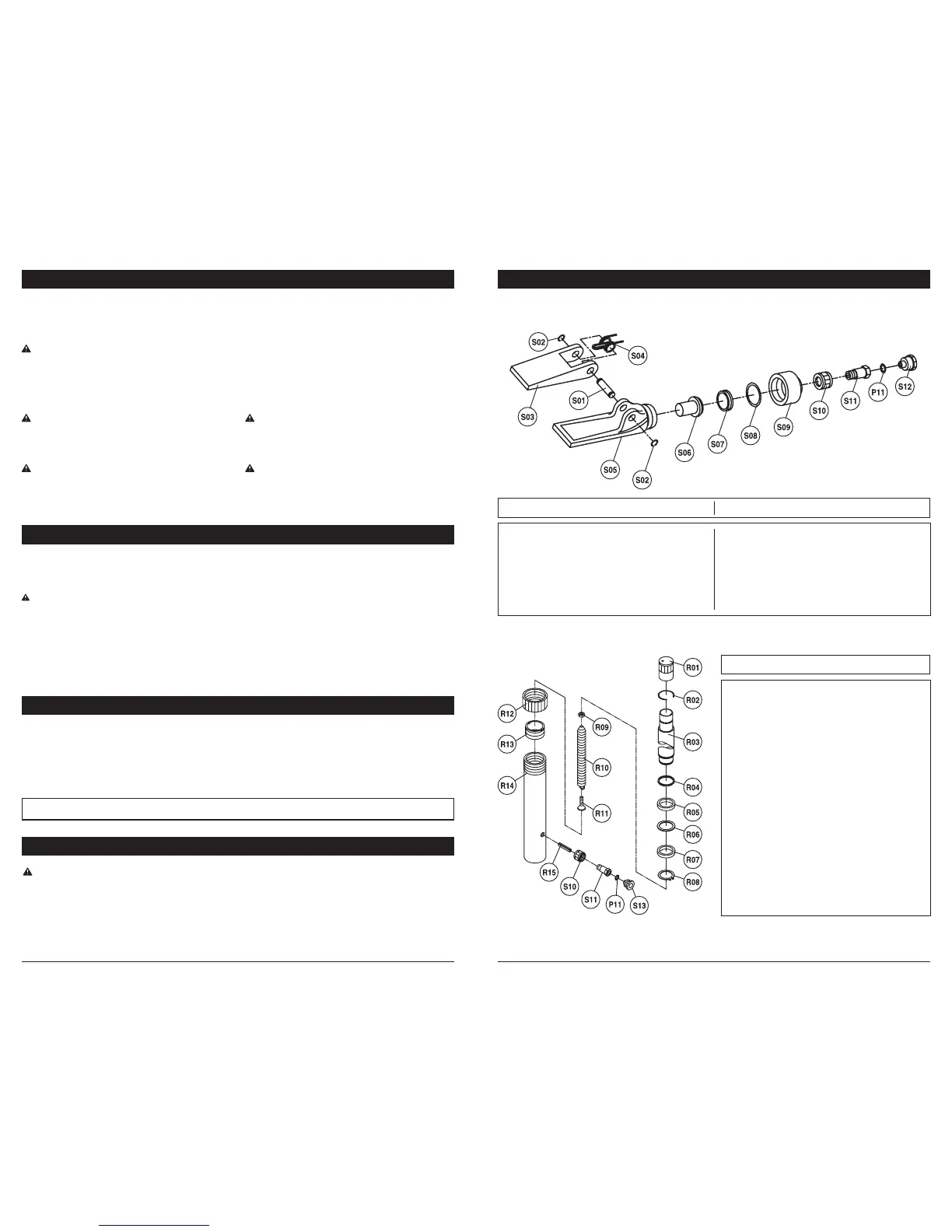

REPLACEMENT PARTS LIST
SPREADER WEDGE
S01 Pin 1
S02 Circlip 1
S03 Moveable Jaw 1
S04 Spring 1
S05 Fixed Jaw 1
S06 Piston 1
S07 Cup Seal 1
S08 O-ring 1
S09 End Cap 1
S10 Coupling Ring 1
S11 Coupling Bolt 1
P11 O-Ring 1
S12 Dust Cap 1
# Description Qty # Description Qty
# Description Qty
R01 Cover 1
R02 Circlip 1
R03 Piston Rod 1
R04 Circlip 1
R05 Bushing 1
R06 Nylon Ring 1
R07 Sealing Ring 1
R08 Circlip 1
R09 Nut 1
R10 Spring 1
R11 Screw 1
R12 Protection Cup 1
R13 Ring 1
R14 Cylinder 1
R15 Screw 1
S10 Coupling Ring 1
S11 Coupling Ring 1
P11 O-Ring 1
S13 Dust Cap 1
RAM
