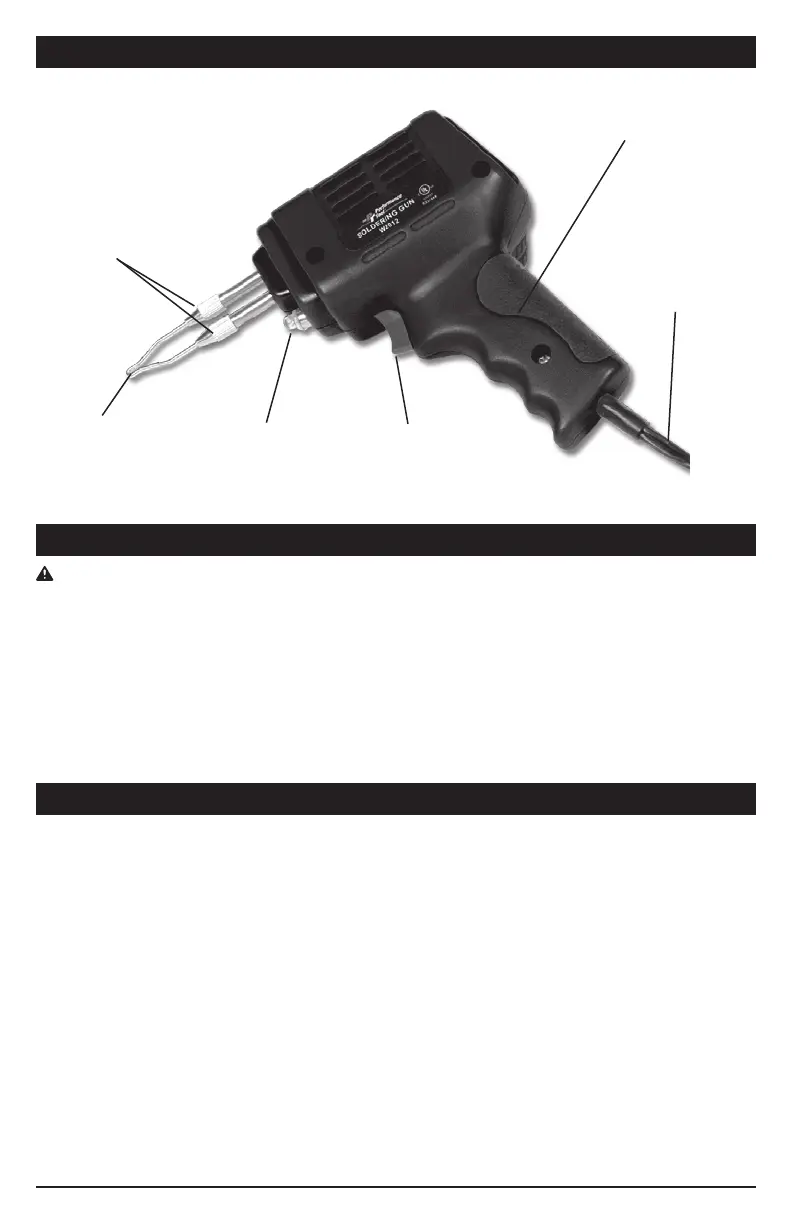

PARTS DESCRIPTION
Soldering Tip
Soldering Tip Nut
Light Trigger
Power Cord
Handle
TOOL SET UP
WARNING!
To prevent serious injury from accidental operation: Make sure that
the trigger is in the off position and unplug the tool from its electrical outlet before
performing any procedure in this section.
1.
Using Wrench, check that the Soldering
Tip Nuts are not loose. Do not overtighten.
2. The Soldering Gun comes with three
Soldering Tips for different applications.
Select desired Soldering Tip and install
following soldering tip replacement direc-
tions outlined in the Maintenance and
Servicing section on Page 6.
1.
Set the Soldering Gun on the workbench,
and plug the Power Cord into an
electrical outlet.
2. Press on the Trigger until the Soldering
Tip heats up.
3. Apply a sufficient amount of rosin-core
solder to melt over the entire Soldering
Tip. Wipe the tip with a rag until the tip is
clean and shiny.
4. Brush on solder flux, as needed, to the
workpiece. Place the Soldering Tip to the
joint, wiring splice, or metal to be soldered.
5. Apply solder to the wire splice or metal to
be soldered, not the Soldering Tip. When
the splice or metal is hot enough, it will
melt the solder causing it to flow within the
splice or between the metal surfaces.
6. When the solder has flowed over the
entire wire splice or metal surface, remove
the Soldering Tip and release the Trigger.
7. To prevent accidents, turn off the tool and
unplug it after use. Clean, then store the
tool indoors out of children’s reach.
