Performance Tool W2976 User Manual

Tool Description

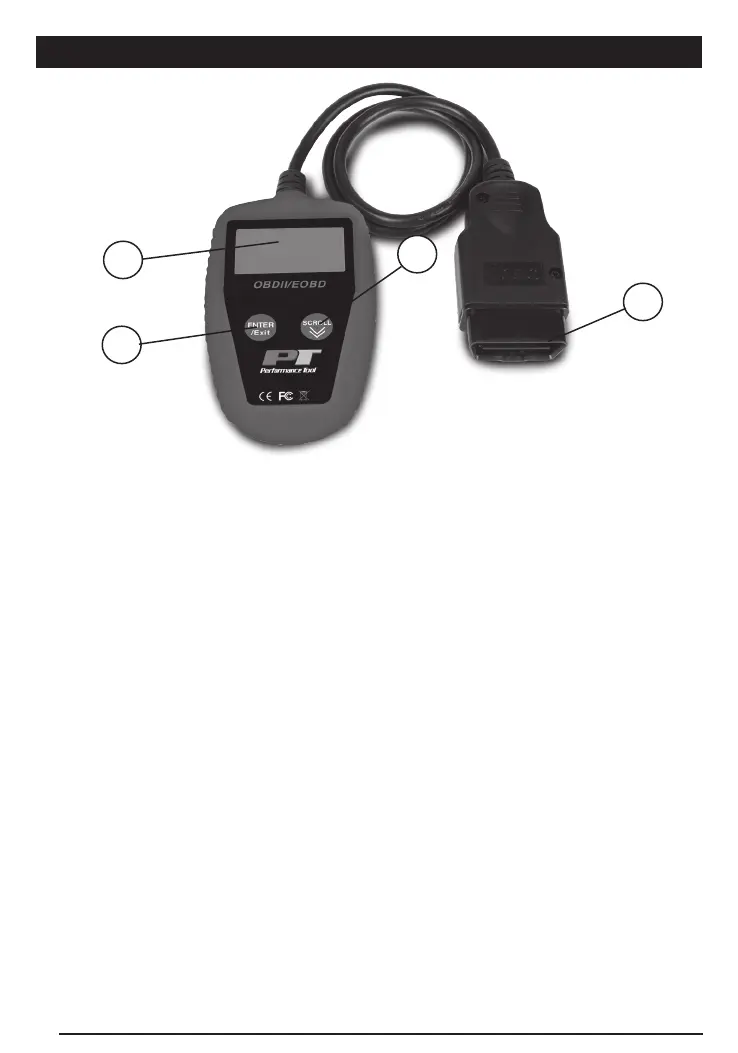

1. LCD DISPLAY - Indicates test results. It is a backlit 2-line display with 8
characters on each line.
2. ENTER/EXIT BUTTON - Confirms a selection (or action) from a menu list, or
returns to the main menu.
3. SCROLL BUTTON - Scrolls through menu items or It is also used to enter
system setup menu when pressed.
4. OBD II CONNECTOR - Connects the Code Scanner to the vehicle’s Data Link
Connector (DLC).
Navigation
Characters used to help navigate the code reader are:
1) “u” -- Indicates current selection.
2) “Pd” -- Identifies a pending DTC when viewing DTCs.
3) “$” -- Identifies the control module number from which the data is retrieved.
Power
The power of the code reader is provided via the vehicle Data Link
Connector (DLC). Follow the steps below to turn on the code reader:
1) Find DLC on vehicle. (A plastic DLC cover may be found for some vehicles and
you need to remove it before plugging the OBD2 cable.)
2) Plug OBD II cable to the vehicle’s DLC.
PRODUCT INFORMATION
1
2
4
3
8

Performance Tool W2976 Specifications

General

Brand	Performance Tool
Model	W2976
Category	Diagnostic Equipment
Language	English
