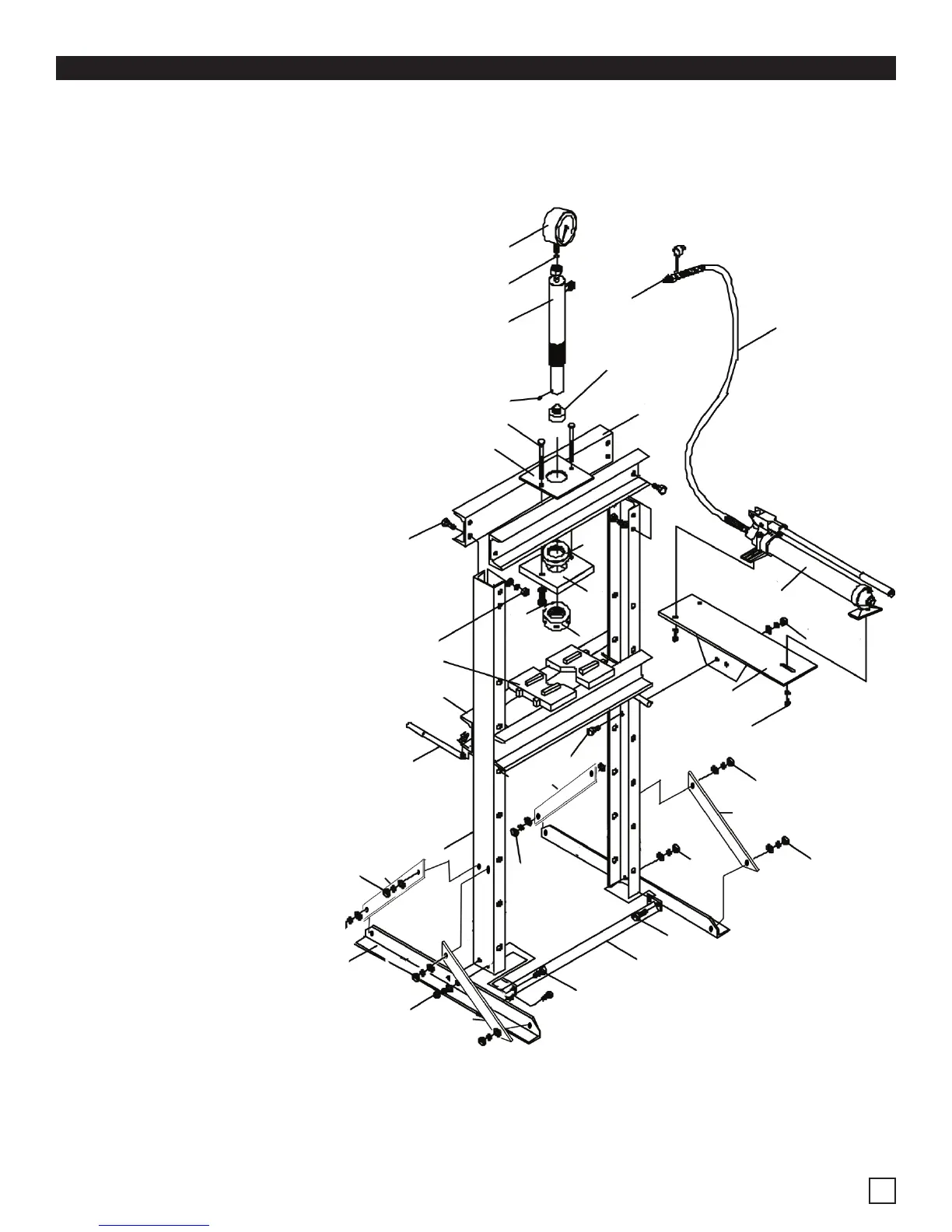

Use the exploded drawing as your guide to assemble. Lay all parts and assemblies out in front of you before
beginning. The following procedure is recommended:
1. Attach one base section to left post,
add the support straps to the base
and post. Do this using the bolts,
washers, lock washers and nuts.
Attach the other base section and
straps to the right post.
2. Put the press frame in an upright
position, attach the two upper cross
beams to left and right posts using bolts
washers, lock washers and nuts.
3. Put the upper plate onto the upper
crossbeam, insert the bolt into the hole
in the upper plate, insert the ram into the
hole in the upper plate.
4. Screw the upper round nut onto the
ram until snug, put the under plate onto
the ram and secure the upper plate and
under plate by tightening washers and
nuts to bolts. Screw the under round
nut onto the ram and secure with a punch
and soft face mallet.
5. Insert bed frame pin into the holes in
the posts, then insert the press bed frame
into press frame and onto bed frame pin.
6. Attach the setting plate to the right
post using bolts, washers,
lock washers and nuts, then
secure the pump assemblies using
the bolt and washers, and then insert
the handle to the handle bracket.
7. Connect the hydraulic hose fitting to the
connection nut and assemble the pressure
gauge on the pressure gauge connection nut which is on the top of ram.
8. Tighten all bolts and screws.
3
ASSEMBLY INSTRUCTIONS
1
2
3
4
5
6
12
27
26
25
24
23
22
21
20
19
18
17
16
15 14 13
12
11
10
9
8
7
28
29
30
151413
12
12
151413
15 14 13
20A
20A
20A
20A
151413
151413
151413
151413
151413
151413
