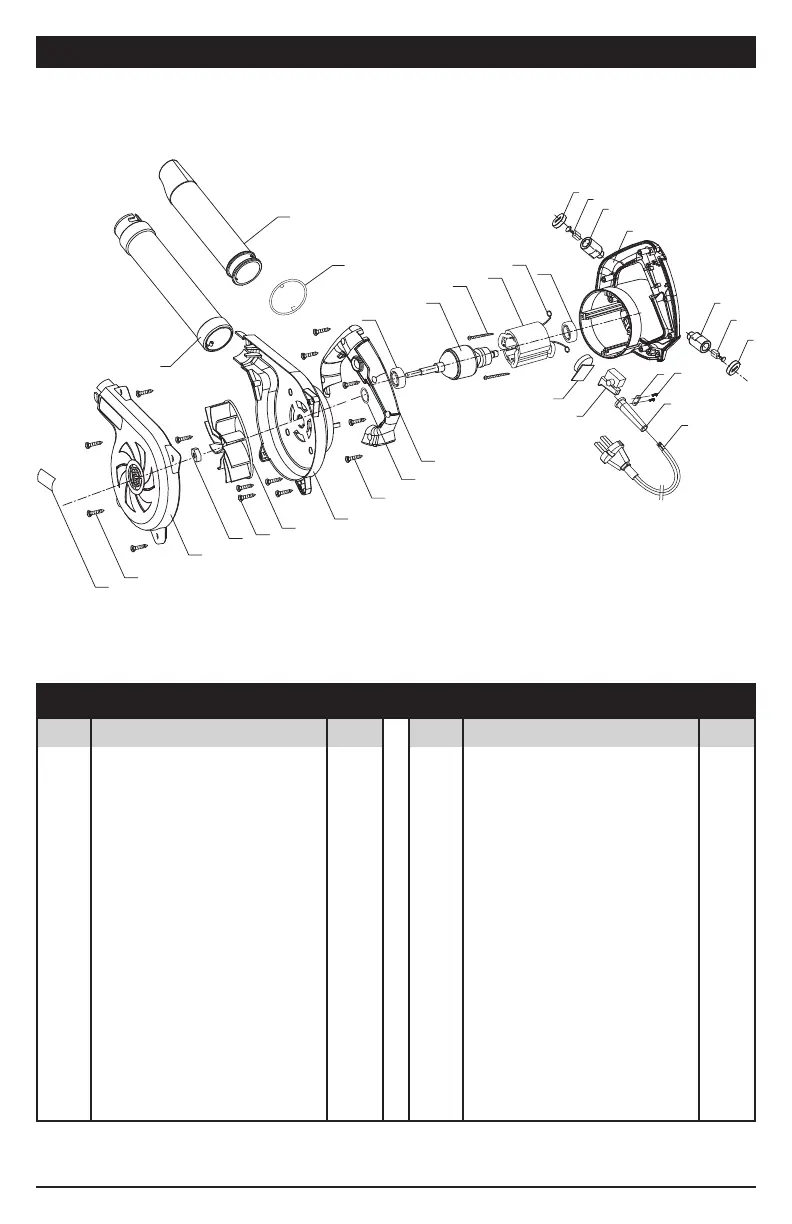

PARTS LISTING
4
27
25
24
23
22
21
20
26
19
18
17
16
15
14
13
12
11
1
2
3
4
2
1
3
5
6
7
8
9
10
29
28
No. Description Qty.
1 Brush holder cover 2
2 Carbon brush 2
3 Brush holder 2
4 Housing 1
5 Screw 2
6 Cable clip 1
7 Cord sleeve 1
8 Cord 1
9 Switch 1
10 Governor 1
11 Bearing 1
12 Spring 2
13 Stator 1
14 Screw 2
15 Armature 1
No. Description Qty.
16 Bearing 1
17 Handle cover 1
18 Flat washer 1
19 Screw 5
20 Down wind plate 1
21 Fan blade 1
22 Screw 4
23 Nut 1
24 Up wind plate 1
25 Screw 5
26 Label plate 1
27 Nozzle 1
28 Nozzle ring 1
29 Nozzle - End 1
