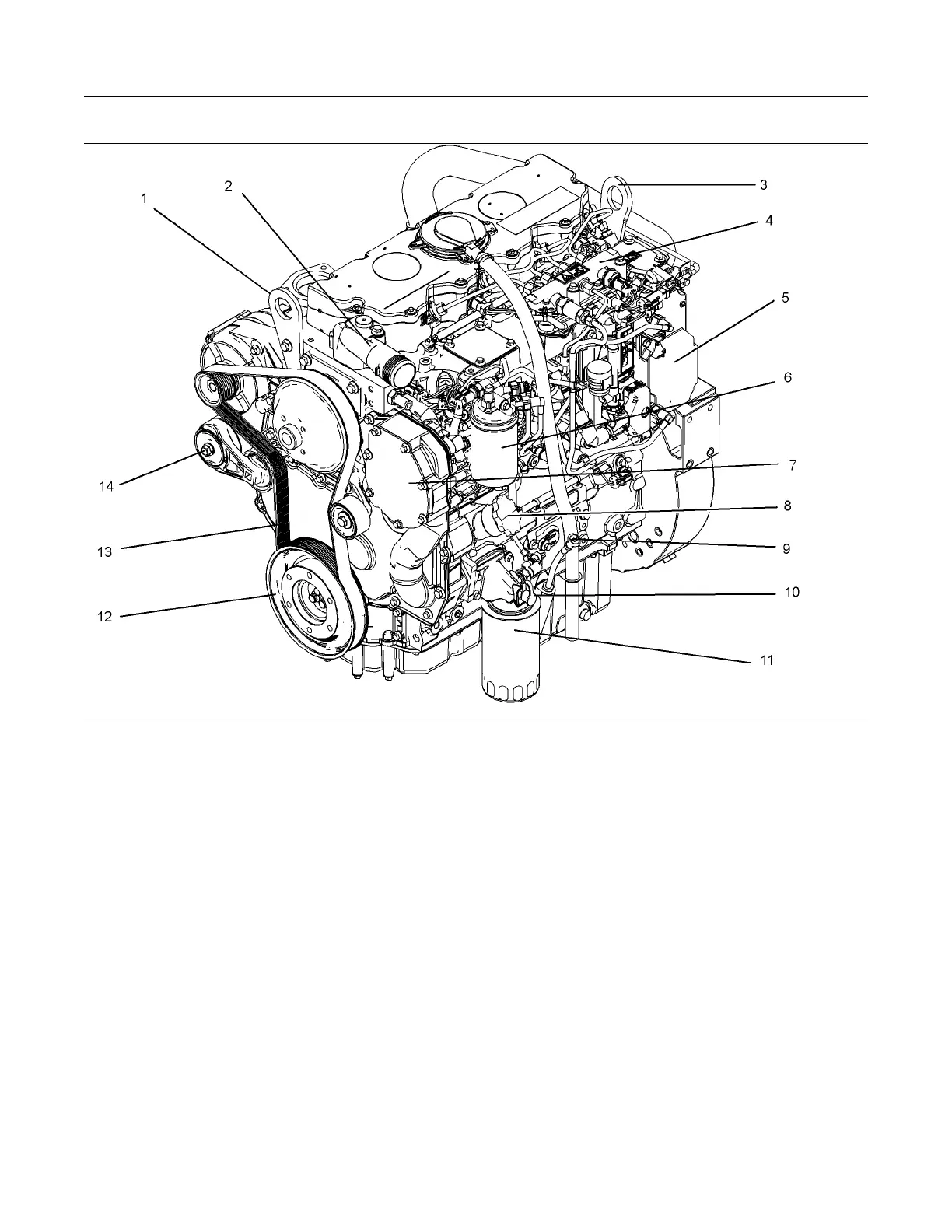

Illustration 18 g01428165
The 1104D NH engine is turbocharged.
Front left engine view
(1) Front lifting eye
(2) Water outlet
(3) Rear lifting eye
(4) Fuel manifold (rail)
(5) Electronic control module
(6) Secondary fuel filter
(7) Water pump
(8) Oil Filler
(9) Oil gauge
(10) Oil sampling valve
(11) Oil filter
(12) Crankshaft pulley
(13) Drive Belt
(14) Belt tensioner
