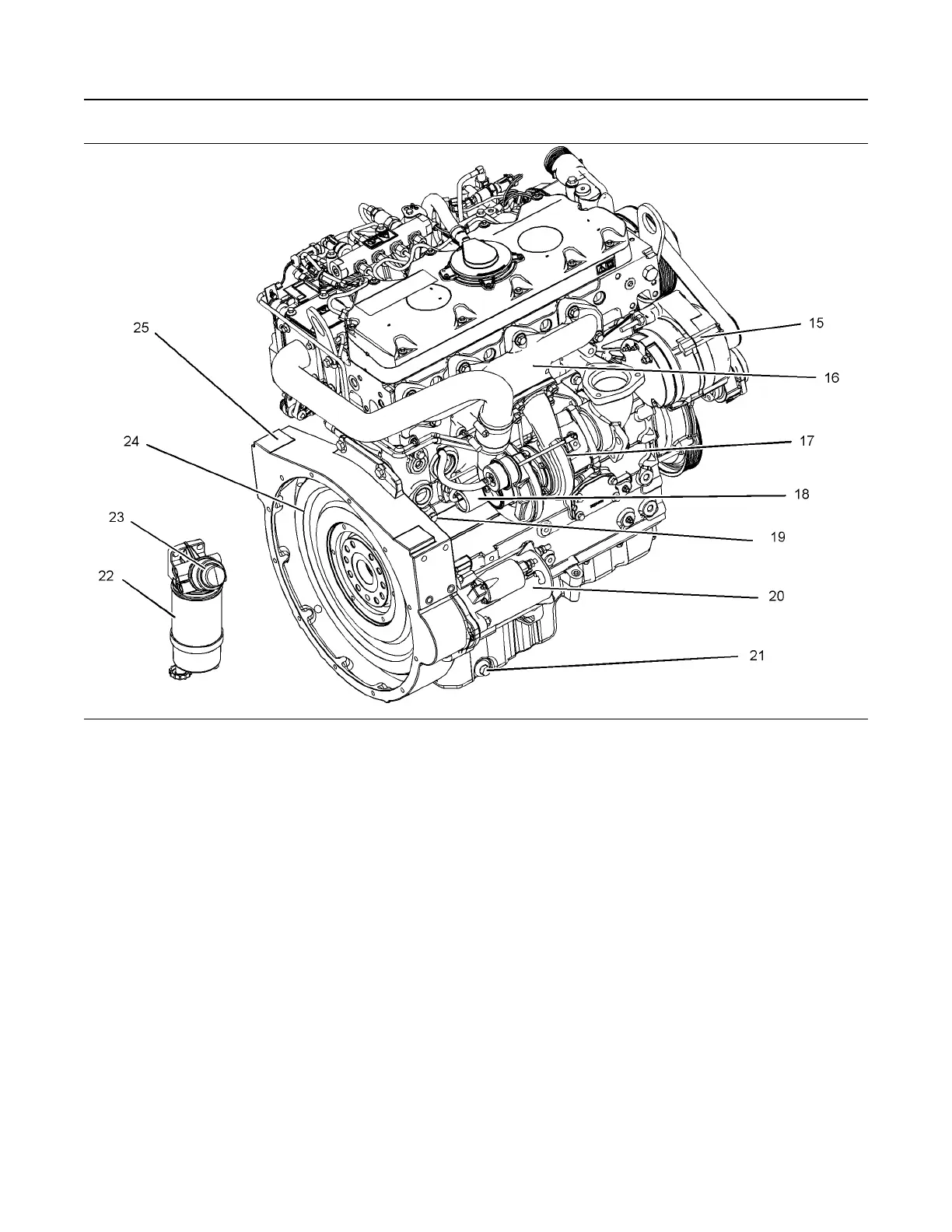

Illustration 19 g01428176
Rear right engine view
(15) Alternator
(16) Exhaust manifold
(17) Turbocharger
(18) Wastegate solenoid
(19) Drain plug or coolant sampling valve
(20) Starting Motor
(21) Oil drain plug
(22) Primary fuel filter
(23) Hand fuel priming pump
(24) Flywheel
(25) Flywheel housing
Note: The primary fuel filter may be mounted off the
engine.
i04925801
Engine Description
The 1104 Electronic Engine models NH and NJ are
designed for the following applications: machine and
industrial mobile equipment. The engine is available
in the following type of aspiration:
• Turbocharged
• Turbocharged aftercooled
• In-line 4 cylinder
Engine Specifications
Note: The front end of the engine is opposite the
flywheel end of the engine. The left and the right
sides of the engine are determined from the flywheel
end. The number 1 cylinder is the front cylinder.
Emissions Control Systems
NH - Direct Diesel Injection, Turbocharger, and
Engine Control Module
NJ - Direct Diesel Injection, Turbocharger with Air to
Air Charge Cooler and Engine Control Module
