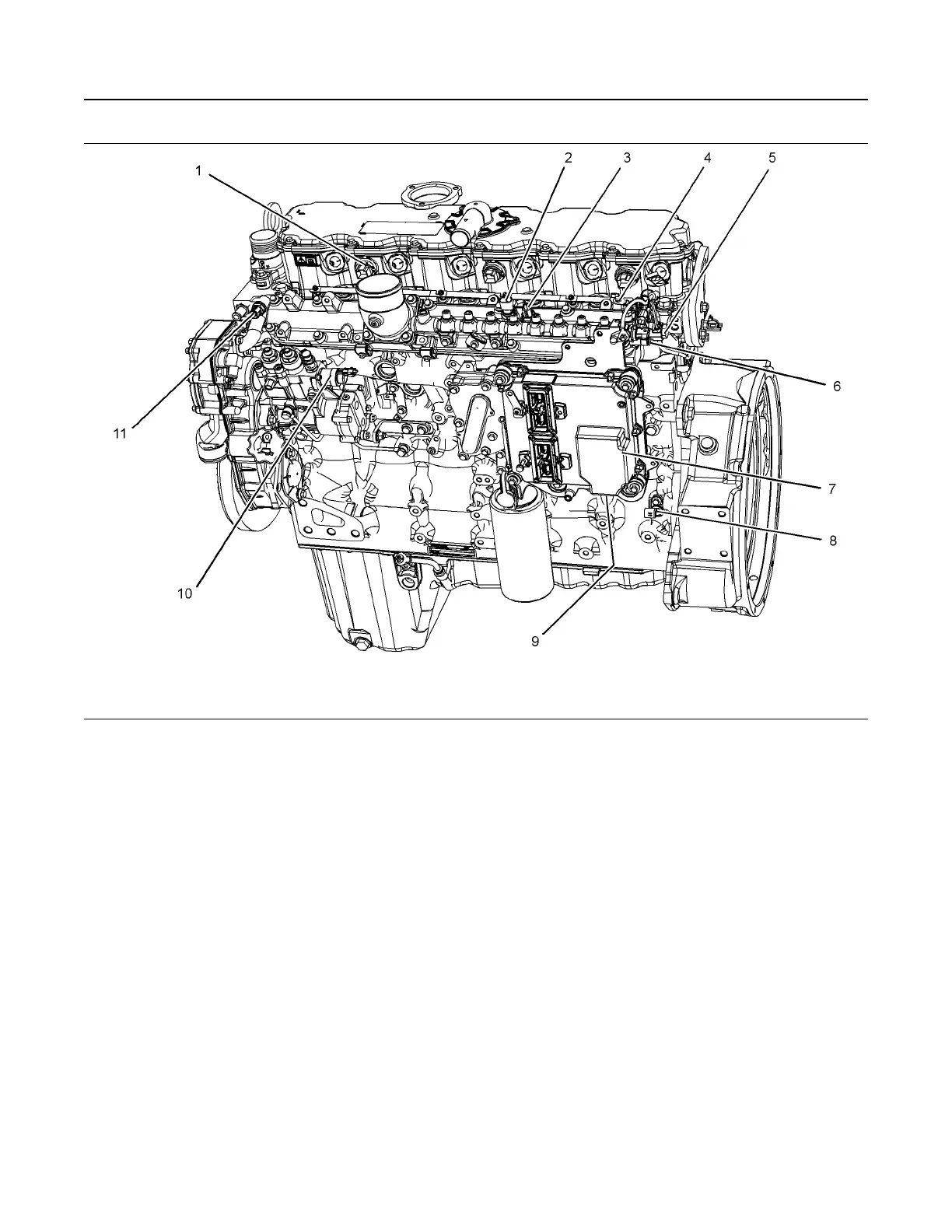

Illustration 26 g03344459
(1) Connector for the injectors
(2) Intake manifold pressure sensor
(3) Intake manifold temperature sensor
(4) Connector for glow plugs
(5) Wastegate regulator
(6) Fuel rail pressure sensor
(7) Electronic control module
(8) Primary speed/timing sensor
(9) Oil pressure sensor
(10) Solenoid for the high-pressure fuel
pump
(11) Coolant temperature sensor
SEBU8731-04
33
Operation Section
Sensors and Electrical Components
