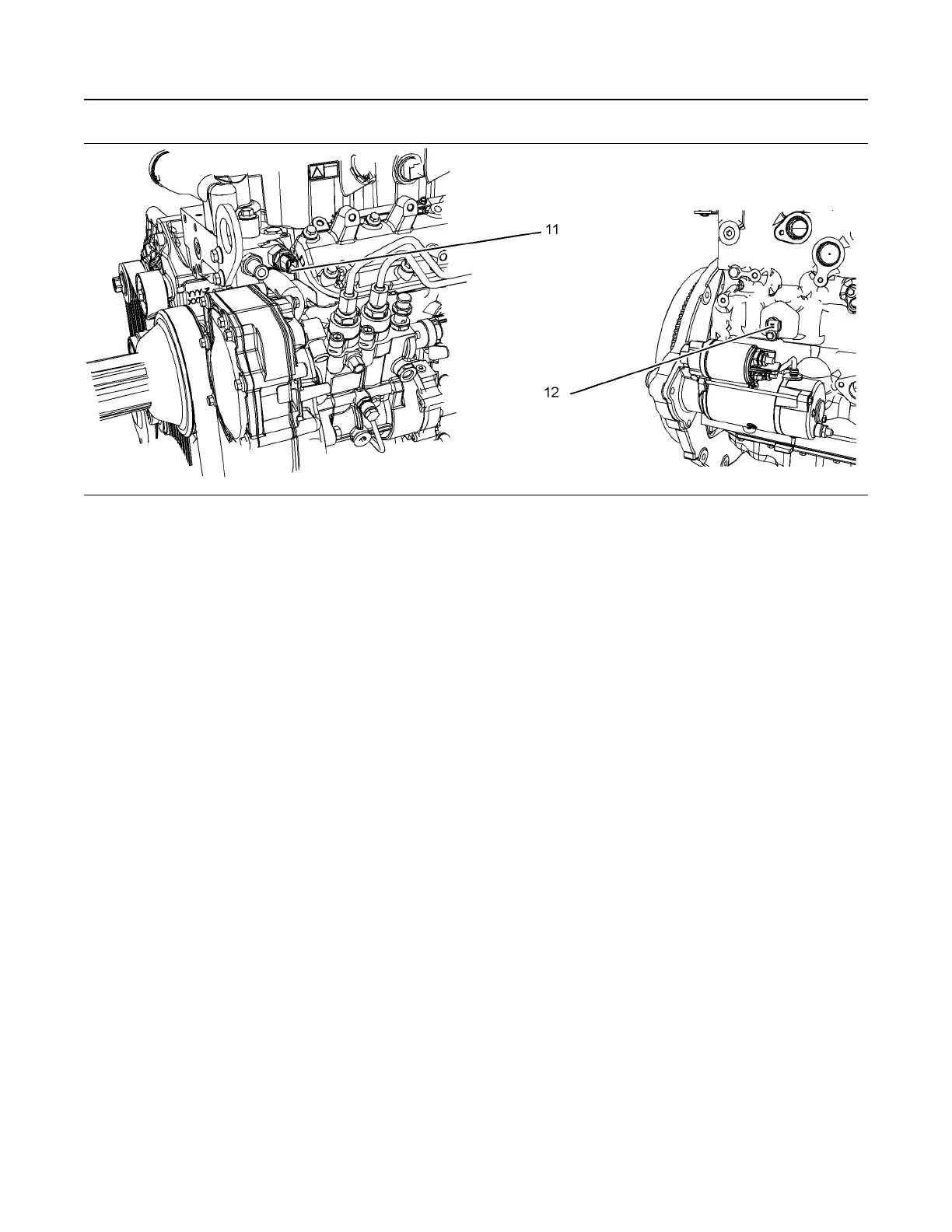

Illustration 30 g03344872
(11) Coolant temperature sensor (12) Secondary speed/timing sensor
• Item (13) the alternator can be 12 V or 24 V
• Item (14) refrigerant compressor is an option only
• Item (15) starting motor can be 12 V or 24 V . The
starting motor can be mounted on the left side or
the right side of the engine
• Item (16) the relay for the electric priming pump is
mounted on the primary filter. The primary fuel
filter will be installed off engine.
SEBU8731-04
37
Operation Section
Sensors and Electrical Components
