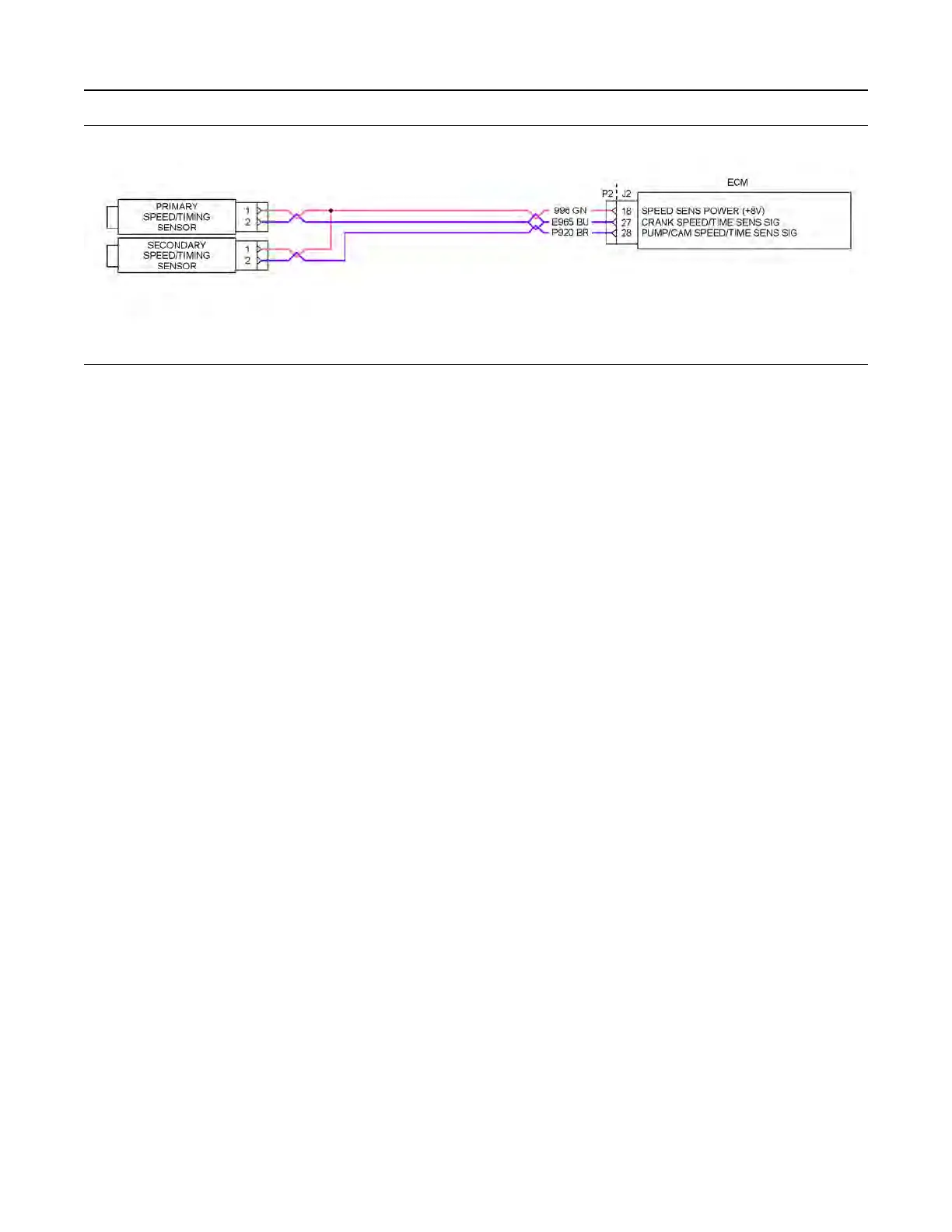

Illustration 58 g03710917
Schematic for speed/timing sensor
When the engine is cranking, the ECM uses the
signal from the speed/timing sensor on the camshaft.
When the engine is running the ECM uses the signal
from the speed/timing sensor on the crankshaft. This
speed/timing sensor is the primary source of the
engine position.
UENR4490-01 65
Engine Operation
