Engine instrumentation
General description
The standard instrument panel is normally supplied as a loose item, but can be fitted to ‘A’ bank air inlet
manifold.

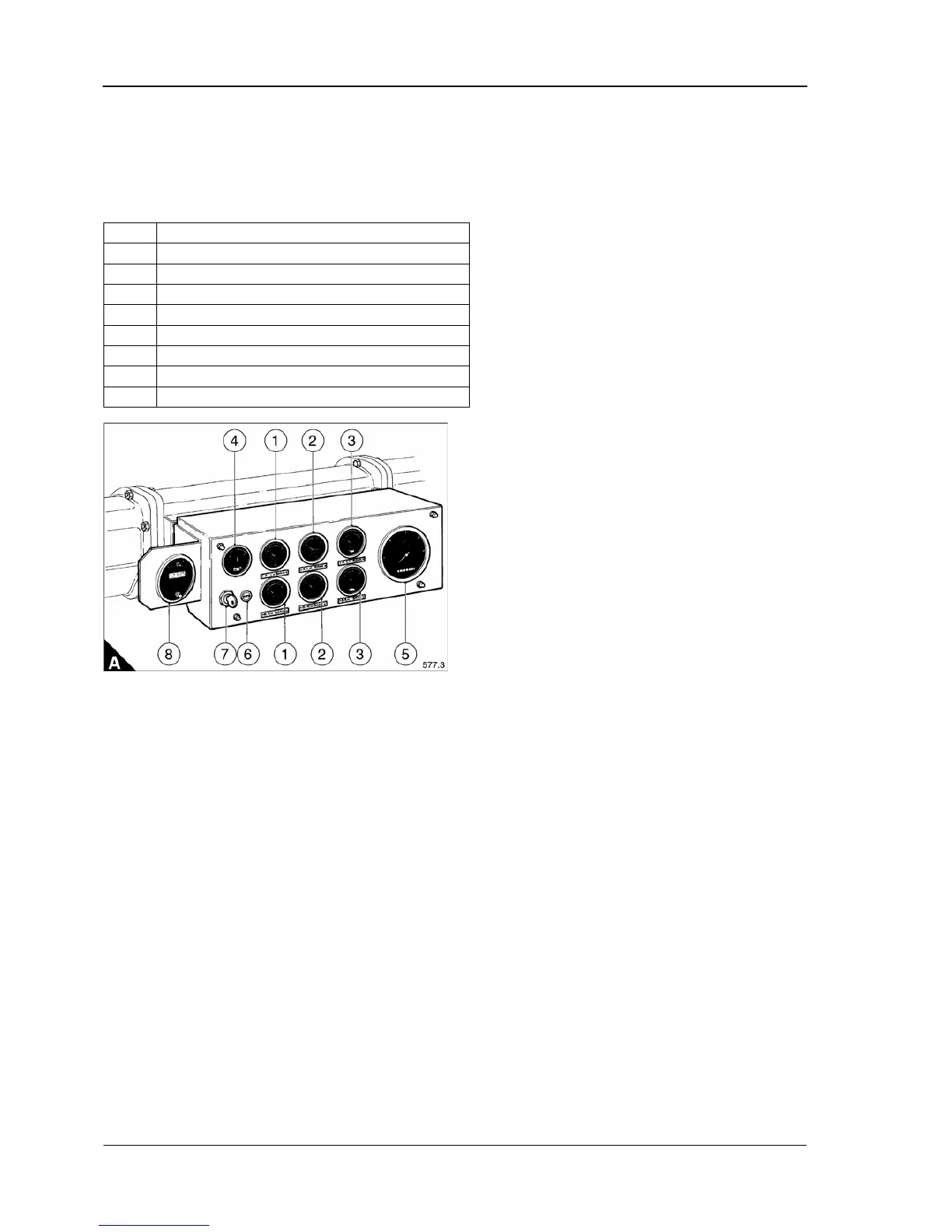

The individual components of the instrument are shown in (A), and listed below:
Item Description
A1 Coolant temperature gauge
A2 Lubricating oil temperature gauge
A3 Lubricating oil pressure gauge
A4 Battery charging rate gauge
A5 RPM and hours run indicator
A6 Fuse holder
A7 Three position keyswitch
A8 Exhaust temperature gauge (when fitted)
