6. Fasten the assembly to the fuel filter base with
setscrew (2).
7. Open the fuel supply valve.
The fuel system will need to be primed after the new
filter is installed. Refer to this Operation and
Maintenance Manual, “Fuel System - Prime” for the
correct procedure.
Fuel Filter with Element
1. Close the fuel supply valve (1).

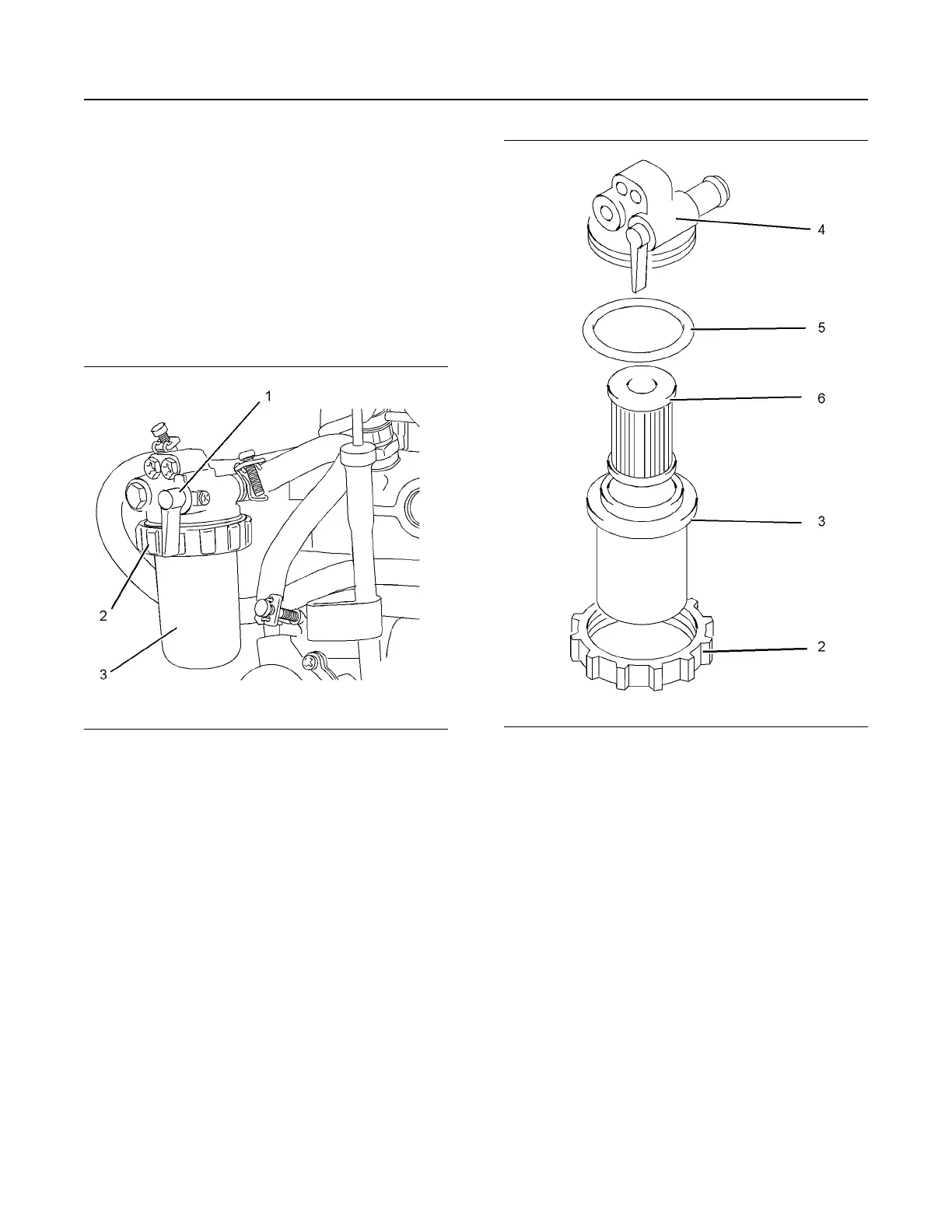

Illustration 66 g01334893
Typical example
2. Clean the outside of the fuel filter assembly.
3. Loosen the locking ring (2).
4. Remove the casing (3) for the filter and the
element. Ensure that any fluid is drained into a
suitable container.
Illustration 67 g01334895
Typical example
Note: Do not fill the fuel filter with fuel. The fuel will
not be filtered and the fuel could be contaminated.
Contaminated fuel can damage your fuel system.
5. Assemble the following items: seal (5), filter
element (6), and casing (3).
6. Install the assembled items to the filter base (4).
7. Install the locking ring (2) to the filter head. Rotate
the locking ring to lock the assembly.
8. Open the fuel supply valve.
The fuel system will need to be primed after the new
filter is installed. Refer to this Operation and
Maintenance Manual, “Fuel System - Prime” for the
correct procedure.
Fuel Filter with Priming Pump
1. Close the fuel supply valve.
2. Clean the outside of the fuel filter assembly.
SEBU8311-09
85
Maintenance Section
Fuel System Filter - Replace
