Perkins 403D-07 - Fuel System Filter - Replace

Note: Do not operate the starting motor for more than
15 seconds. If the engine does not start after 15
seconds, stop and wait for 30 seconds before trying
again.
i08046690
Fuel System Filter - Replace
Fuel leaked or spilled onto hot surfaces or electri-
cal components can cause a fire. To help prevent
possible injury, turn the start switch off when
changing fuel filters or water separator elements.
Clean up fuel spills immediately.
NOTICE
Do not allow dirt to enter the fuel system. Thoroughly
clean the area around a fuel system component that
will be disconnected. Fit a suitable cover over any
disconnected fuel system components.
NOTICE
Care must be taken to ensure that fluids are con-
tained during performance of inspection, mainte-
nance, testing, adjusting and repair of the product.
Be prepared to collect the fluid with suitable contain-
ers before opening any compartment or disassem-
bling any component containing fluids.
Dispose of all fluids according to local regulations
and mandates.

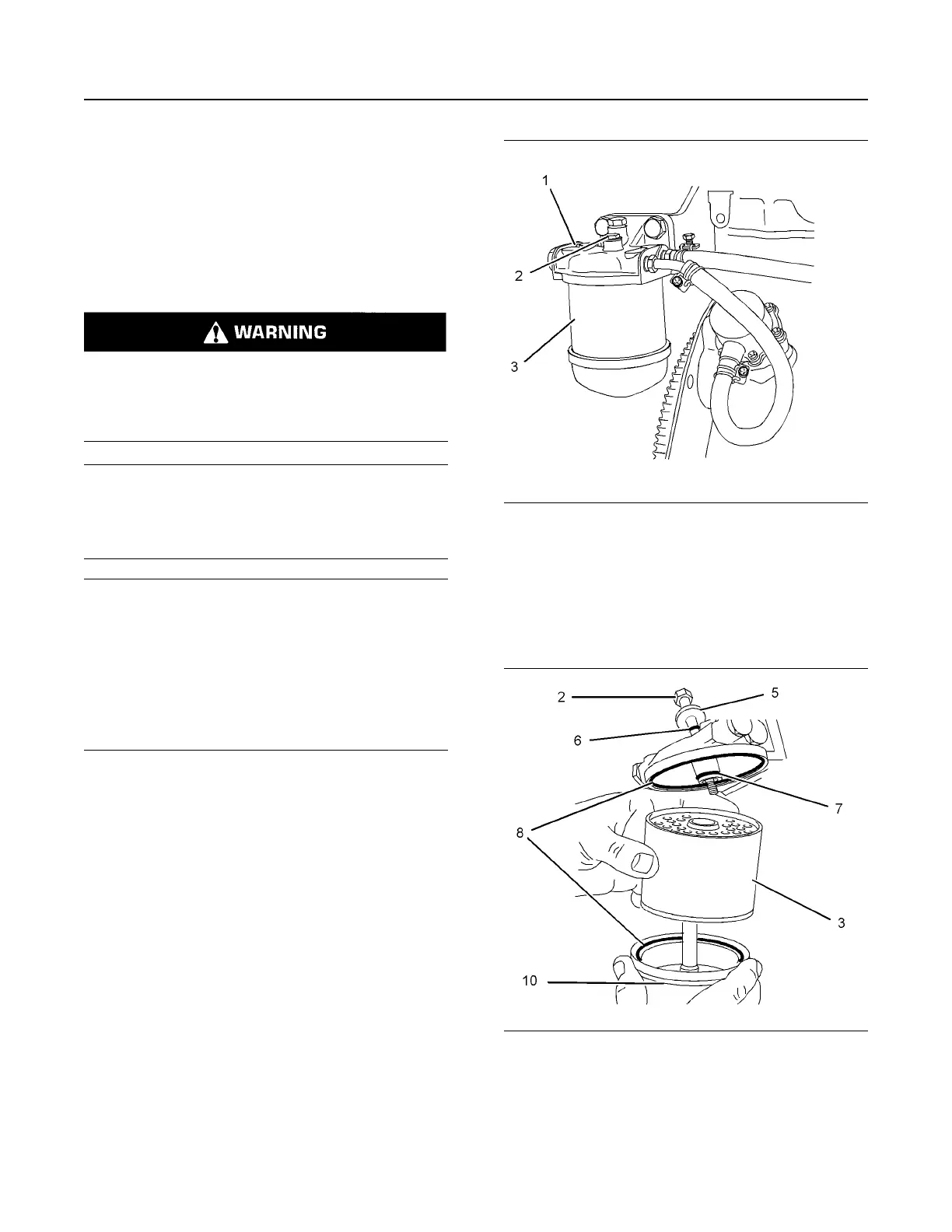

Fuel Filter with Canister
1. Close the fuel supply valve.
Illustration 64 g01307792
Typical example
2. Clean the outside of the fuel filter assembly (1).
3. Remove setscrew (2).
4. Remove the canister (3). Ensure that any fluid is
drained into a suitable container.
Illustration 65 g01334877
Typical example
5. Assemble the following items: seals (8), seal (7),
canister (3), and bowl (10). Place washer (5) and
seal (6) on setscrew (2).
84
SEBU8311-09
Maintenance Section
Fuel System Filter - Replace
