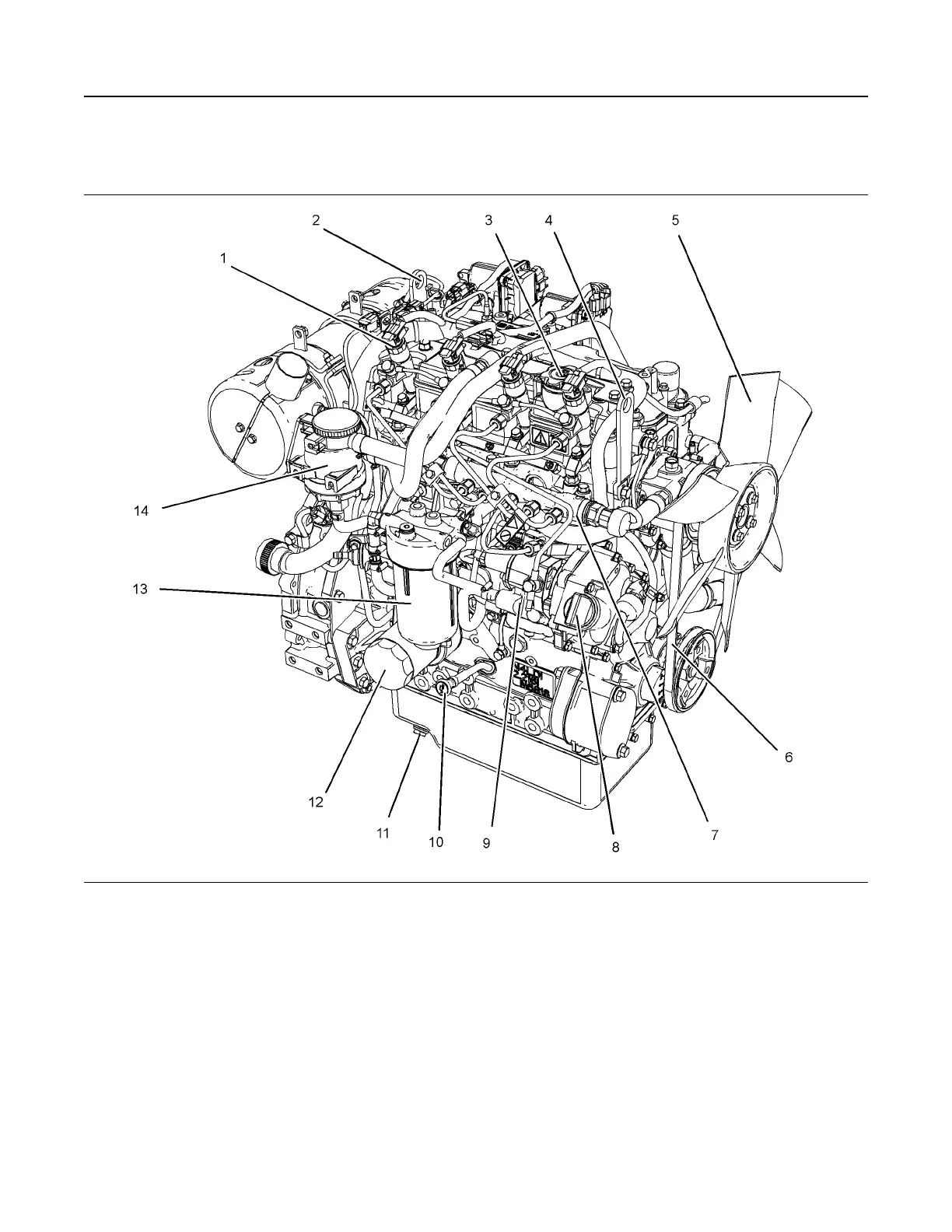

Four Cylinder Engine
Illustration 20 g06103579
Typical example
(1) Electronic unit injector
(2) Rear lifting eye
(3) Top oil fill cap
(4) Front lifting eye
(5) Fan
(6) Alternator and fan belt
(7) Fuel manifold (Fuel rail)
(8) Lower oil filler cap
(9) High-pressure fuel pump
(10) Oil gauge (Dipstick)
(11) Oil drain plug
(12) Oil filter
(13) Secondary fuel filter
(14) Breather
SEBU9075-03
25
Product Information Section
Model View Illustrations
