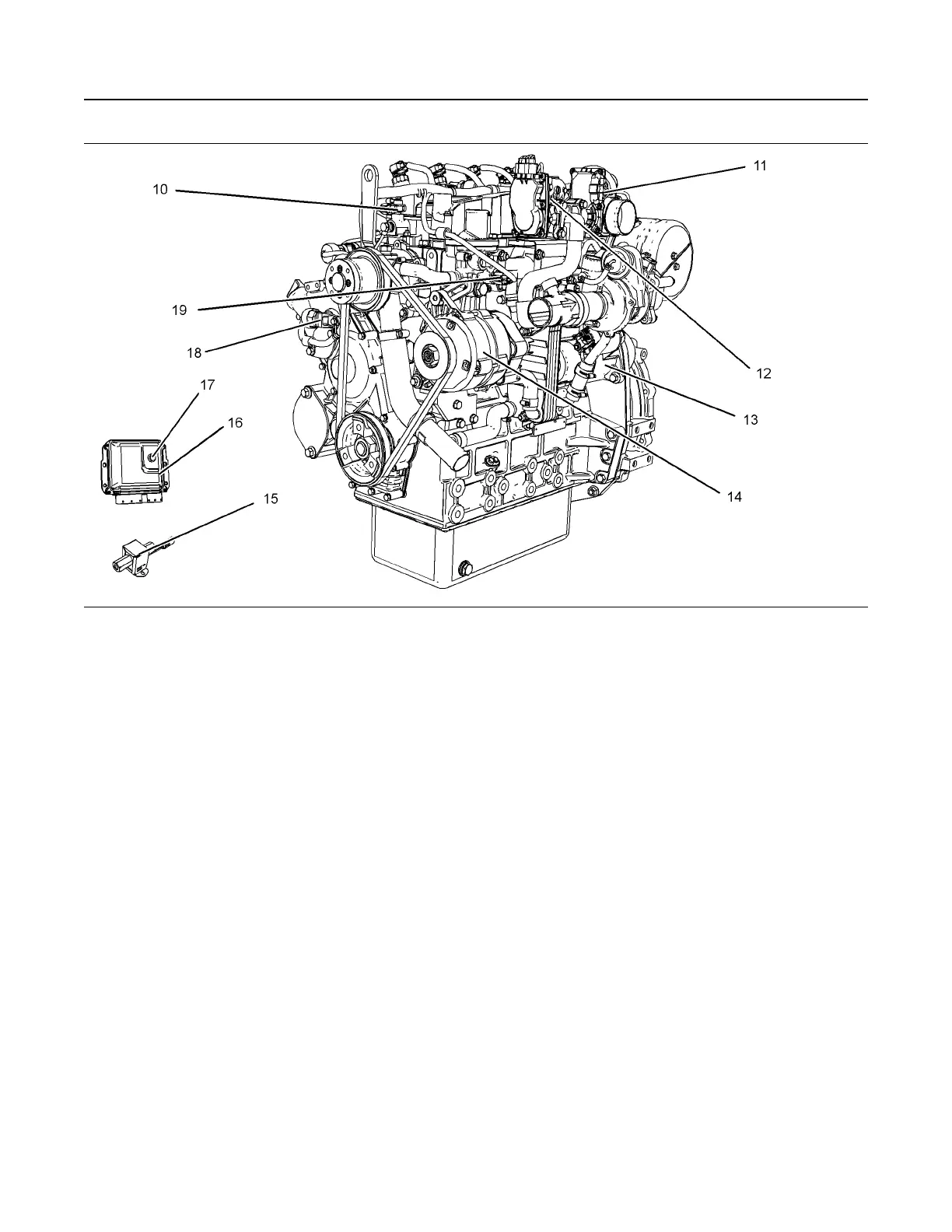

Illustration 35 g06013027
Typical example
(10) Oil pressure switch
(11) Throttle control valve
(12) NRS control vale
(13) Starting motor
(14) Alternator
(15) Low-pressure fuel pump/ priming pump
(16) Electronic control module
(17) Vent for atmospheric pressure sensor
(18) Camshaft speed/timing sensor
(19) Coolant temperature sensor
Note: Some components may not be installed on
some applications. The DOC may not be equipped
with temperature sensors. The throttle valve may not
be installed.
