Perkins 100 Series: 103-06/103-09/103-10
Perama: M25/M30

Questions and Answers

  • M
    Matthew DickersonAug 13, 2025
    How to check for a short circuit in a Perkins Perama M30 Engine glow plug?
    • M
      mathewsaprilAug 13, 2025
      To check for a short circuit in a Perkins Engine glow plug, remove the connector and measure the resistance of each plug terminal and earth. A resistance of 0 indicates a short circuit.
  • T
    Travis WebbAug 17, 2025
    How to check Perkins Perama M30 Engine heat wire disconnection?
    • Z
      zharperAug 17, 2025
      To check for heat wire disconnection in a Perkins Engine, check/remove the connector and check the continuity between each plug terminal and body earth. If continuity is not observed, it indicates disconnection, and the heat wire should be replaced.
  • M
    Mr. Jacob SheltonAug 21, 2025
    Why does my Perkins Engine starting switch not stop the motor when it's off?
    • A
      Andrew TaylorAug 21, 2025
      If the starting switch does not stop the Perkins Engine motor when it is turned off, the switch may be faulty and needs to be replaced.
  • G
    gnewmanAug 25, 2025
    What to do if my Perkins Perama M30 motor rotates at full speed before the pinion engages with the ring gear?
    • J
      Joseph SmithAug 25, 2025
      If the Perkins Engine motor rotates at full speed before the pinion engages with the ring gear, the pinion sleeve spring may be fatigued and needs to be replaced.
  • J
    Joseph HansenAug 28, 2025
    What to do if the Perkins Engine pinion does not move when the starting switch is on?
    • A
      Alicia DavisAug 28, 2025
      If the Perkins Engine pinion does not move when the starting switch is on, check the series coil for disconnection by inspecting the continuity between the magnetic switch S terminal and M terminal. If no continuity is indicated, it shows disconnection and the coil should be replaced.
  • V
    Victoria DavisSep 1, 2025
    What to do if there is magnetic switch disconnection in Perkins Perama M30 Engine?
    • U
      ugreenSep 1, 2025
      To address magnetic switch disconnection in a Perkins Engine, check the shunt coil for disconnection. Inspect the continuity between the magnetic switch S terminal and coil case (metal part). If continuity is not indicated, it shows disconnection. Then replace the switch with a new one.
  • D
    Daniel MoralesSep 5, 2025
    How to resolve insulation issues between the brush holder and holder base in my Perkins Perama M30?
    • C
      Christopher LeeSep 5, 2025
      To resolve insulation issues between the brush holder (0 side) and holder base ((D side... earth) in your Perkins Engine, check the insulation. If continuity is indicated, it shows insufficient insulation. Then replace the brush with a new one.
  • J
    Jonathan ByrdSep 9, 2025
    How to fix movement of the brush in Perkins Perama M30?
    • B
      benjaminheatherSep 9, 2025
      Check the movement of the brush. When the brush does not move smoothly, check the bend of the brush holder and stain on the sliding surface of the brush holder, correct and clean.

Summary

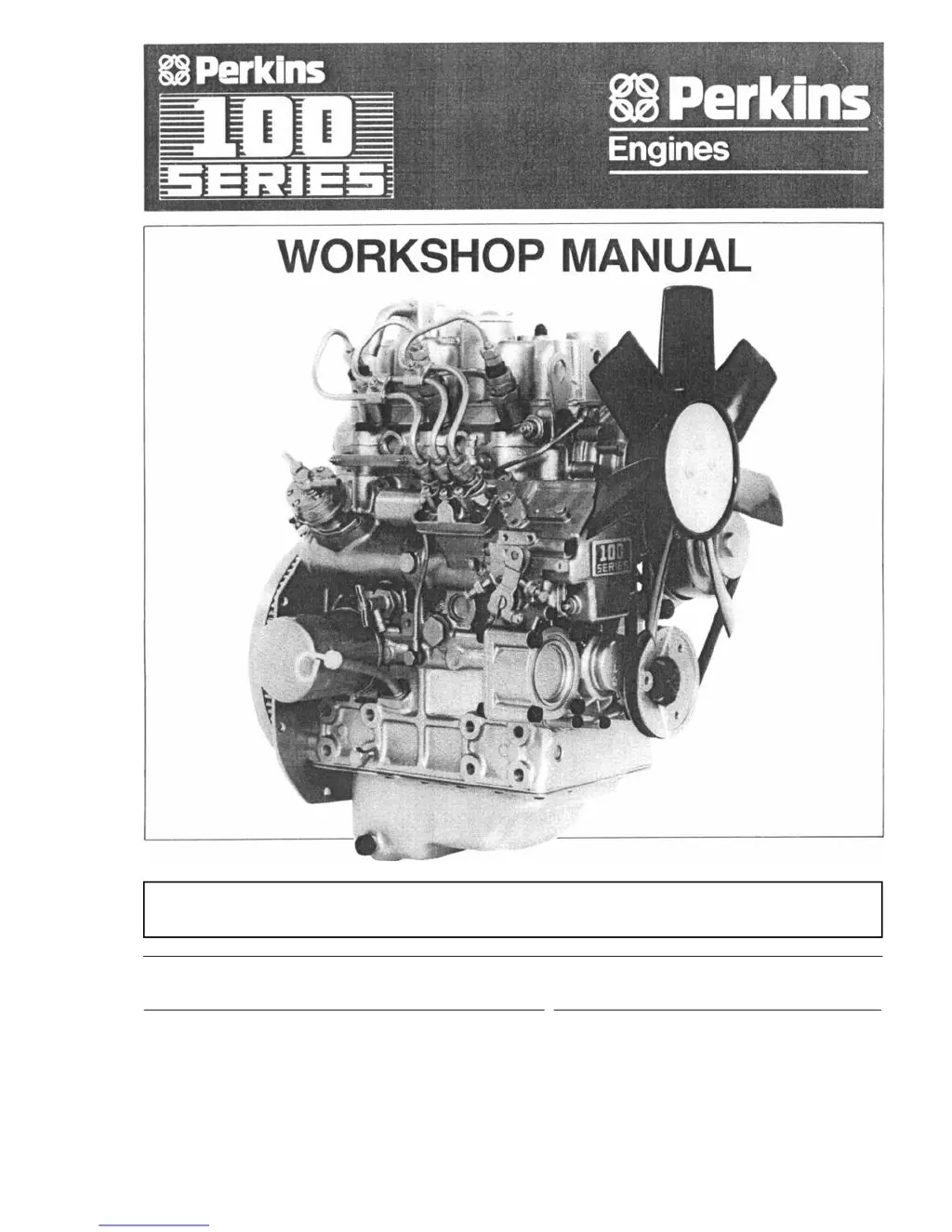

Perkins 100 Series Workshop Manual

Abbreviations and Codes

Foreword

Safety Precautions

Engine Diagrams

Engine Cross Sectional Views

Illustrates the internal workings and components of the engine in cross-section.

Section I: Engine Description

General Engine Overview

Provides a general overview of the Perkins 100 Series and Perama M25/M30 engines.

Component Assembly Details

Details the construction and materials of key engine components.

Section II: General Engine Data

Recommended Engine Fluids and Specifications

Specifies recommended fluids for coolant, fuel, and lubricating oil.

Section III: Dismantling Sequence

Major Component Removal Procedures

Covers removal of major components like alternator, fan, fuel system, water pump, rocker assembly.

Crankshaft and Related Component Removal

Details removal of crankshaft, bearings, flywheel, and back plate.

Section IV: Component Disassembly, Inspection, and Clearances

Valve System Inspection and Clearances

Covers inspection of rocker arms, cylinder head, valves, guides, and seats.

Piston, Rings, and Crankshaft Inspection

Procedures for inspecting cylinder bores, pistons, rings, and crankshaft components.

Bearing and Bushing Inspection

Inspection of bearing holders, centre bearings, and crankshaft journals.

Component Reassembly and Adjustment

General reassembly instructions and specific steps for piston/rod and bearings.

Camshaft, Oil Pump, and Gear Inspection;Assembly

Inspection and assembly of camshaft, oil pump, and timing gears.

Section VI: Electrical Systems

Alternator System Details

Details alternator specifications, performance, tests, and maintenance.

Fuel Filter, Feed Pump, Governor, and Nozzle;Holder

Details fuel filter, feed pump, governor, and nozzle/holder procedures.

Starter Motor System Details

Covers starter motor operation, specifications, and troubleshooting.

Glow Plug, Thermoswitch, and Oil Pressure Switch

Specifications and troubleshooting for glow plugs, thermoswitch, and oil pressure switch.

Wiring Diagrams

Perama Engine Wiring Diagrams

Wiring diagram for the Perama engine with different alternator types.

Circuit Resistance and Model-Specific Diagrams

Electrical diagram showing component connections and circuit resistance.

Section VII: Troubleshooting

Engine Starting and Running Problems

Addresses engine not starting, irregular running, and stopping issues.

Overheating, Smoke, Charging, and Oil Lamp Issues

Covers overheating, smoke, faulty charging, and oil lamp troubleshooting.

Starter Motor Failure Troubleshooting

Lists causes and remedies for starter motor failure.

Section VIII: Service Standards

Engine Component Service Standards

Covers standards for cylinder head, block, piston, rings, crankshaft, and connecting rod.

Valve, Camshaft, and Lubrication System Standards

Service standards for valve train, camshaft, oil pump, and fuel system.

Electrical and Cooling System Standards

Service standards for electrical systems, starter, alternator, regulator, and cooling.

103-06 Specific Service Standards

Technical specifications for the 103-06 model across various systems.

Section IX: Recommended Torque Specifications

Torque Tables by Component and Model

Torque specifications for different engine models.

Torque Unit Conversion Tables

Tables for converting torque units.

Section X: Perama Extra Service Items

Gearbox and Water Pump Service

Lubrication and checks for Hurth gearbox and raw water pump.

Heat Exchanger and Engine Preservation

Cleaning heat exchanger and preserving the engine for storage.

Alternator Diagnosis and Service

Diagnostic procedures and removal/fitting instructions for the alternator.

Section XI: Conversion Formulas and Torque Tables

Tightening Torque Tables

Tables listing tightening torques for various screw sizes.

Torque Unit Conversion Tables

Tables for converting torque units.

Perkins Perama M30 Specifications

General IconGeneral
Engine ModelPerkins Perama M30
Number of Cylinders3
Compression Ratio22.5:1
AspirationNaturally aspirated
Fuel TypeDiesel
Bore x Stroke84 mm x 90 mm
Power Output22.4 kW (30 hp) at 3000 rpm
Cooling SystemLiquid-cooled
