06

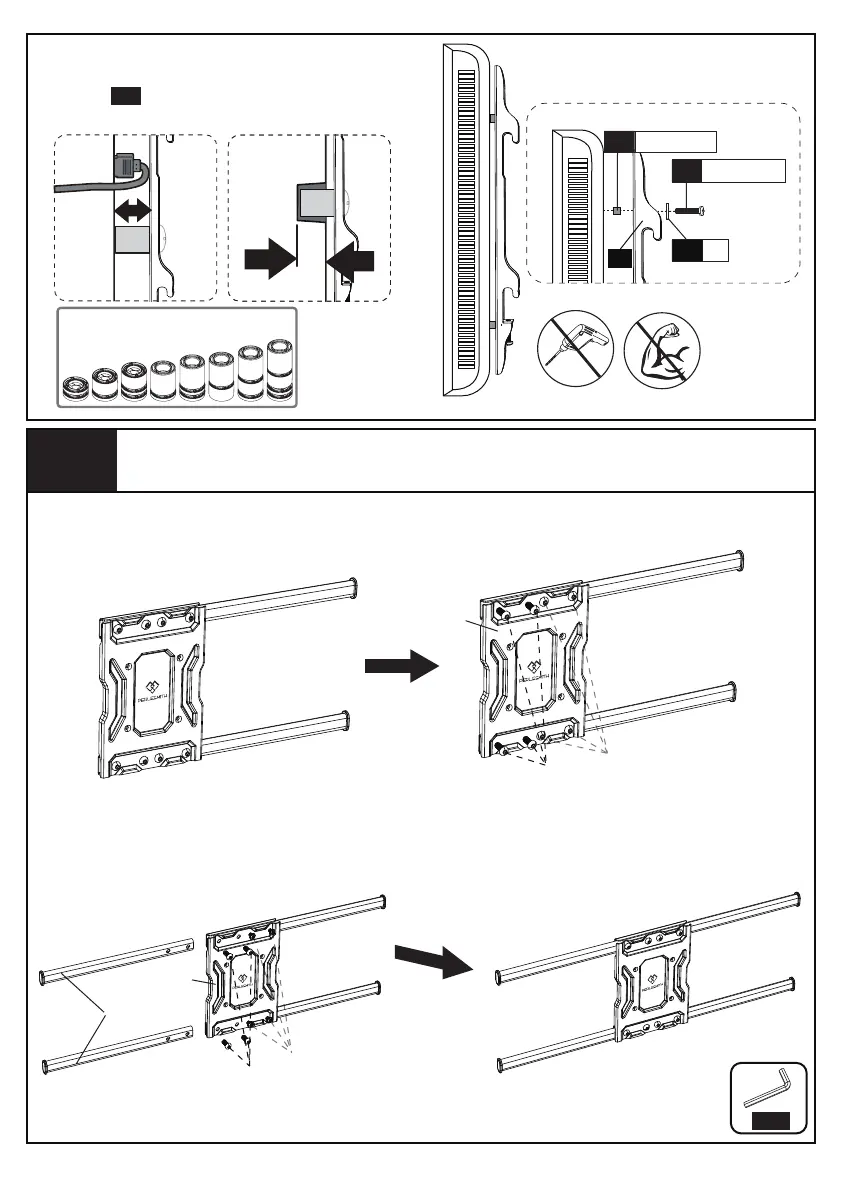

Step 2
Secure Front Support Assembly to the Arm Assemble/Wall
Plate
Option D
For cable interference or inset holes, use
spacers to create extra space between the
TV and TV brackets
08
Alternate Spacer Setups
07
B
D2/E2/E3
09
C1/C2/C3
08
2-1 Remove the 4 pcs pre-assembed bolts [B3] from front support [01] and
keep the bolts [B3] for the use in 2-2, then slightly loosen the 4 pcs
preassembled bolts [B4]
2-2 Insert the arm extensions [03] into the front support [01]. Then tighten the
bolts [B3] and [B4] to secure arm extensions [03] to front support [01].
04
06
03
B3
B3
B4
B4
01
01
To Next Page
