WARNING:
●Avoid potential personal injury or property damage! DO NOT over-tighten the lag
screws [A1]. Tighten the lag screws [A1] only until they are pulled firmly against the
arm assembly/wall plate [01B].
●Ensure the arm assembly/wall plate [01B] is securely fastened to
the wall before continuing on to the next step.
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Mount the arm assembly/wall plate directly onto the concrete surface
● Minimum solid concrete thickness: 203 mm (8 in.)
● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)
Wall
Anchor
A2
Step
4B

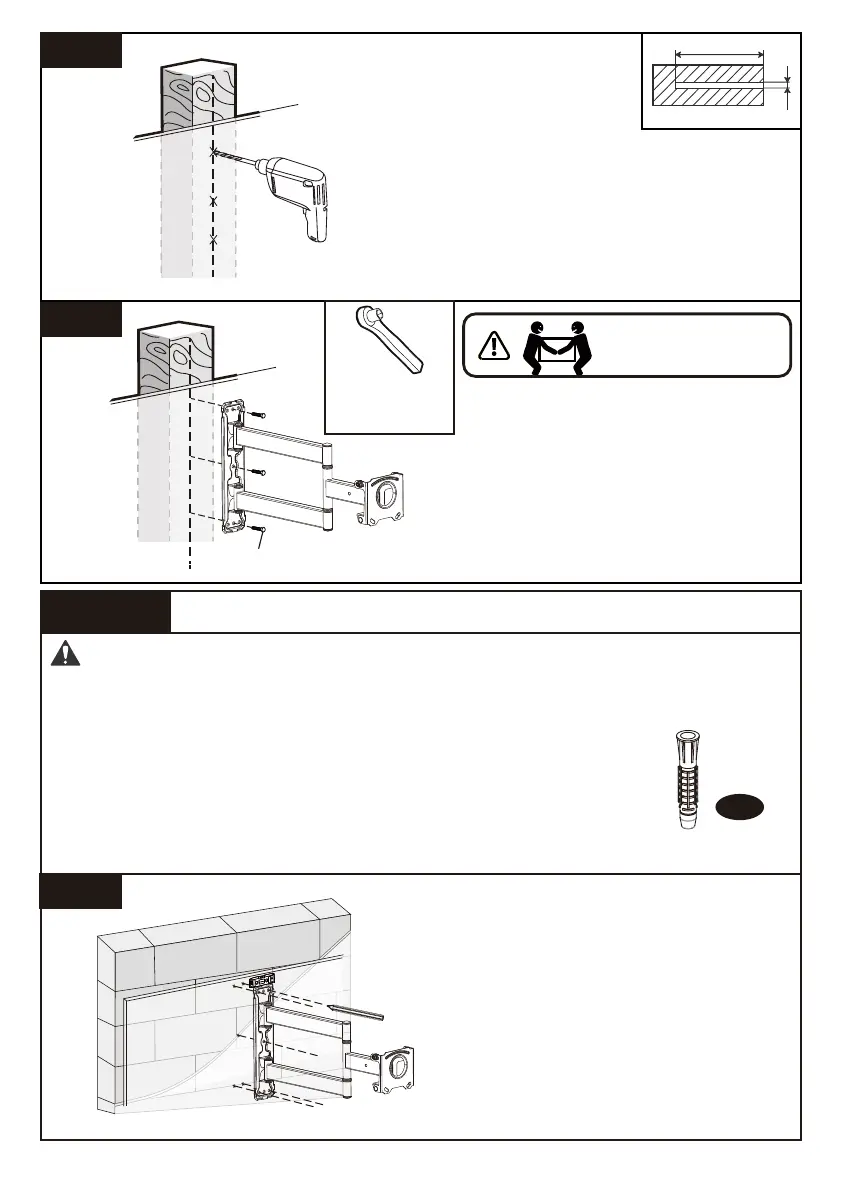

Solid Concrete or Concrete Block Option
4B-1
4A-3
4A-4
ø5/32 in.(4 mm)
2 3/4 in.(70mm)
Drill 3 pilot holes using a 5/32 in.(4 mm)
diameter drill bit. Make sure the depth is
not less than 2 3/4 in.(70mm).
3/8in.(10mm)
Socket Wrench
(Not lncluded)
Install the arm arm assembly/wall
plate [01B] using lag screws [A1].
Tighten the lag screws [A1] only until
they are pulled firmly against the wall
plate.
HEAVY! You may need
assistance with this step.
A1
Position arm assembly/wall
plate [01B] at your desired
height, level the arm
assembly/wall plate and
mark the pilot hole locations.
07
