Perlick 4404 User Manual

**Requires four wires (2 hot, 1 neutral and 1 ground).
MODEL NOS. 4404 4410 4414 4414-230 4420

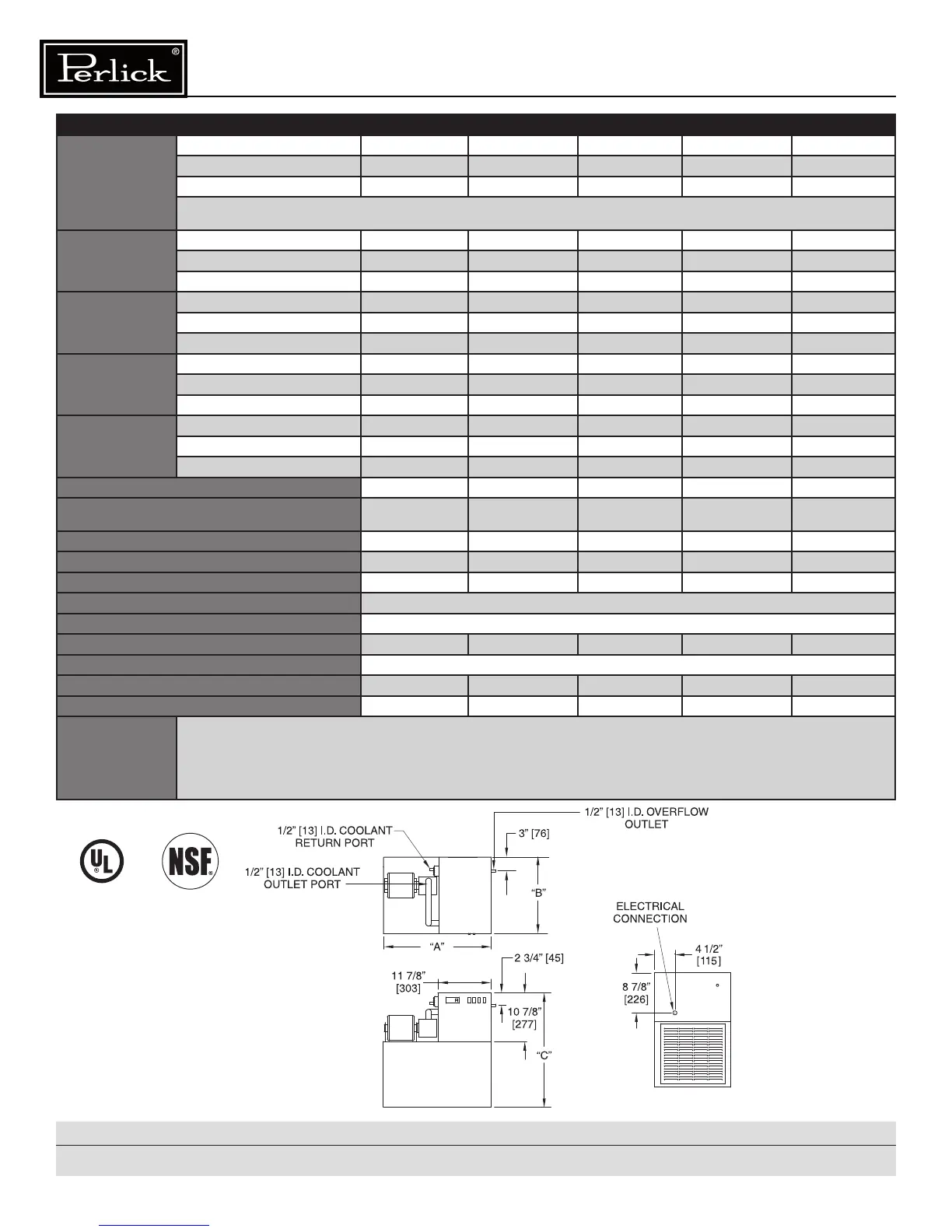

DIMENSIONS:
EXTERIOR (mm)
Length “A” 24
1/4
” (616) 24
1/4
” (616) 24
1/4
” (616) 26
3/4
” (679) 26
3/4
” (679)
Width “B” 17
1/4
” (438) 17
1/4
” (438) 17
1/4
” (438) 20
1/4
” (519) 20
1/4
” (519)
Height “C” 25
1/2
” (648) 25
1/2
” (648) 25
1/2
” (648) 31” (782) 31” (782)
A minimum of six inches of clearance should be allowed around the entire unit for proper performance.
Additional clearance should be considered for above the unit and in front of the unit for servicability.
ELECTRICAL Voltage 120 V 120 V 120 V 208/230 V** 208/230 V**
Frequency 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz
Phase 1 Ø 1 Ø 1 Ø 1 Ø 1 Ø
SINGLE PUMP RLA (Rated Load Amps) 15.1 15.7 17.1 10.5 21.9
MCA (Min. Circuit Ampacity) 17.2 18.0 19.6 12.2 26.4
MOCP (Max. over Current Protection) 25 25 25 15 40.0
DUAL PUMPS
(add -2 to model #)
RLA (Rated Load Amps) N/A 21.8 22.7 13.3 24.7
MCA (Min. Circuit Ampacity) N/A 24.1 25.2 15.0 29.2
MOCP (Max. over Current Protection) N/A 30.0 35.0 20.0 45.0
TRIPLE PUMPS
(add -3 to model #)
RLA (Rated Load Amps) N/A N/A N/A 16.1 27.5
MCA (Min. Circuit Ampacity) N/A N/A N/A 17.8 32.0
MOCP (Max. over Current Protection) N/A N/A N/A 20.0 50.0
COMPRESSOR 1/3 HP 1/2 HP 3/4 HP 3/4 HP 1.5 HP
EVAPORATOR RATING
@ 20°F (BTUH)
3420 3800 6000 6300 12000
HEAT REJECTION (MAX) 4080 6080 9600 10080 19200
REFRIGERANT R-134a R-134a R-134a R-134a R-134a
SHIPPING WEIGHT LBS (kg) 140 (64) 153 (69) 180 (82) 205 (93) 255 (116)
CABINET Stainless Steel
CIRCULATING PUMP 100 GPH/130 PSIG
RESERVOIR CAPACITY 1.75 gal 1.75 gal 1.75 gal 1.75 gal 1.75 gal
REFRIGERATION Constant Pressure Expansion Valve, Condensing Unit with Service Valves
REFRIGERANT CHARGE (grams) 14.0 oz/397 g 12.0 oz/340 g 9.5 oz/269 g 11.0 oz/312 g 16.0 oz/453 g
GLYCOL CONCENTRATION 30% 30% 30% 30% 30%
OPTIONAL
ACCESSORIES
4430 115V pump kit for 4410 Power Pak (eld installed) 61790 Dual Tier Rack
4431 115V pump kit for 4414 Power Pak (eld installed) 61791+1 Triple Tier Rack
4432 208/230V pump kit for 4414/230V and 4420 Power Paks (eld installed) 61792+2 Quad Tier Rack
4435 BLM Receptacle C22296A-20 Cord Kit for 120V single pump Power Paks only (Field installed)
4408SS Wall Bracket for 4404 & 4410 only
C21499BSS Stainless Steel Table Stand
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without prior notice
