Perlick 4404 User Manual

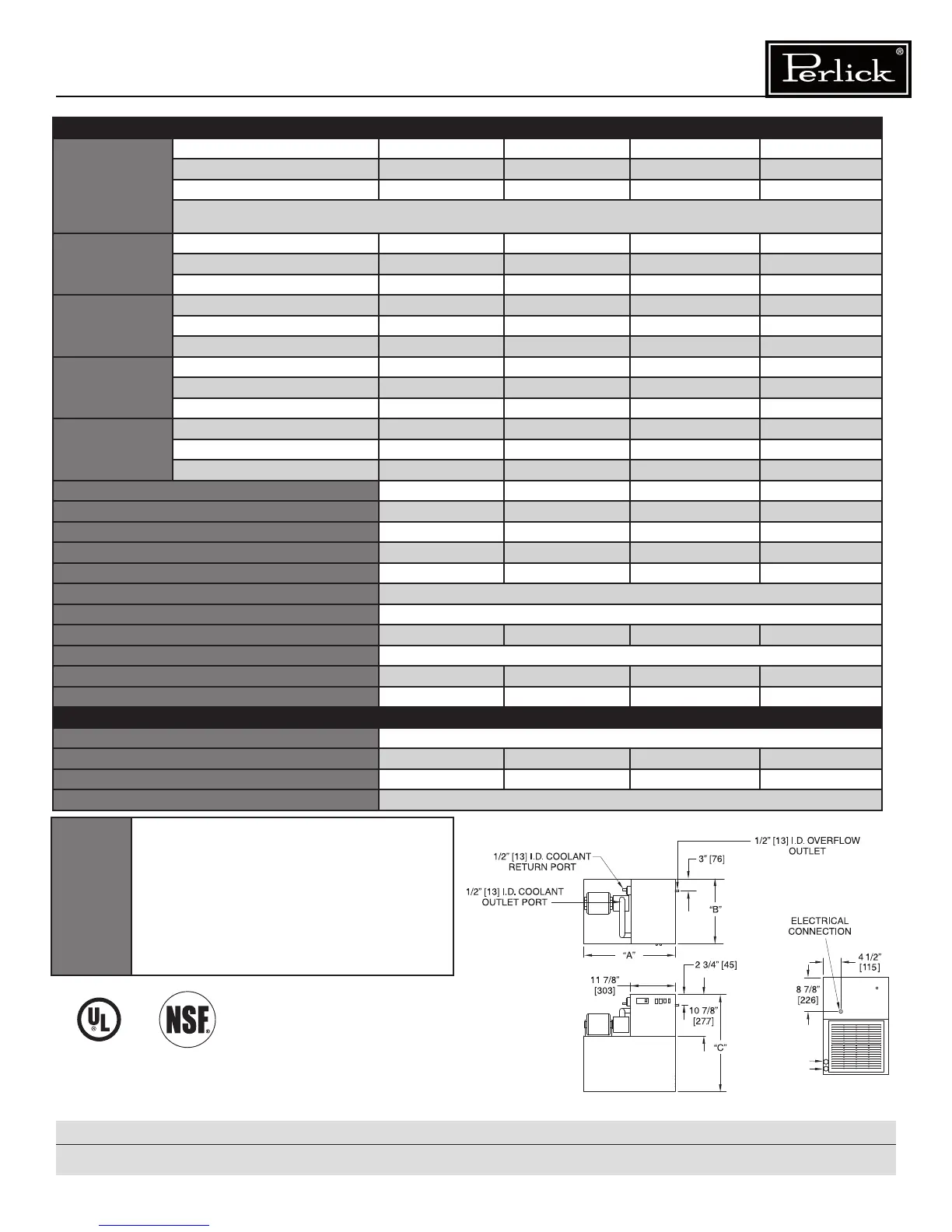

MODEL NOS. 4404W 4410W 4414W 4420W
DIMENSIONS:
EXTERIOR (mm)
Length “A” 24
1/4
” (616) 24
1/4
” (616) 26
3/4
” (679) 26
3/4
” (679)
Width “B” 17
1/4
” (438) 17
1/4
” (438) 20
1/4
” (519) 20
1/4
” (519)
Height “C” 25
1/2
” (648) 25
1/2
” (648) 31” (782) 31” (782)
A minimum of six inches of clearance should be allowed around the entire unit for proper performance.
Additional clearance should be considered for above the unit and in front of the unit for servicability.
ELECTRICAL Voltage 120 V 120 V 120 V 208/230 V***
Frequency 60 Hz 60 Hz 60 Hz 60 Hz
Phase 1 Ø 1 Ø 1 Ø 1 Ø
SINGLE PUMP RLA (Rated Load Amps) 15.4 17.1 17.4 20.8
MCA (Min. Circuit Ampacity) 17.7 19.9 20.4 25.3
MOCP (Max. over Current Protection) 25.0 30.0 30.0 40.0
DUAL PUMPS
(add -2 to model #)
RLA (Rated Load Amps) 21.5 23.2 23.0 23.6
MCA (Min. Circuit Ampacity) 23.8 26.0 26.0 28.1
MOCP (Max. over Current Protection) 30.0 35.0 35.0 45.0
TRIPLE PUMPS
(add -3 to model #)
RLA (Rated Load Amps) N/A N/A 28.6 26.4
MCA (Min. Circuit Ampacity) N/A N/A 31.6 30.9
MOCP (Max. over Current Protection) N/A N/A 40.0 45.0
COMPRESSOR 1/3 HP 1/2 HP 3/4 HP 1-1/2 HP
EVAPORATOR RATING @ 20°F (BTUH) 3420 4080 6870 13,800
HEAT REJECTION (MAX) 2050 2450 4122 6500
REFRIGERANT R-134a R-134a R-134a R-134a
SHIPPING WEIGHT LBS (kg) 141 (64) 143 (65) 205 (93) 255 (116)
CABINET Stainless Steel
CIRCULATING PUMP 100 GPH/130 PSIG
RESERVOIR CAPACITY 1.75 gal 1.75 gal 1.75 gal 1.75 gal
REFRIGERATION Constant Pressure Expansion Valve, Condensing Unit with Service Valves
REFRIGERANT CHARGE (grams) 14.5 oz / 410 g 14.5 oz / 410 g 22.0 oz / 623 g 22.0 oz / 623 g
GLYCOL CONCENTRATION 30% 30% 30% 30%
PLUMBING REQUIREMENTS
INLET & OUTLET All employ 1/2” O.D. Quick Connect Fittings
FLOW RATE (gpm) @ 75°F 0.5 0.6 0.9 1.2
PRESSURE DROP (psig) 0.1 0.2 0.4 0.5
MAX SUPPLY PRESSURE All Models: Incoming Water Pressure not to exceed 150 psig
WATER INLET
WATER OUTLET
OPTIONAL
ACCESSORIES
4430 115V pump kit for 4410 Power Pak (eld installed)
4431 115V pump kit for 4414 Power Pak (eld installed)
4435 BLM Receptacle
4408SS Wall Bracket for 4404 & 4410 only
57782 Set of four adjustable legs
54838 Water hammer arrestor (add if incoming water is under 65°F)
61790 Dual tier rack
61791+1 Triple tier rack
61792+2 Quad tier rack
C22296A-20 Cord Kit for 120V single pump Power Paks only (Field
Installed)
C21499BSS Stainless Steel Table Stand
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without prior notice
3
Form No. Z2020
Rev. 10.23.2017
4400 SERIES POWER PAKS  AIR COOLED
Operation/Installation Manual
4400 SERIES POWER PAKS  WATER COOLED
Operation/Installation Manual
C
US
