Perlick HC24FS Installation And Operation Instructions

Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
10
Form No. Z2288
Rev. 05.21.10

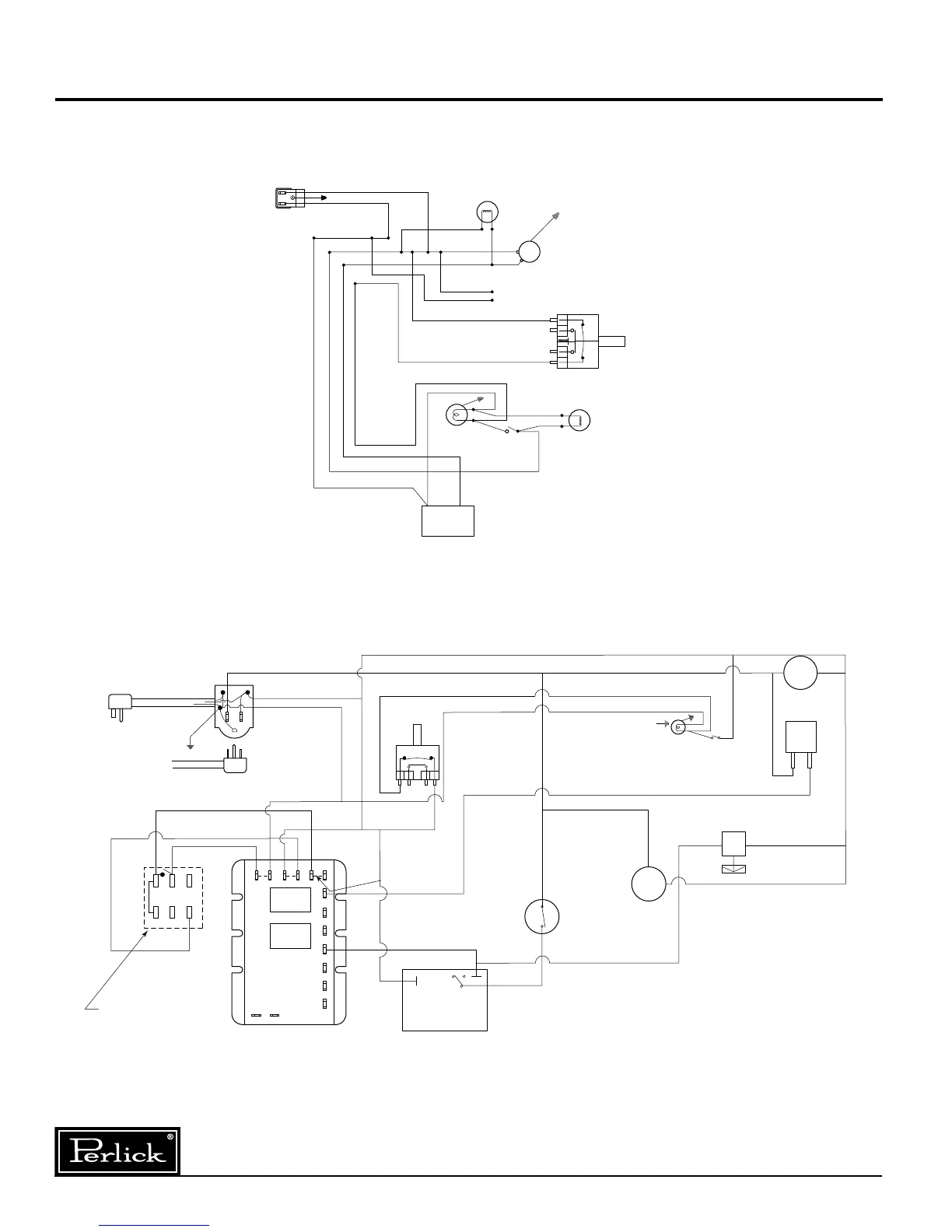

Wiring Diagrams
CONDENSER
FAN MOTOR
COMPRESSOR
DOOR
SWITCH
EVAPORATOR
FAN MOTOR
TEMPERATURE
CONTROL
LIGHT
SWITCH
BLUE
BLUE
RED
RED
BLACK
BLACK
21
20
22
23
BLACK
BLACK
WHITE
WHITE
WHITE
WHITE
CLOSE
@ 25° F
OPEN
@ 40° F
ON DELAY
RELAY
RELAY
S.S. TIMER
WHITE
WHITE
WHITE
WHITE
NORM. CLOSED
HOT GASS DEFROST
SOLENOID
CONDN
FAN
A2 (RED)
BLACK
BLACK
B (POWER)
TO CONDENSING
UNIT
PLUG-IN-CORD
BLUE
LIGHT
SWITCH
TEMPERATURE
CONTROL
DOOR
SWITCH
S.S.S.T MOMENTARY
CONTACT DEFROST SWITCH
W/INDICATOR LIGHT
RELAY
1
12
B W A1
A1
A
B2
B1
T11
T12
T13
T15 T14
2
3
3
4
4
56
2
DEFROST
TEMP. LIMIT
SWITCH
INTERNAL
CONNECTIONS
BLACK
3
RED
DEFROST CYCLE:
1) AFTER 220 MINUTES:
-A2 OPENS.
-B1 CLOSES.
-HOT GAS VALVE OPENS.
-ON DELAY RELAY CONTACT CLOSES
TO 2 IN 3 MINUTES.
-THERMOSTATE IS BYPASSED.
-COMPRESSOR RESTARTS AFTER 3
MINUTES FOR HOT GAS DEFROST.
2) LIMIT SWITCH OPENS AT 40° F:
-COMPRESSOR OFF.
-HOT GAS REMAINS ENERGIZED.
3) AFRT 20 MINUTES:
-B1 OPENS.
-HOT GAS VALVE IS DE-ENERGIZED.
-A2 CLOSES.
-COMPRESSOR STARTS THROUGH
TEMPERATURE CONTROL.
HC24RS and HC24WS
HC24FS
