Perlick HC24FS Installation And Operation Instructions

Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
2
Installation and Operating Instructions

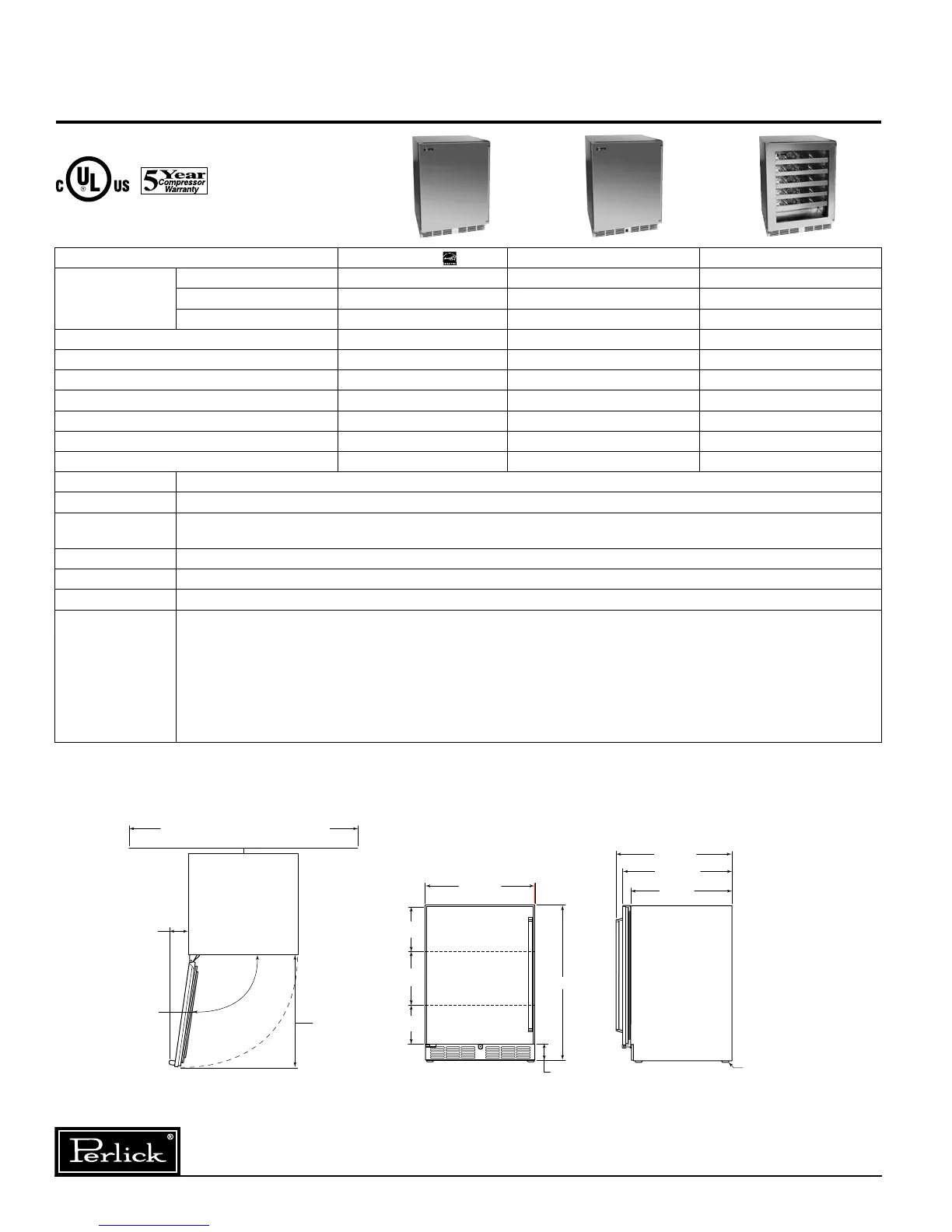

Specifications - 24" Custom Series Refrigerator/Froster/Wine Reserve
Form No. Z2288
Rev. 05.21.10
Top View Front View End View
MODEL NOS. HC24RS HC24FS HC24WS
Cabinet
Dimensions
Length - Inches (mm) 23
7
⁄8” (607) 23
7
⁄8” (607) 23
7
⁄8” (607)
Depth - Inches (mm) 23
15
/16” (608)
23
15
/16” (608) 23
15
/16” (608)
Height - Inches (mm) 34” (870) 34” (870) 34” (870)
INTERIOR VOLUME - CUBIC FOOT (m3) 5.3 (0.15) 5.3 (0.15) 5.3 (0.15)
SHELVING 2 Full Extension Shelves 2 Full Extension Shelves 5 Full Extension Wine Racks
CAPACITY* 5 cases 86 glasses 45 wine bottles
TEMPERATURE RANGE 32°F to 42°F (0C to 6C) -10°F to +10°F (-23C to -12C) 45°F to 65°F (7C to 18C)
RUNNING LOAD AMPS 2.3 2.3 2.3
CONDENSING UNIT H.P. 1/6 HP 1/6 HP 1/6 HP
SHIP WT. L
bs. (kg.) 195 (89) 195 (89) 215 (98)
INTERIOR
All stainless steel interior.
EXTERIOR
Stainless steel top, sides and grille, galvanized back and bottom. See door finishes under optional accessories.
REFRIGERATION
R-134a capillary tube-type with hermetric compressor. Front access condenser. Froster equipped with
automatic 4 hour hot gas defrost cycle and manual 6 hour defrost with auto restart.
ELECTRICAL 115V, 60Hz., 1 phase, furnished with 3-prong NEMA 5-15P plug, 6 foot long cord.
PLUMBING None required. Moisture drains to self evaporating condensate pan.
VENTILATION
Front vented.
OPTIONAL
ACCESSORIES &
MODIFICATIONS
* Froster - glass size 3” diameter. Refrigerator - 12 oz. long neck bottles. Wine - 750ml wine bottles.
** Call Milwaukee or see our web site for standard or custom color options.
50” AREA IN WHICH ELECTRICAL
OUTLET MUST BE LOCATED
*4
1
/4” MIN.
CLEARANCE
FROM A CORNER
TO ACHIEVE
REQUIRED
DOOR SWING
*VALUES MAY
CHANGE DUE
TO CUSTOM PULL
WITH A WOOD
OVERLAY DOOR
*25
5
/16”
22
1
/8”
23
15
/16”
24
25
/32” MIN.
CLEARANCE
FOR DOOR
SWING
23
7
/8”
34”
3
19
/32”
8
3
/8”
9
3
/8”
7
1
/2”
98° SWING
REQUIRED FOR
PULL-OUT SHELF
CLEARANCE
STANDARD LEVELERS
INCREASE CABINET
HEIGHT 1/4”
REF/FREEZ
• Leg set Customer choice of laminate
• Caster Set Powder coated (color options)**
• Door Lock
Brass hardware (classic, 12" & full length) or pull tab
Prepared for field lamination
Glass door with black vinyl frame
Door Finishes
Glass door with stainless steel frame
Black vinyl coated Glass door with laminated frame
Stainless steel Glass door with powder coated frame**
†
†
HC24RS Only
