Perlick HP15 Service Manual

ITEM
NUMBER
DESCRIPTION
10 Main Control Box Wire Harness (Not Shown)
11 DC Fan Motor Wire Harness (Not Shown)
12 LED Driver to LED Light Board Wire Harness (Not Shown)
ITEM
NUMBER
DESCRIPTION
01
Digital Controller (Must Specify Temp. Zone)
02
3 Posion Switch
03
Blue & White LED Light Board (Not Shown)
04
LED Light Cover (Not Shown)
05
LED Driver
06
Temperature Probe
07
Evaporator Fan Motor
08
Evaporator Fin Coil
09
Freezer L&S Line (Not Shown)
10
Main Control Box Wire Harness (Not Shown)
Return to Table of Contents
Residential Refrigeration
and Front Venting Commercial Refrigeration
Service Manual

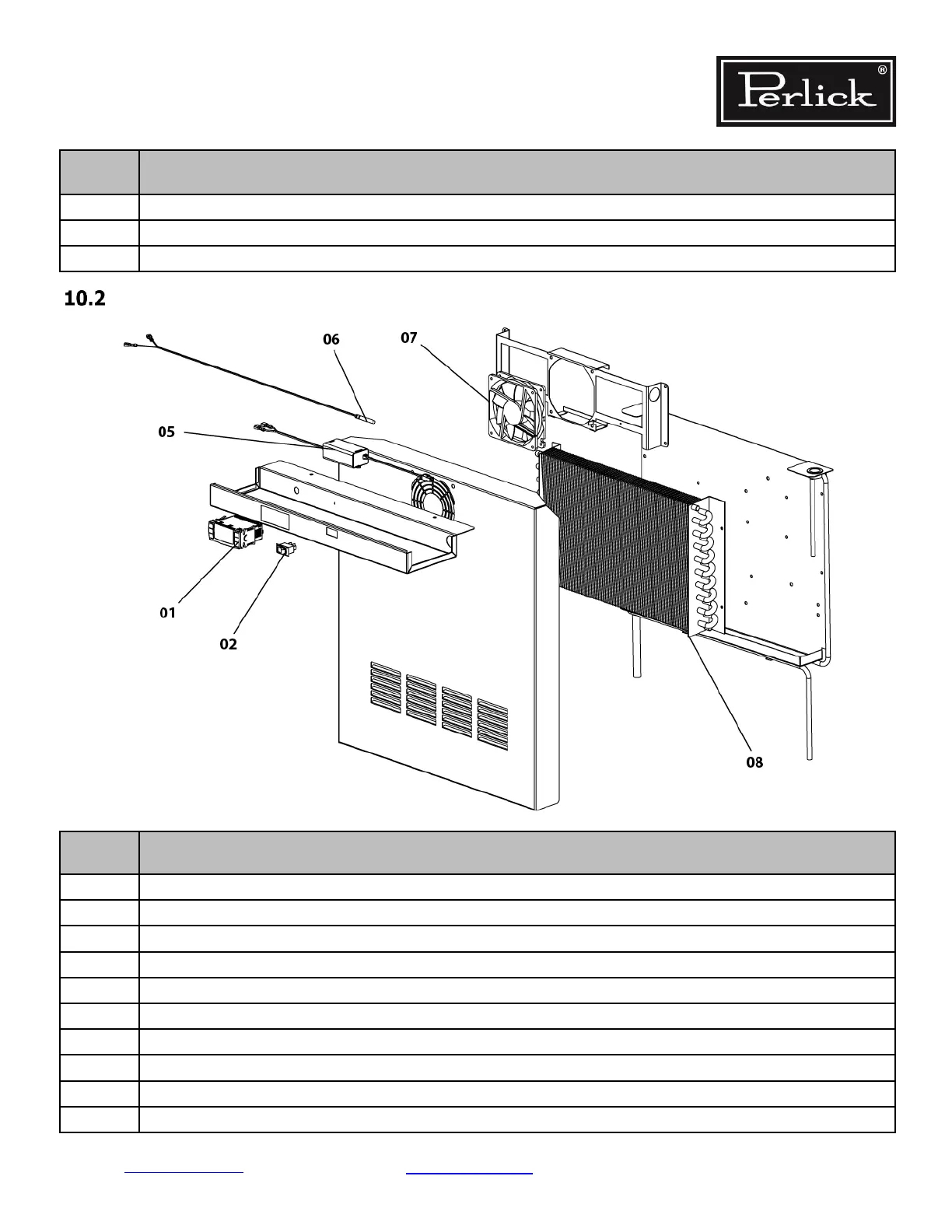

HP24 Low Temperature Cabinets - Evaporator Compartment Service Parts
Replacement Parts Page 10-2
