OPERATION 7: INSTALL FEMALE LATCHES TO BRACKET
OPERATION 8: PREPARING GRILL (LATCH & BUMPERS)

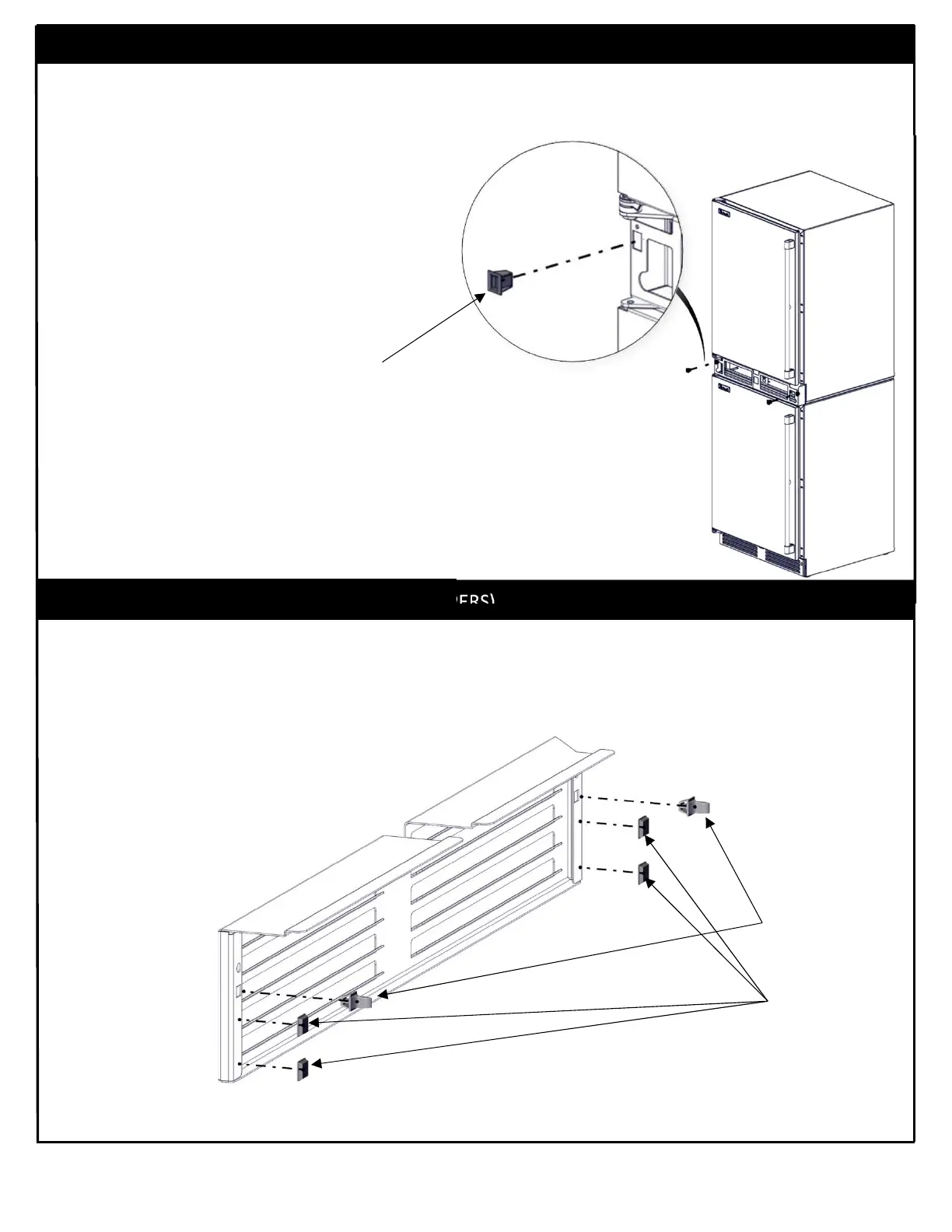

1. CAREFULLY INSTALL FEMALE LATCHES (2X) INTO MOUNTING BRACKET ONE ON EACH SIDE BY PRESSING
DOWN FIRMLY AGAINST SQUARE OPENING IN BRACKET. MAKE SURE FEMALE LATCHES ARE ALL WAY IN
AND ORIENTED AS PICTURE BELOW (VERTICAL OPENING).
FEMALE LATCH (2X)
MALE LATCHES
BUMPERS
1. INSTALL MALE LATCHES ON GRILL BY PRESSING FIRMLY AGAINST SQUARE OPENING ON EACH SIDE OF GRILL. MAKE
SURE THE MALE LATCHES ARE FULLY ENGAGED AND ORIENTED VERTICALLY.
2. PEEL OFF THE PAPER OF EACH BUMPER PAD EXPOSING THE ADHESIVE SURFACE AND PLACE EACH ONE AS ORIENTED
IN THE PICTURE BELOW.
