OPERATION 9: INSTALL STACKING GRILL
OPERATION 10: FINAL STAGE
REV # ECO # DESCRIPTION DATE NAME
A 2021-5401 NEW RELEASE 3/02/2022 JIT

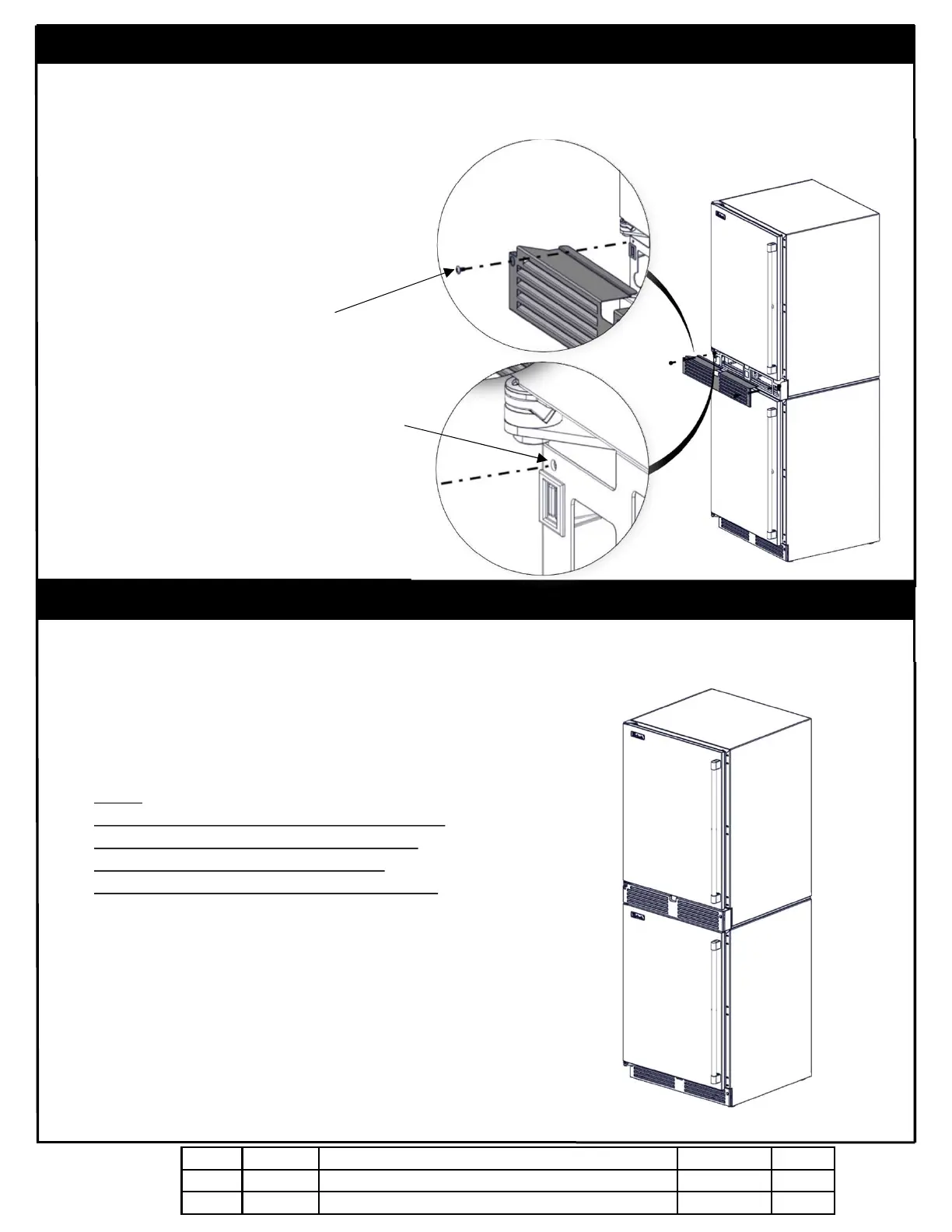

1. PLACE AND ALIGN STACKING GRILL TO HOLES LOCATED RIGHT ABOVE FEMALE LATCHES ON EACH SIDE OF
MOUNTING BRACKET.
2. UTILIZING A PHILLIPS HEAD SCREWDRIVER, SECURE STACKING GRILL WITH TWO #10 SCREWS PROVIDED IN KIT.
SCREWS (2X)
HOLE
1. MAKE SURE TO WAIT 24 HOURS BEFORE POWERING ON UNIT AFTER TURNING THE CABINET
BACK TO ITS UPRIGHT POSITION.
NOTE:
WHEN USING STACKING KIT TO JOIN (2) HH24
OR HA24 UNITS, A WALL MOUNT ANTI-TIP
KIT MUST BE INSTALLED. SEE CABINET
INSTALLATION MANUAL FOR INSTRUCTIONS.
