Perma NOVA - Remote mounting with tube; hose

To Next Page

To Previous Page

• Keep connection lines as short as possible and use tubes / hoses with an inside diameter of at least 6 mm.

Keep in mind that tube / hose length and bore diameter of bearing housings affect pressure and discharge period

of the lubrication system.

• For installation of perma NOVA use Mounting bracket 1-point G1/4 female (109685).

• Secure tubes / hoses with suitable fastenings (brackets, cable ties) to protect against damage and tearing.

• Depending on lubricant and ambient temperature, different tube / hose lengths are possible, e. g.

→ perma Multipurpose grease SF01: 2 m (+20 °C)

→ perma Multipurpose oil SO32: 3 m (+20 °C).

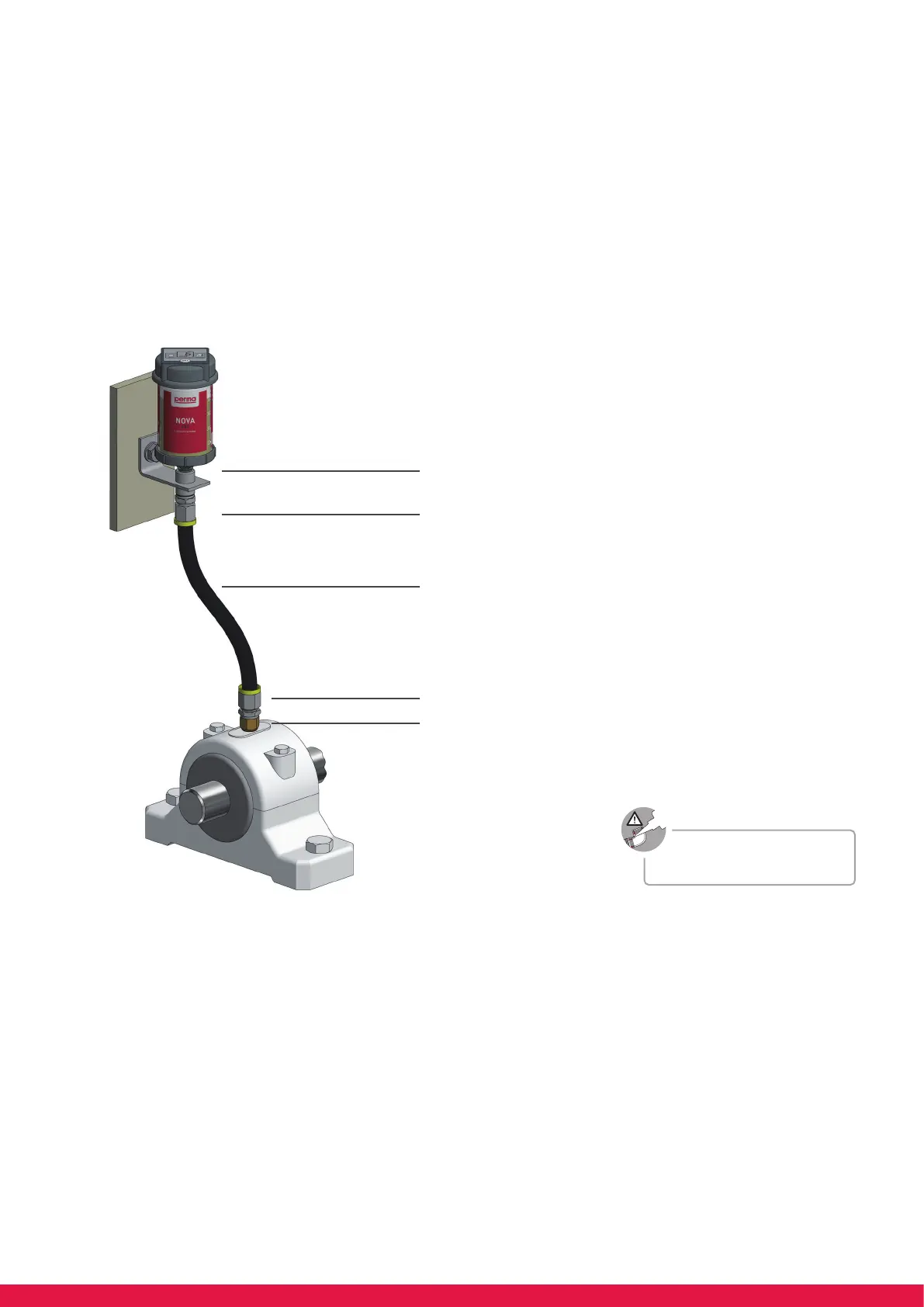

Mounting bracket 1-point G1/4 female (109685)

Hose connector G1/4 male for hose iØ 9.5 mm - push-lock (116624)

Heavy Duty hose up to +100 °C oØ 16 mm x iØ 9.5 mm (101555)

Hose connector G1/4 male for hose iØ 9.5 mm - push-lock (116624)

Reducer for thread connection

Remote mounting is recommended if,

• the ambient temperature of the lubrication point is permanently higher than +60 °C

• the lubrication point is exposed to high vibrations

• no direct access to lubrication point is possible due to safety issues

(e. g. removal of protective screens, safety walls or cages)

• it is difcult or dangerous to access the lubrication point

• the lubrication system is exposed to mechanical forces (e. g. falling rocks)

Remote mounting with tube / hose

All metal to metal connections must

be glued together with Loctite® 243™
