The PM54 obtains the Panel Account number directly from the Alarm Panel after the first valid
contact ID event is sent.
If a fixed Panel Account number is required - inform the Monitoring Centre before activation.
Installation Procedure cont.....
The alarm panel must be programmed with:
Contact ID
Tone / DTMF dialling
Four digit Panel ID number
8 digit telephone number (any numbers)
Arm & Disarm reporting must be enabled if you are using the Pocket Secure App.
Trigger an alarm event or test report from the alarm panel. The panel dialler will seize the
line and send data on ‗R‘ & ‗T‘. The ‗CID‘ LED = [Green - Blinking].
When a valid Contact ID event is sent from the alarm panel the
‗CID‘ LED = [Green - Steady On].
Ping the PM54 using Atlas to verify the status of the installation.
Programming the Alarm Panel
Antenna Installation
Antennas can have their performance maximised by using a ‗Ground
Plane‘, any metal mounting surface will suffice. Please use the sup-
plied ‗Ground Plane‘ plate if you are not mounting the
antennas on a metal surface. A significant reduction in performance
occurs if an antenna does not have an adequate ground plane.

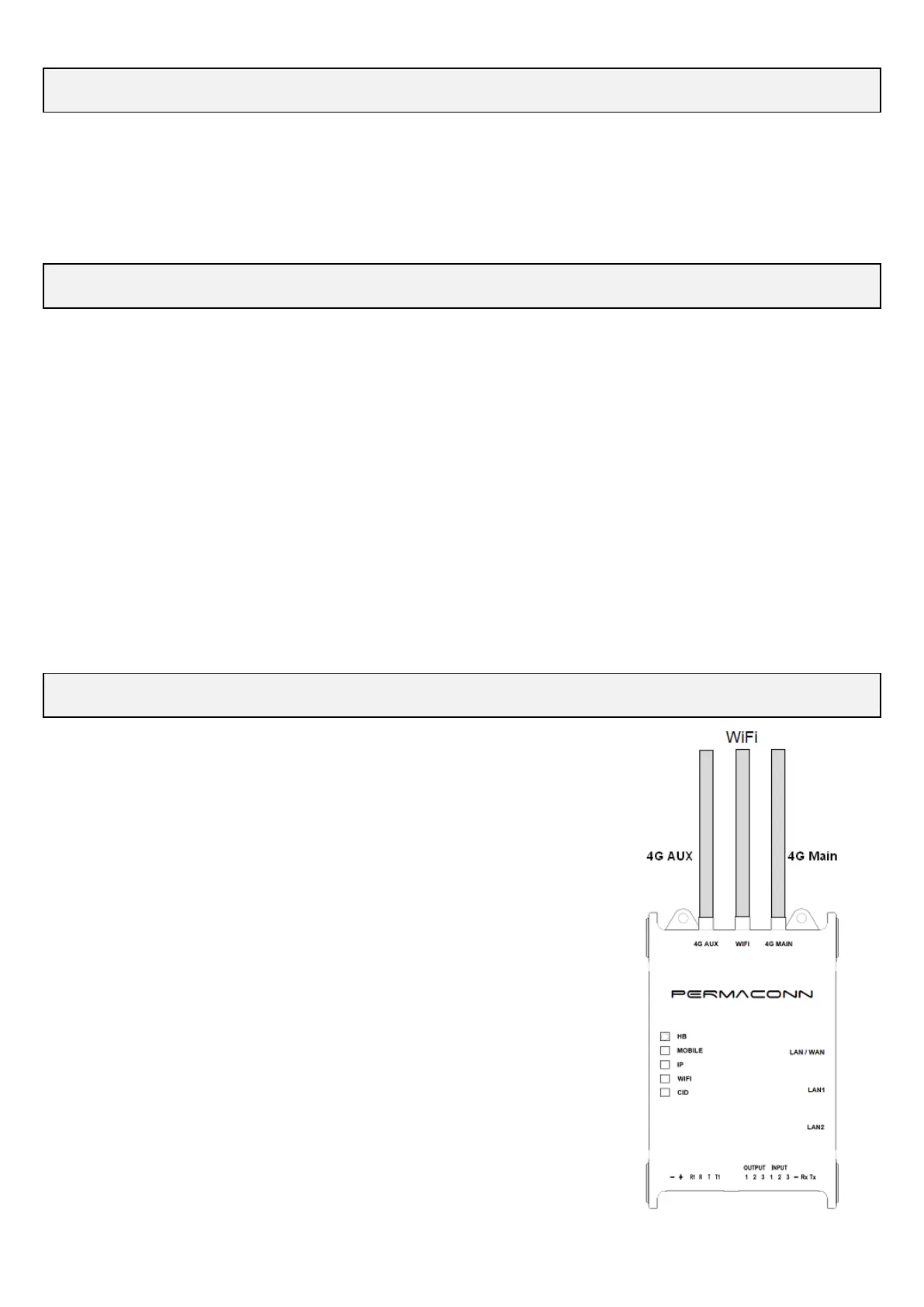

The PM54 is supplied with three antennas
If signal strength is low, a high gain antenna may be
required. This can be purchased separately from Permaconn or
one of our distributors
Extension cables for the high gain aerial are available
Length in Meters Part N#
3 EXT3
5 EXT5
10 EXT10
RDCCO_2195_E_IN PM54 Installation Manual v1
