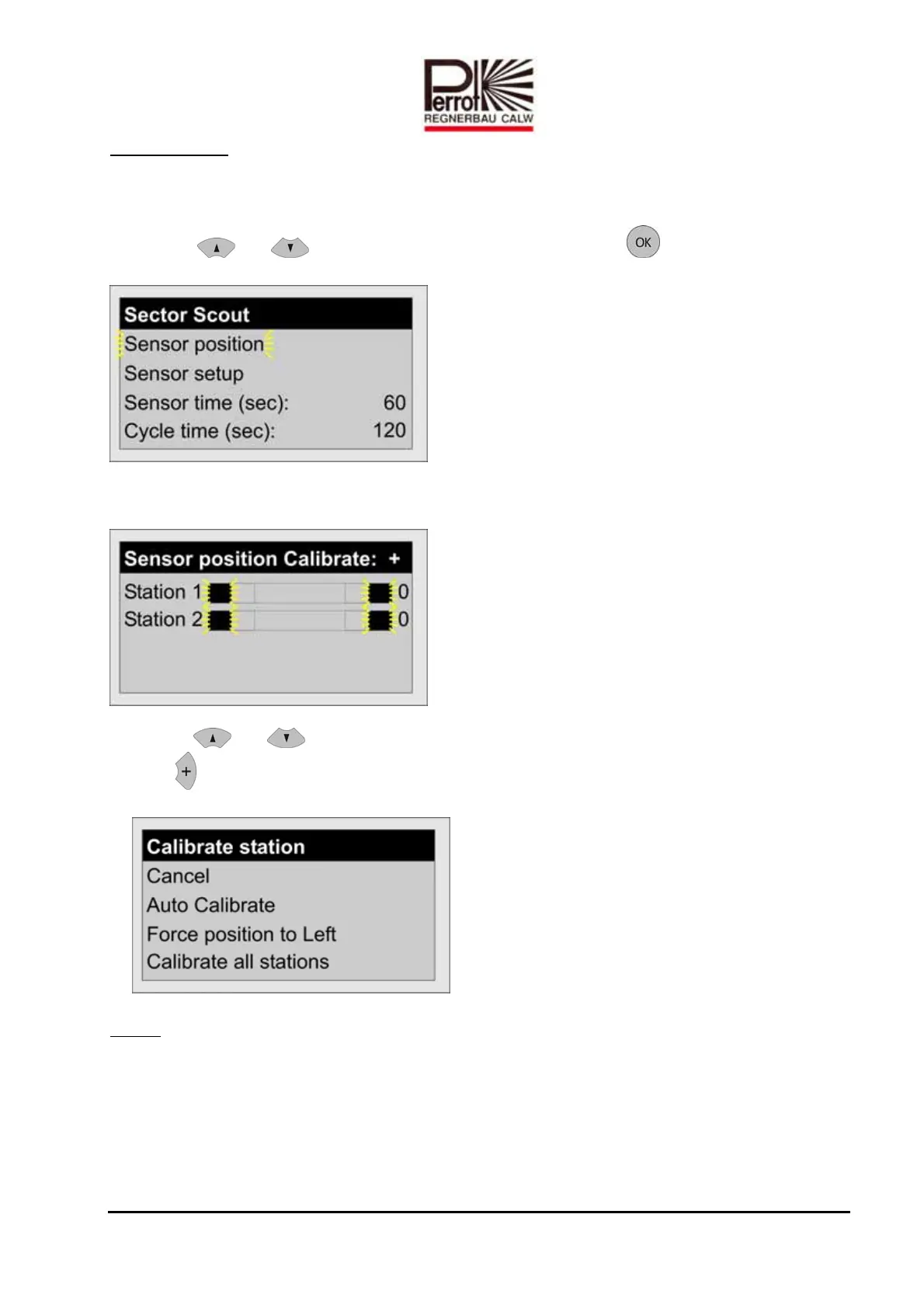

Sensorposition
Thismenuwillshowyouhowtobringallsprinklersintoonedefinedhomeposition(calibrate),the
so‐called„parkingposition“,meaningarcsettingtotheleft.

 Usethe and keystoselect„sensorposition“andpress toconfirm.



ThedisplaywillnowshowallstationswithSectorScout.



 Usethe and keystoselectastation
 Press
toentertheselectionmenuwhichwillofferyouthefollowingoptions:



Cancel
 „Cancel“willbringyoubacktothepreviousmenu.

Theblackblocksalongthebarshowthe
progressofeachstationwithSector
Scout.Pleaseseepage25“sensor
positionbar”fordetailedexplanationof
eachsignal.
