PleasefollowthebelowmenuinstructionstooptimizeVP3SectorScout‐basedscheduling.

Sensorafterruntime
Theintegratedvalvehasaclosingtimeofabout5‐8seconds,sothesensorwillsendasignalto
thecontrollerabout15secondsbeforethesprinklerhasreachedthesectorstop.
ThesensorafterruntimecanalsobeusedtomakesurethattheVP3popsdownwhenitreaches
thesectorstop.Itcanfurthermoreindividuallybeadjustedfortheleftandrightarcsetting.
Pleasenotethatthetimesspecifiedaresubjecttochangingvalueslikerotationspeedand
operatingpressureatthesprinklerandmaythereforevary.

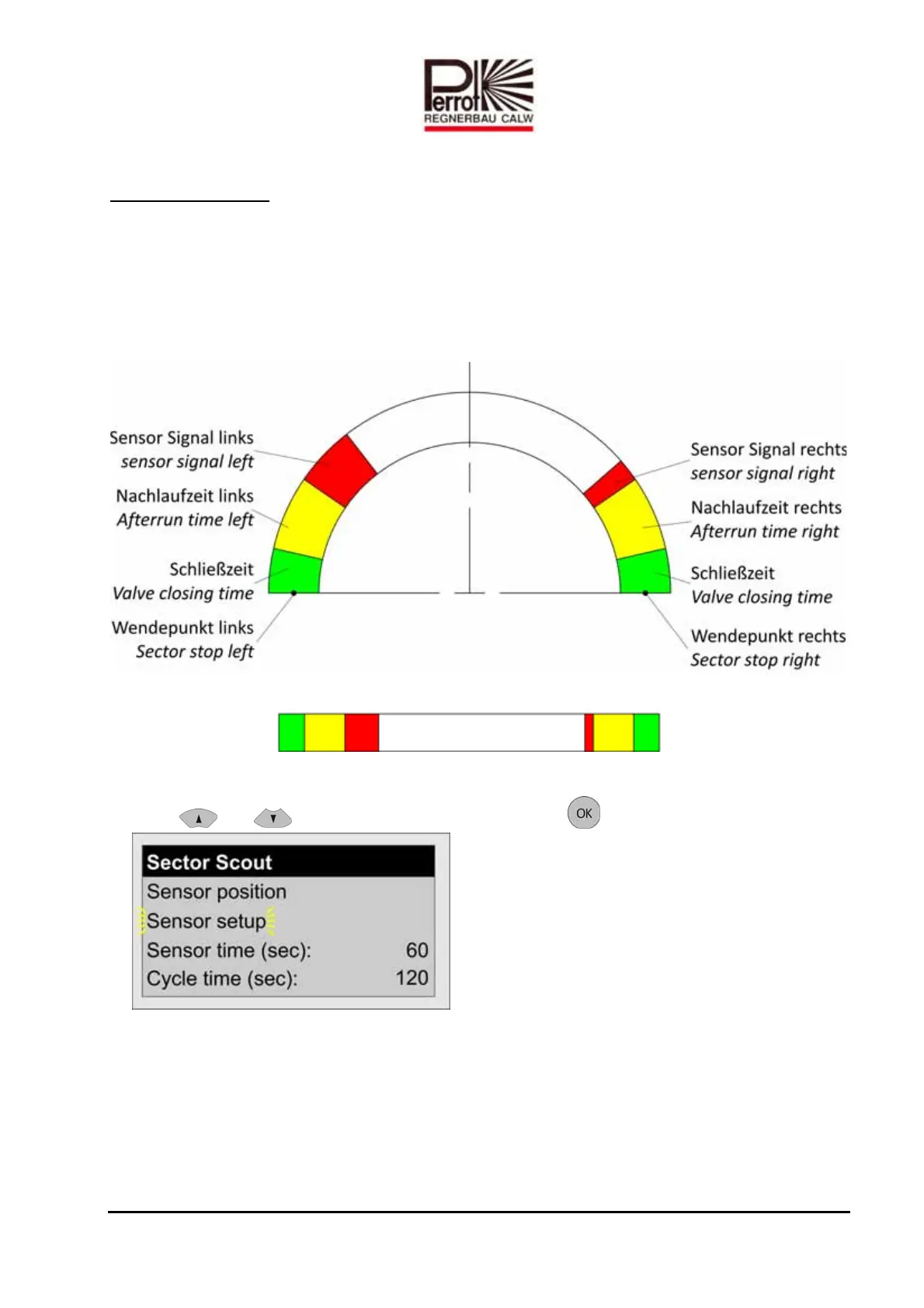

BelowisaschematicviewofSectorScout‐basedscheduling:

Thefollowingsimplifiedversionwillappearonthedisplay: 



 Press
and toselect„Sensorsetup“.Thenpress toconfirm.

