Peterbilt 220 - Fuses

Fuses
WARNING
To prevent overload and the risk of fire
you must NEVER replace a burnt-out
fuse with a fuse with a higher rating
than specified. If a specific fuse re-
peatedly blows, this means there is a
fault in the circuit, which MUST be in-
spected and remedied. NEVER re-
place or remove a fuse if
• the contact is on.
• the engine is running.
• it is passing an electrical load.

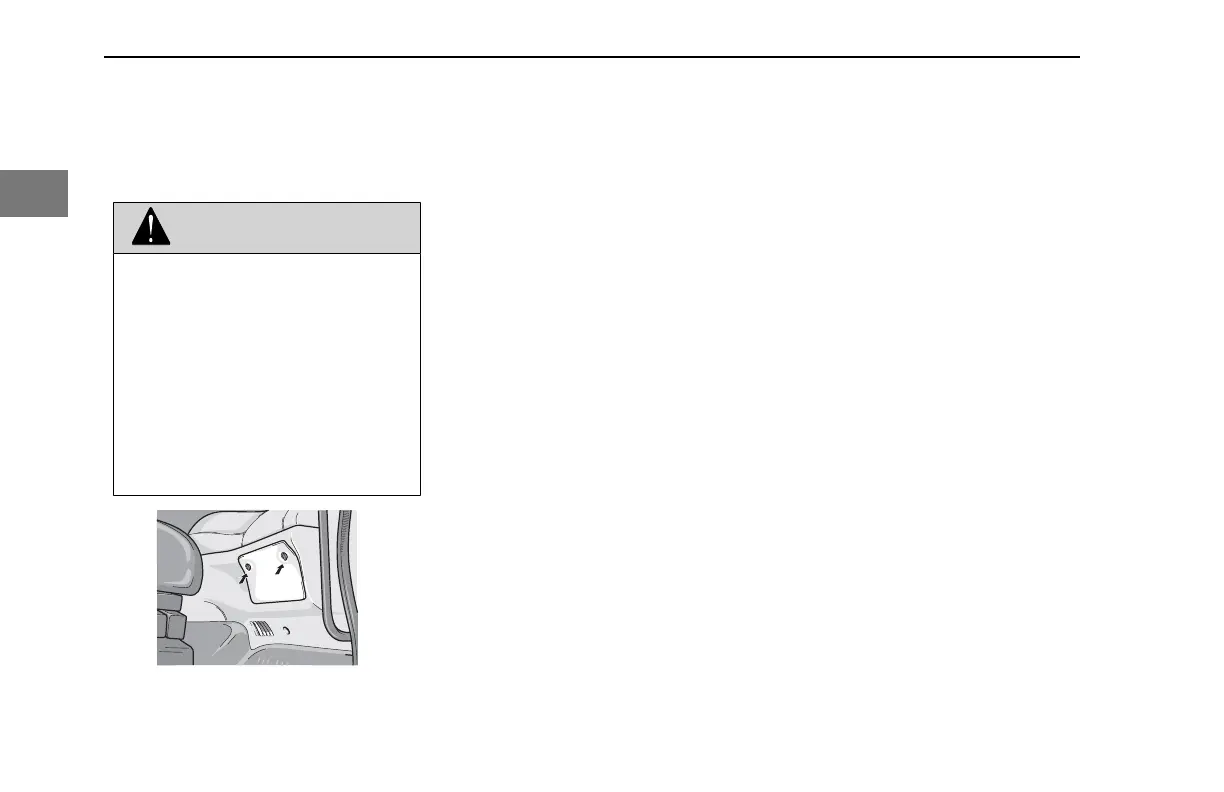

The fuses are behind a cover in the
dashboard on the co-driver's side.
Attached to the inside of the cover is a
sticker with an overview of the fuses. For
replacing fuses there is a special fuse
clamp on the fuse board. Each fuse is
color-coded to show the rating:
Orange 5 A
Red 10 A
Blue 15 A
Yellow 20 A
Transparent 25 A
Green 30 A
List of Fuses
E004 Fuse, driver's side dipped
beam
E005 Fuse, co-driver's side dipped
beam
E006 Fuse, driver's side main beam
E013 Fuse, stop lights
E016 Fuse, reversing lights and
cross-axle lock control
E018 Fuse, G.O reverse lams
E019 Fuse, horn
E025 Fuse, wiper wash
E026 Fuse, cigar lighter/door
switches/electronic unit,
converter 24/12 V with power
supply for radio memory
E027 Fuse, converter 24/12
E028 Fuse, interior lighting/door
locking
E031 Fuse, heater and air
conditioner
E035 Fuse, ECU engine ignition
E039 Fuse, seat heating
E044 Fuse, mirror heating/electrical
mirror adjustment/electrical
window operation/sun roof
E051 (unused)
EMERGENCY - Fuses
28 Y53-6078-1B1 (12/18/18)
2
