Peterbilt 520 - Chapter 3 | Controls

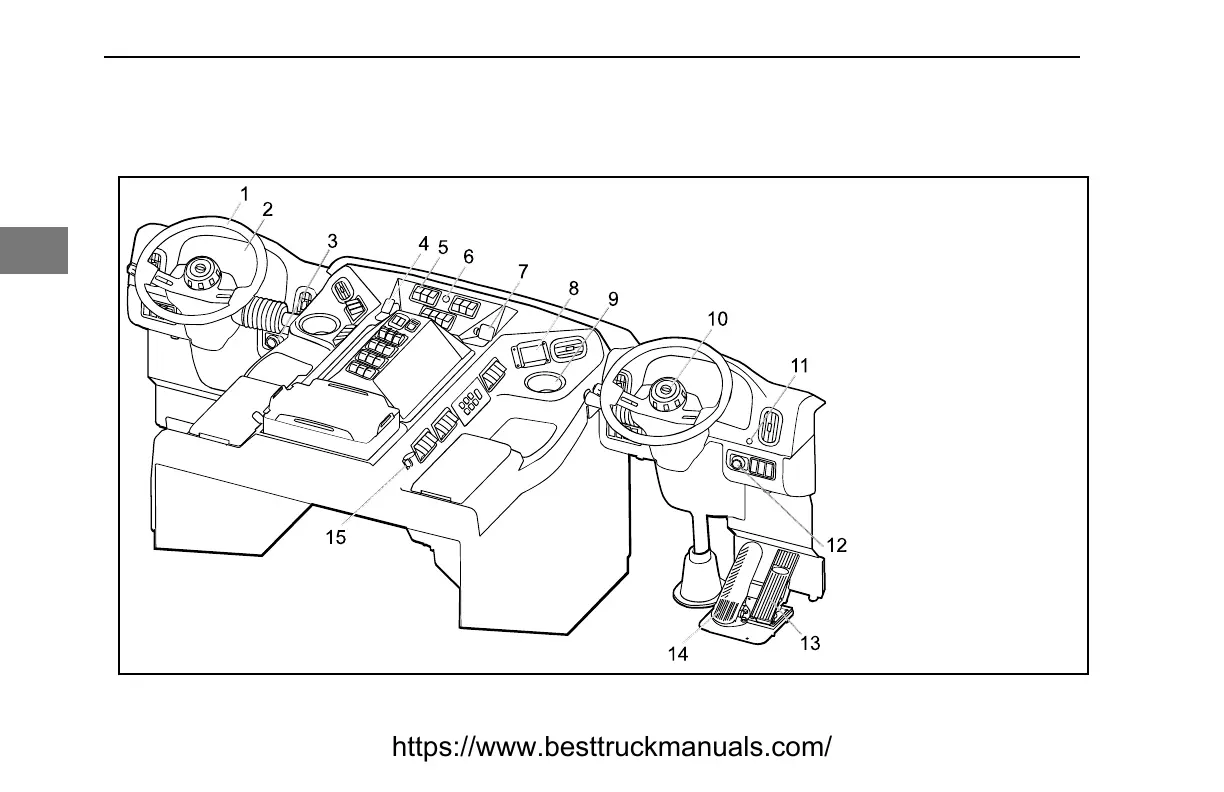

Right Hand (Curb Side) Dual Drive Dual Configuration (Option)
1. Left Hand Station
2.
Left Hand Display
3. Menu Control Switch
4. Left Side Park Brake
Valve
5. Air Switches
6. Primary Ignition Switch
7. Right Side Park Brake
Valve
8. Flipper Valve (Option)
9. Cup Holder
10. City Horn
11. Trip
12. Right Side MCS (Limited
Functions)
13. Accelerator
14. Service Brake
15. Power Port
CONTROLS - Instrument Cluster
52 Y53-6096-1C1 (09/20)
