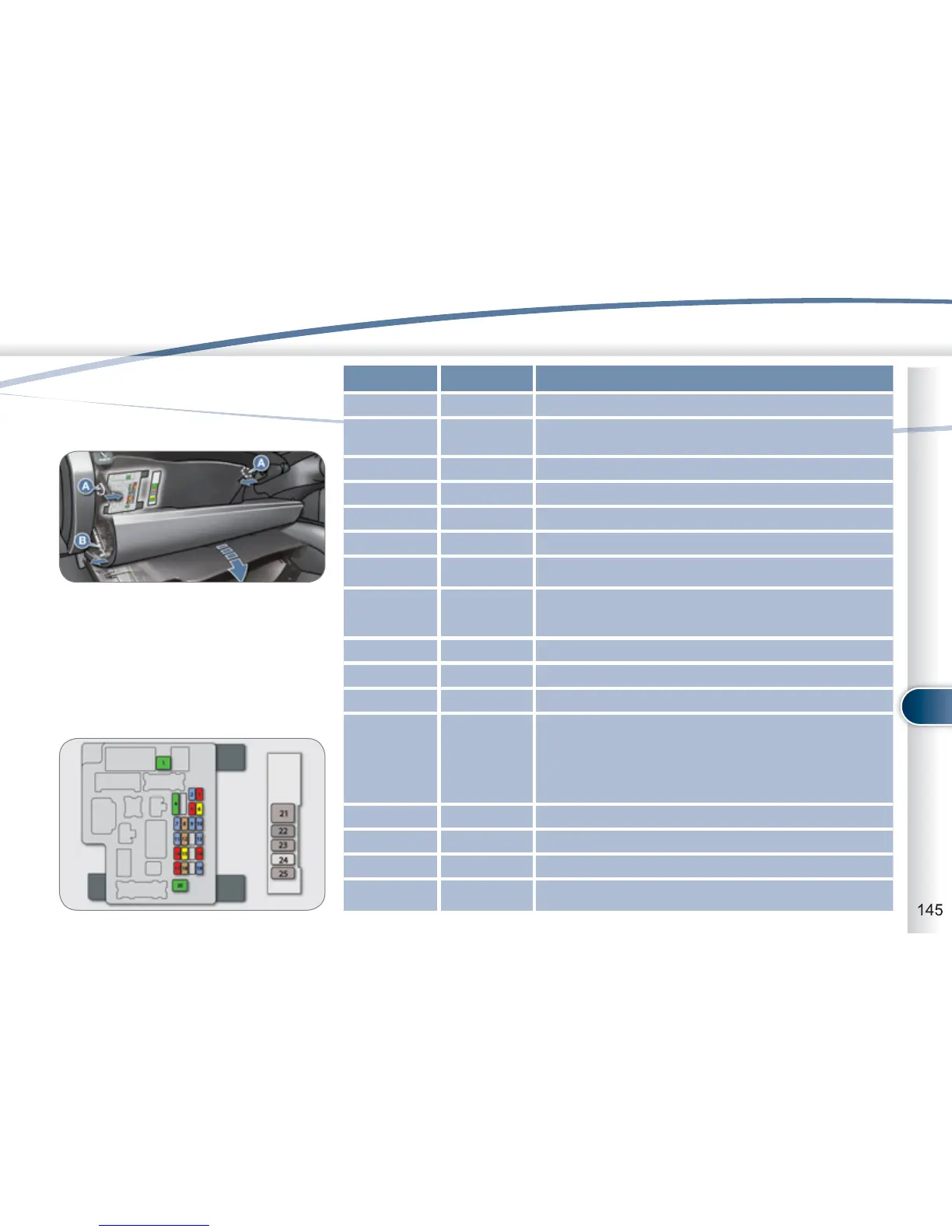

Dashboard fuses
The fuseboxes are placed in the lower
dashboard behind the glove box.
Access to the fuses
) Open the glove box,
) Push the two opening guides A in-
wards to pass the fi rst notch,
) Remove the retaining tab B pulling
it outwards,
) Support the cover and tilt it down-
wards,
) Change the fuse (refer to the cor-
responding paragraph).
Fuse N° Rating Functions
1 30 A Heating.
2 15 A
Brake lamps, third brake lamp, built-in systems
interface.
3 10 A Rear foglamps.
4 30 A Windscreen wipers and screenwash.
5 10 A Diagnostic socket.
6 20 A Central locking, door mirrors.
7 15 A
Audio system, telematics, multifunction screen,
hands-free kit.
8 7.5 A
Remote control key, air conditioning control unit,
instrument panel, switch panel, steering mounted
controls.
9 15 A Multifunction screen, instrument panel.
10
15 A Built-in systems interface.
11 15 A Rear wiper.
12 7.5 A
Instrument panel, 4 wheel drive control unit,
air conditioning control panel, ABS control
unit, multifunction screen, automatic headlamp
adjustment, heated seats, airbag control unit,
steering wheel angle sensor, sunroof, rear screen
demisting, remote control.
13 - Not used.
14 10 A Ignition switch.
15 20 A Sunroof.
16 10 A Door mirrors, audio system, telematics.
