9
PRACTICAL INFORMATION

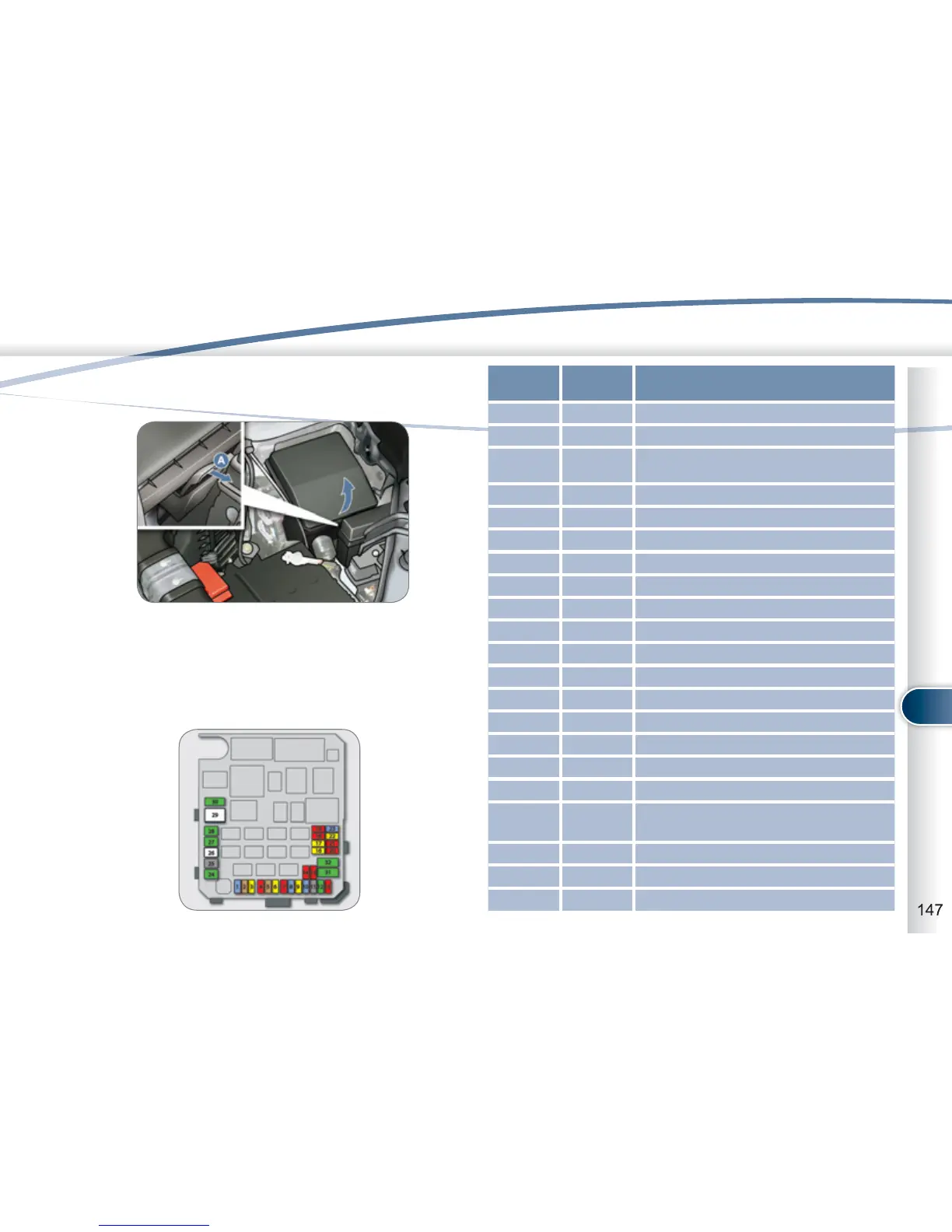

Engine compartment fuses
The fuse box is placed in the engine compartment near the
battery (left-hand side).
Access to the fuses
) Open the bonnet (refer to the "Access" section),
) Press on the hook A to release the catch,
) Remove the cover completely,
) Change the fuse (refer to the corresponding paragraph).
) When you have fi nished, close the cover carefully to en-
sure sealing of the fusebox.
Fuse N° Rating Functions
1 15 A Front foglamps.
2 7 A 2.4 litre 16V engine control unit.
3 20 A
CVT automatic gearbox control unit,
CVT automatic gearbox control relay.
4 10 A Horn.
5 7.5 A 2.4 litre 16V alternator.
6 20 A Headlamp wash.
7 10 A Air conditioning.
8 15 A 2.4 litre 16V engine control unit.
9 - Not used.
10 15 A Demisting, wipers.
11 - Not used.
12 - Not used.
13 - Not used.
14 10 A Left-hand main beam headlamp.
15 10 A Right-hand main beam headlamp.
16 20 A
Left-hand dipped beam headlamp (xenon).
17 20 A
Right-hand dipped beam headlamp (xenon).
18 10 A
Left-hand dipped beam headlamp, manual
and automatic headlamp adjustment.
19 10 A Right-hand dipped beam headlamp.
20 - Not used.
21 10 A Ignition coils.
