Monitoring
Instrument panel

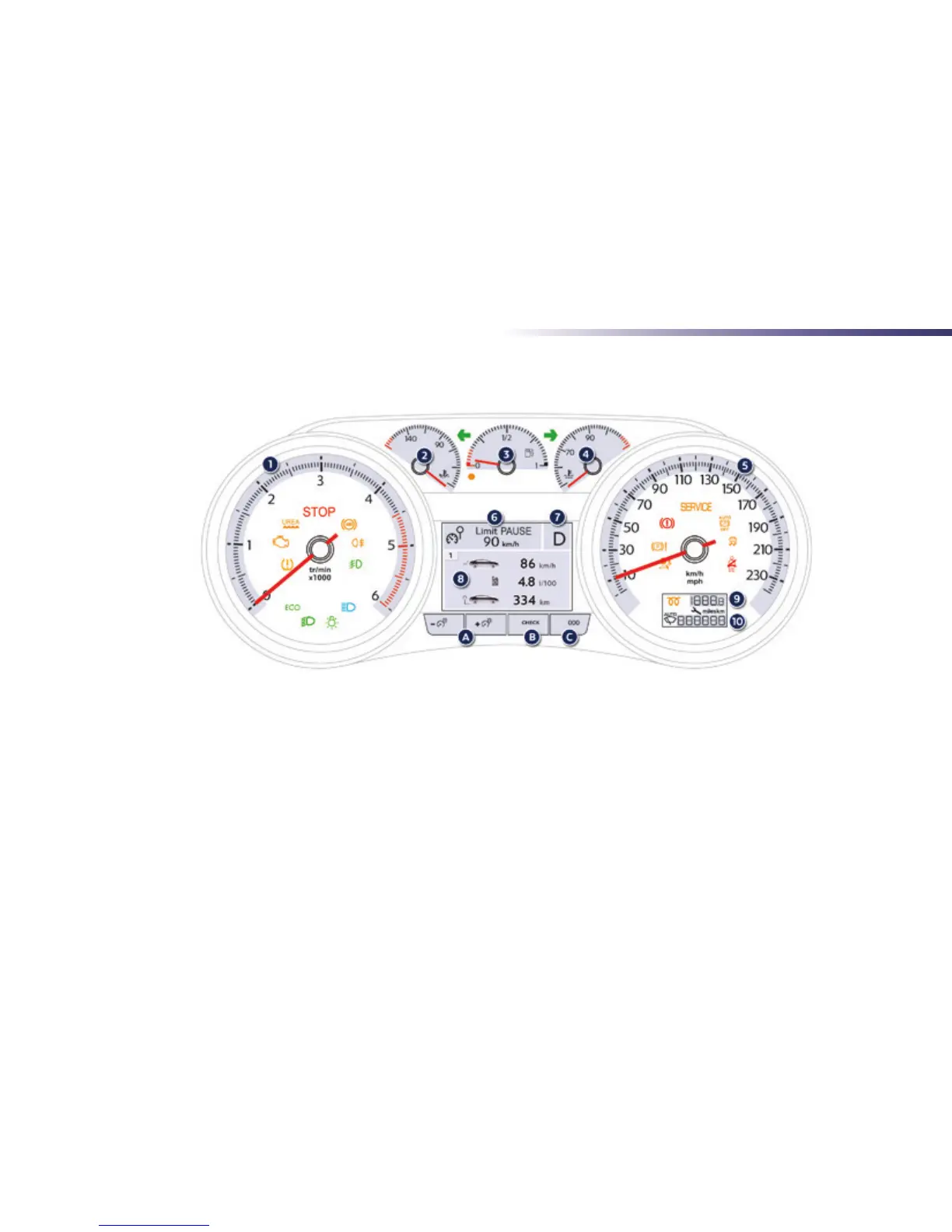

1. Rev counter (x 1 000 tr/min or rpm),
graduation according to engine (petrol or
Diesel).
2. Engine oil temperature gauge.
3. Fuel gauge.
4. Engine coolant temperature gauge.
5. Speedometer (mph or km/h).
6. Cruise control or speed limiter settings.
7. Gear shift indicator for a manual gearbox
or gear lever position and gear for an
electronic or automatic gearbox.
A. Main lighting dimmer.
B. Display of alert log.
Recall of information:
● on servicing,
● on driving range for the emissions
control additive (AdBlue
®
).
C. Reset the trip distance recorder.
8. Display zone: alert messages or state of
functions, trip computer.
9. Trip distance recorder (miles or km).
10. Automatic wipers
Service indicator
(miles or km) then,
total distance recorder.
These two functions are displayed
successively when switching on the
ignition.
