Pfaff 144

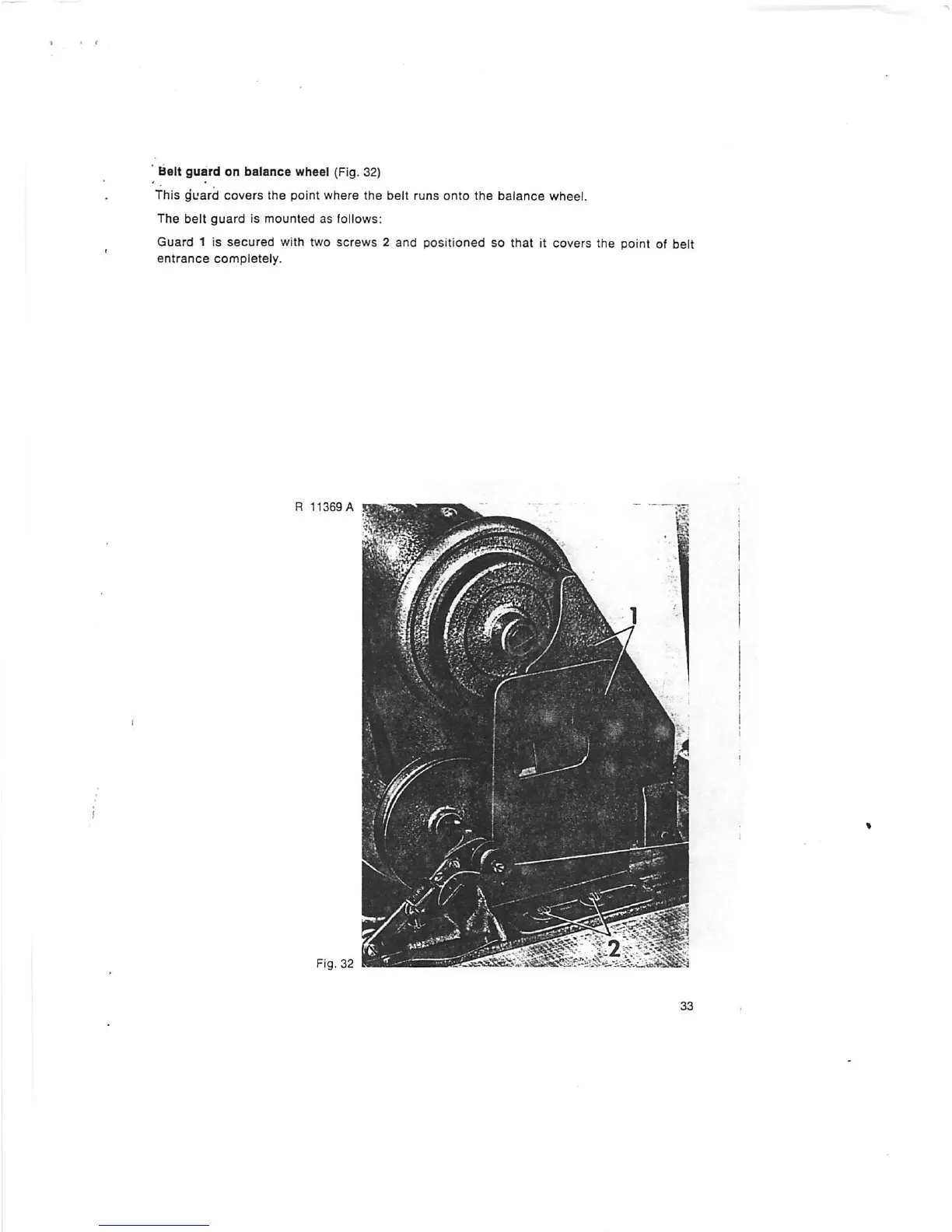

Belt guard on balance wheel (Fig. 32)
This guard covers the point where the belt runs onto the balance wheel.
The belt guard is mounted as follows:
Guard 1 is secured with two screws 2 and positioned so that it covers the point of belt
entrance completely.
R 11369 A
