Pfaff 938 - Thread Diverter Pin

Adjustment
12 - 29
12.05.27 Thread diverter pin
Requirement
With the needle bar at bdc the top edge of the thread guide hole must be at the same
height as the bottom edge of the thread diverter.
9
2-
0
4
0

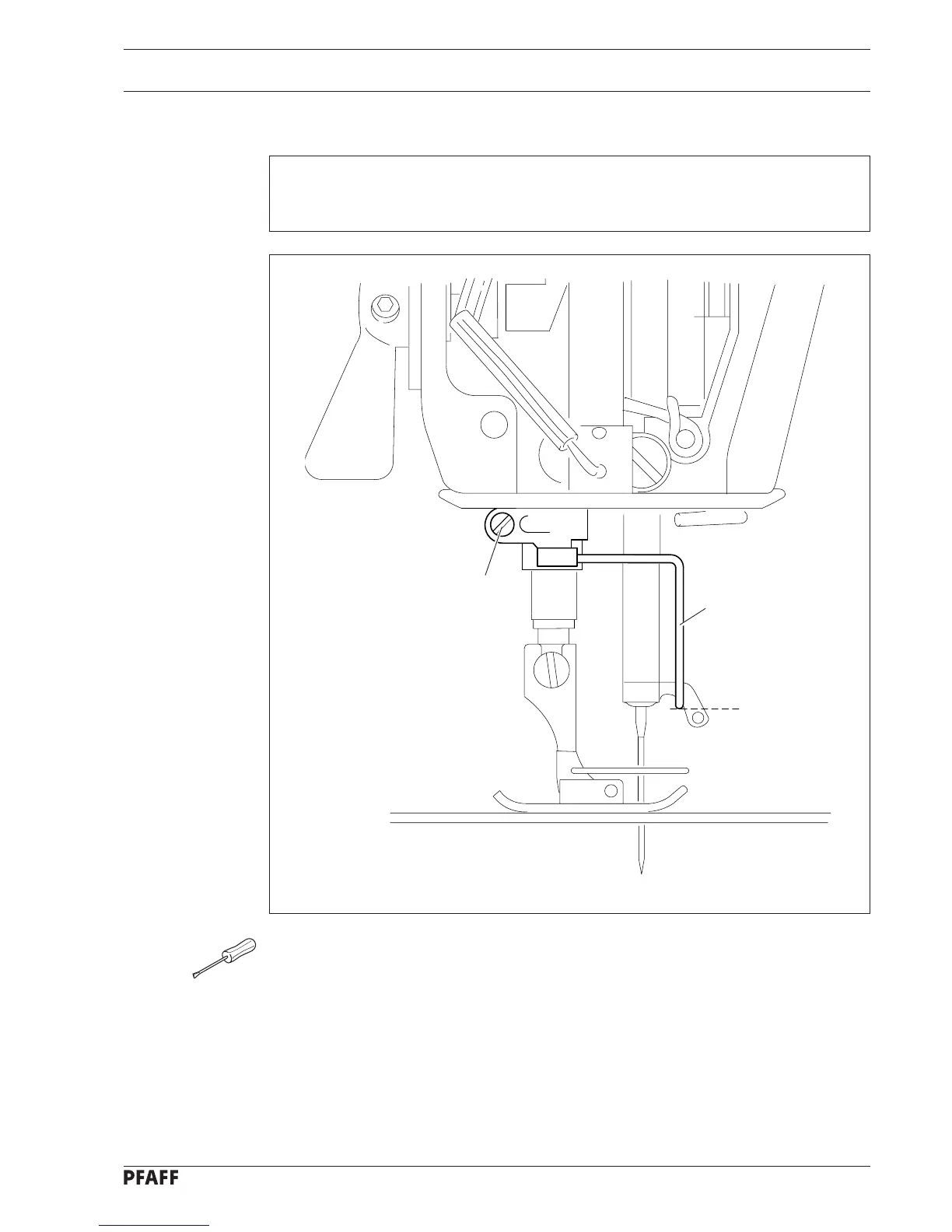

Fig. 12 - 28
2
1
● Adjust thread guide bar 1 (screw 2) according to the requirement, taking care that it is
parallel to the bed-plate.
