2:2
220 V... 240 V
120 V
Preparations

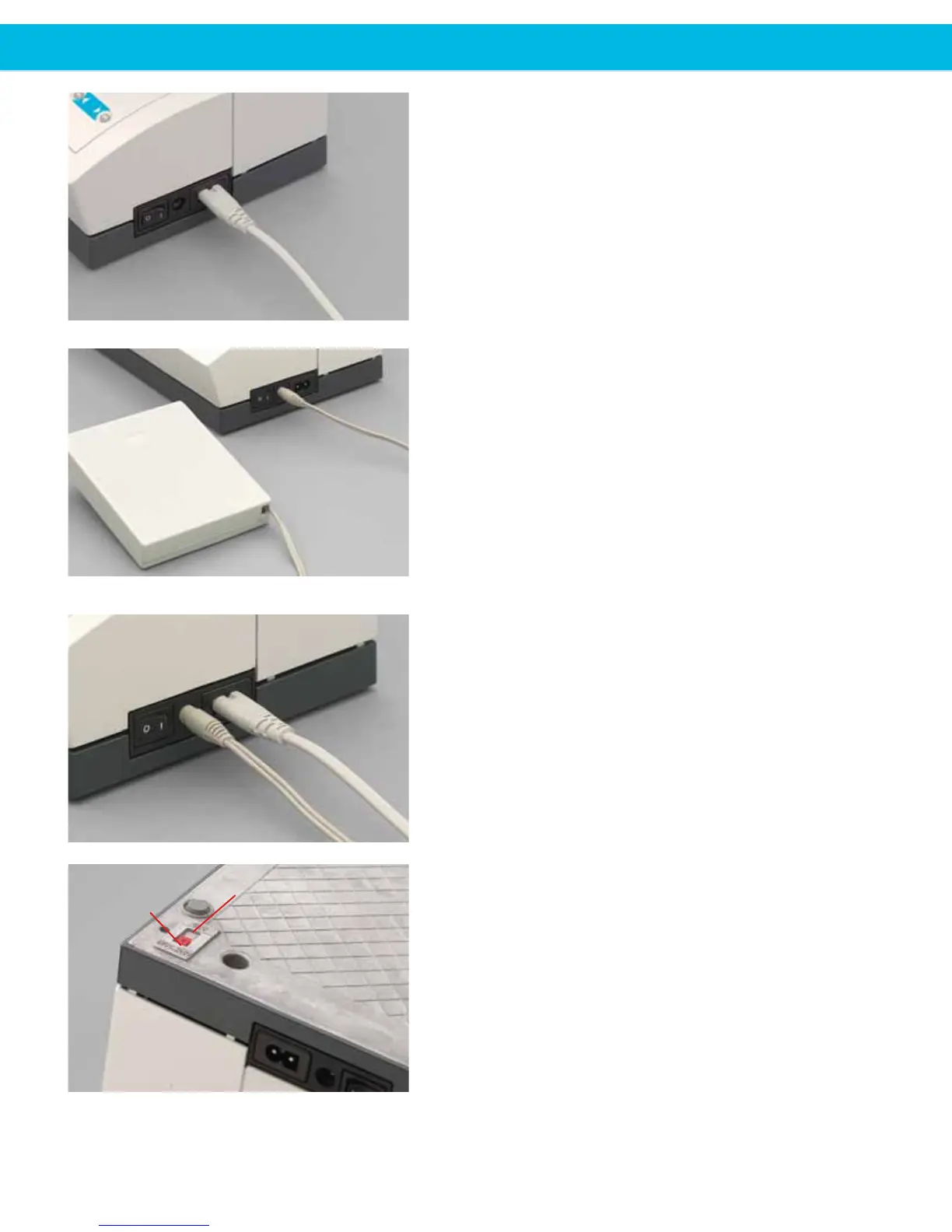

Electrical connection
Connect the lead cord between the socket (8) of the sewing
machine and the wall outlet.
For the USA and Canada:
This sewing machine has a polarized plug (one blade wider
than the other). To reduce the risk of electric shock, this plug
is intended to À t in a polarized outlet only one way. If the plug
does not À t fully in the outlet, reverse the plug. If it still does
not À t, contact a qualiÀ ed electrician to install the proper outlet.
DO NOT modify the plug in any way!
Connecting the foot control
Connect the plug of the foot control to the connection socket (9)
of the sewing machine.
The sewing speed is controlled by pressing the foot control.
The foot control type AT 0070 has to be used for this sewing
machine.
Main switch
When the main switch (10) is switched on (switch function I)
the sewing lamp lights up and program No. 1 is indicated in the
expression window.
The sewing machine is now ready to function.
"0" = OFF
"I" = ON
Voltage Switch
220 - 240V / 120V
The sewing machine is set to the voltage 220 - 240V. To change
the voltage to 120V (US/Canada), you must set the voltage
switch on the underside of the machine to 120 V.
If you are unsure of the correct voltage for your country, please
check with your authorized sewing machine dealer or local
electrical authorities before plugging in your machine.
