Pfaff coverlock 4872 Service Manual

11

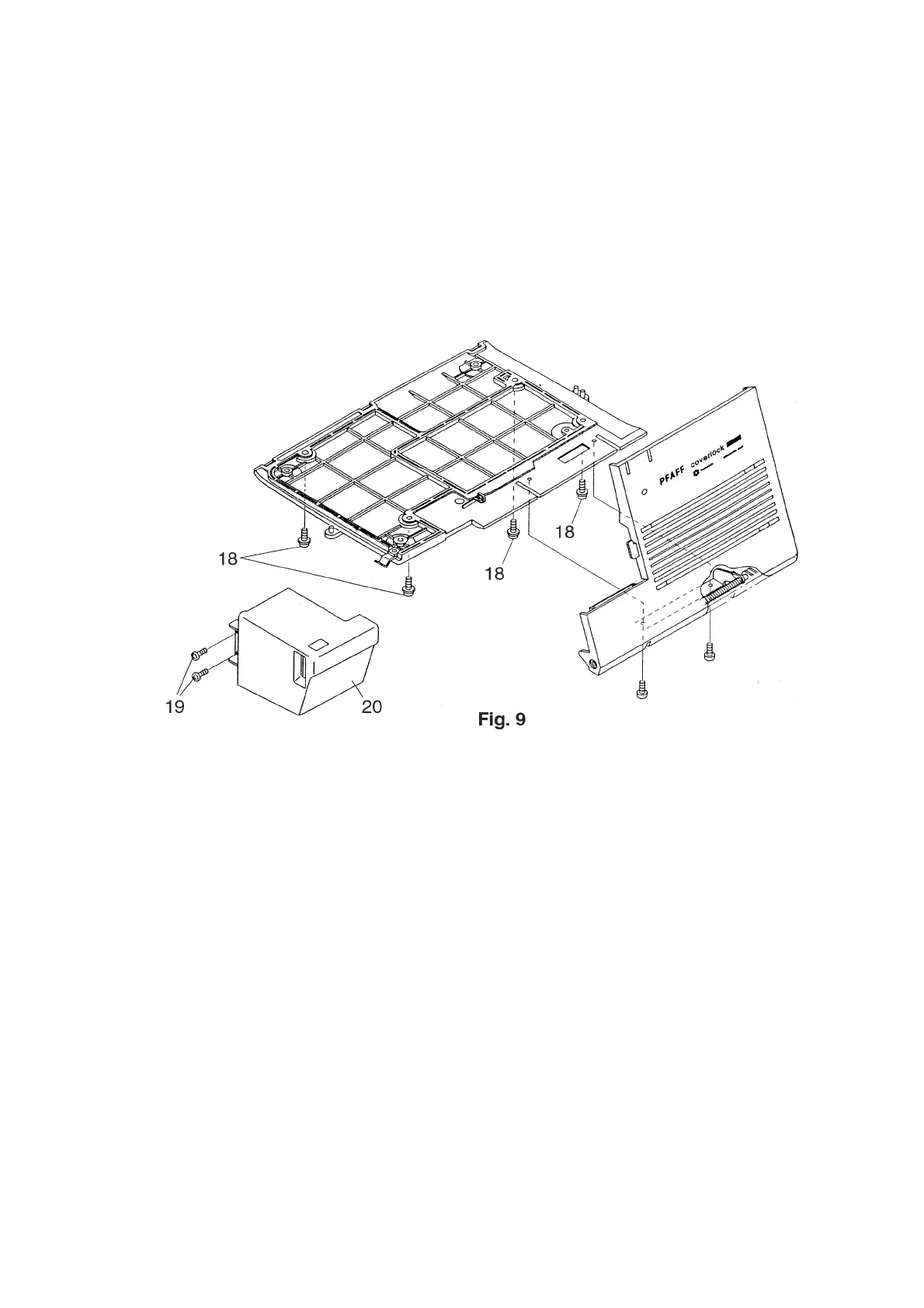

● Unscrew and remove the four fastening screws 18 on the baseplate (fig. 9).
● Remove the machine housing carefully from the baseplate.
● Unscrew and remove the fastening screws 19.
● Remove the swivel plate 20.
