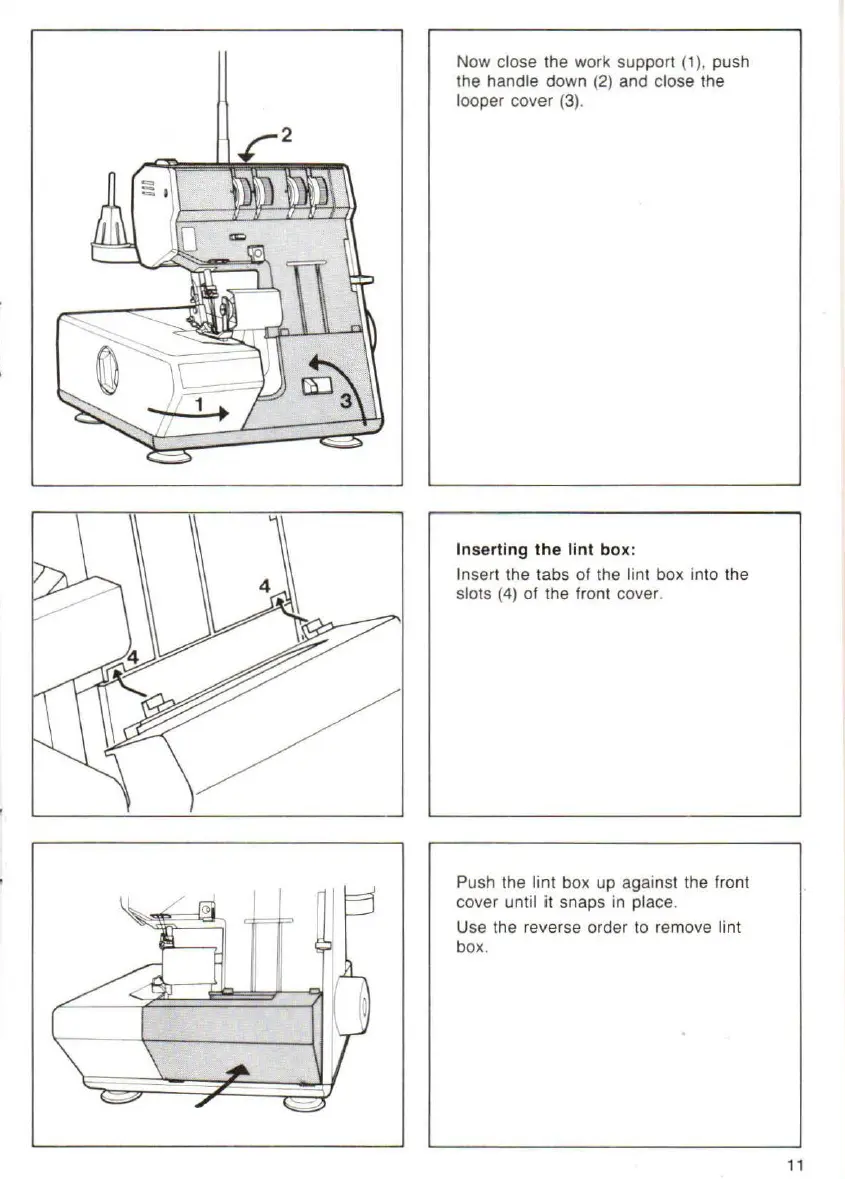

Pfaff Hobbylock 794 - Inserting the Lint Box

Now close the work support (1 ), push
the
handle down (2) and close the
looper cover (3).
Inserting the lint box:
Insert the tabs of the lint box into the
slots (4) of the front cover.
Push the
lint box up against the front
cover
until it snaps in place.
Use the reverse order to remove lint
box.
11
