Pfeiffer Vacuum A3P Series User Manual

GB 02866 - Edition 03 - April 12
1/4
A 20
Description
Description
The A3-P Range is composed of the following pumping systems:
A103P pump,
A603P, A1003P pumping group, composed of an A103P functional
block combined with a Roots.
These pumping systems are fully integrated in a compact and enclosed
frame which includes:
The control panel located on the front panel.
The facilities panel located on the rear panel (except inlet port
located on the top for A603P, A1003P pumps).
The electrical interface panel located on the rear panel.
The pumping systems include an intelligent monitoring system.
A hand held display module can be connected to the front or rear
panel to display and program the pump parameters.
A remote control connector (dry contacts / 50 pins plug) located on
the electrical interface panel allows pump control and communication
with the process tool.
A RS 232/485 connector located on the electrical interface panel
allows pump control and communication with the process tool by
means of the serial link protocol.






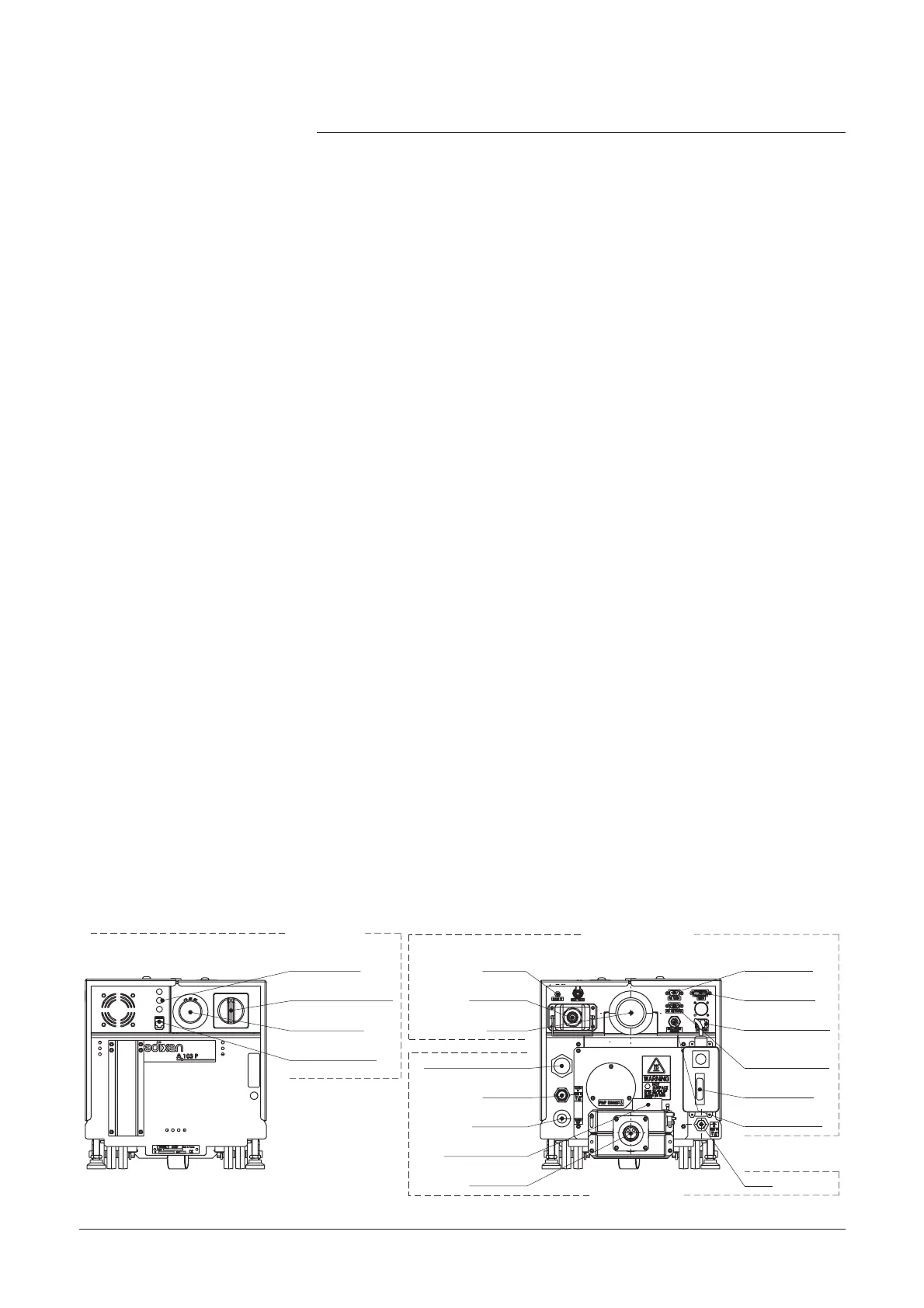

Interfaces
.PRESSUREREGULATOR
#ONTROLPANEL
&RONTPANEL
%MERGENCYSTOP
/./&&MAINSWITCH
,IGHTINDICATORS
(ANDHELDDISPLAY
MODULECONNECTOR
&ACILITIESPANEL
%LECTRICALINTERFACE
2EARPANEL
)NLETPORT
-AINPOWER
%XHAUSTPORT
7ATER/54
-ASSPIN
7ATER).
%NCLOSURESENSOR
2EMOTECONTROL
CONNECTOR
5SERCONNECTOR
.
).
%NCLOSUREEXHAUST
PORT
23CONNECTOR
23
CONNECTOR
(ANDHELDDISPLAY
MODULECONNECTOR
A103P pump
adixen Vacuum Products - Operating instructions - A3P Series
