Pfeiffer Vacuum HICUBE ECO User Manual

7.3.1 Dismantling connections
Safely disconnect the device from the mains before performing any work
1.
Switch the equipment off.
2.
Wait until all components have come to a complete standstill.
3.
Switch off the main switch.
4.
Disconnect the mains plug from the equipment.
1
2
3
4
5

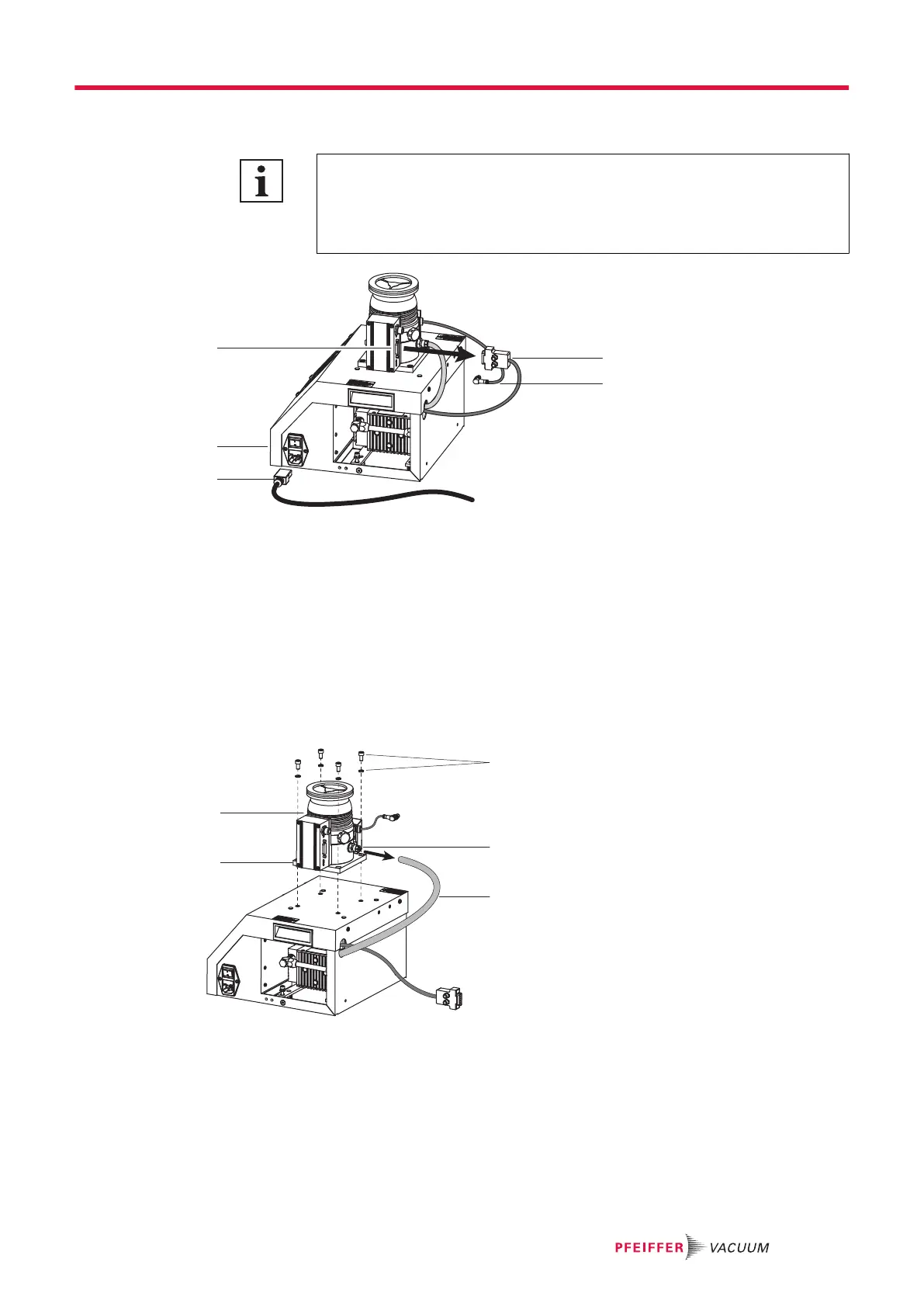

Fig. 13: Removing HiCube Eco connections
1 Mains cable 4 Connecting cable connector
2 Main switch 5 Accessories control cable
3 Multi-functional connection "X3"
1.
Remove the connector from the multi-functional connection on the electronic drive unit of the tur-
bopump.
2.
Unfasten and remove the accessories control cables from the connector.
7.3.2 Removing the turbopump
4
3
2
5
1
Fig. 14: HiCube Eco | Dismantling the turbopump
1 Mounting plate 4 Fore-vacuum connection
2 Turbopump, complete 5 Fore-vacuum line
3 Retaining bolt with washer
1.
Unfasten and remove the fore-vacuum line from the turbopump.
2.
Ensure that the fore-vacuum hose is not bent or damaged.
3.
Unscrew all retaining bolts (x4) and washers from the mounting plate.
Maintenance
37/56
