PFIFF PFAU-Tec Pfautomatic - Page 27

1 10-000-00047 Frame cpl.
2 10-000-00006 Chainstays
3 05/0045.32 Pendulum axle Primo
4 05/0045.34 Steering plate left
5 0
5/0045.37
S
teering plate right
7 05/0045.25 Bearing seat steering bar
8 05/0045.33 Mud guard seat
9 05/0045.16 Tie rod
11 05/0045.30 Steering bar Primo
13 05/0045.38 Steering column Primo
14 10-050-00016 Brake anchoring left
15 10-050-00017 Brake anchoring right
16 11-060-00008 Impeller front 20” with drum brake
17 10-060-00053 Quick release axle
18 10-040-00015 Deep groove ball bearing 6201 wheel
mount
19 10-070-00005 Deep groove ball bearing 6003
20 10-040-00016 Ball and socket head
21 10-040-00018/21 Threaded pin M8x40/M8x50
22 10-060-00020 Mud guard brace
23 10-060-00049 Mud guard 20” front silver
24 10-060-00011
Mud guard 24” rear silver
26 11-060-00004 Impeller rear 24" alu. hollow chamber
27 04/0020.35 Cable duct
28 10-030-00014 Basket front
29 10-060-00007 Plug hub
3
0
1
0-000-00037
R
ibbed insert for footboard 80x40
31 10-020-00003 Star grip nut M8
32 10-020-00002 Knurled nut M8 49 mm
34 10-080-00036 Saddle bar sprung
36 10-050-00015 Distance piece 25 x 17.5 x 8.4
37 10-000-00044 Slide bush Ø16 f. axle
38 10-040-00019 Glide bush Ø 8 f. spring element
39 10-040-00017 Spring element 150 mm
40 10-000-00007 Axle housing
41 10-070-00001 Axle f. 24"/26" long 369.9 mm
42 10-070-00002 Axle f. 24"/26" short 299.9 mm
43 10-000-00008 basket brace
44 10-010-00002 cpl. Gear hub 7-gear back pedal func. cpl.
45 10-070-00007 Differential gearing
46 10-030-00002 Basket
47 11-030-00001 Box cpl. mounted lockable
66
Any unmarked components can be purchased from
specialist shops, as they are not model-specic!
P
art Primo-Quad Item
No: 20"-24"
P
art Primo-Quad Item
No: 20"-24"

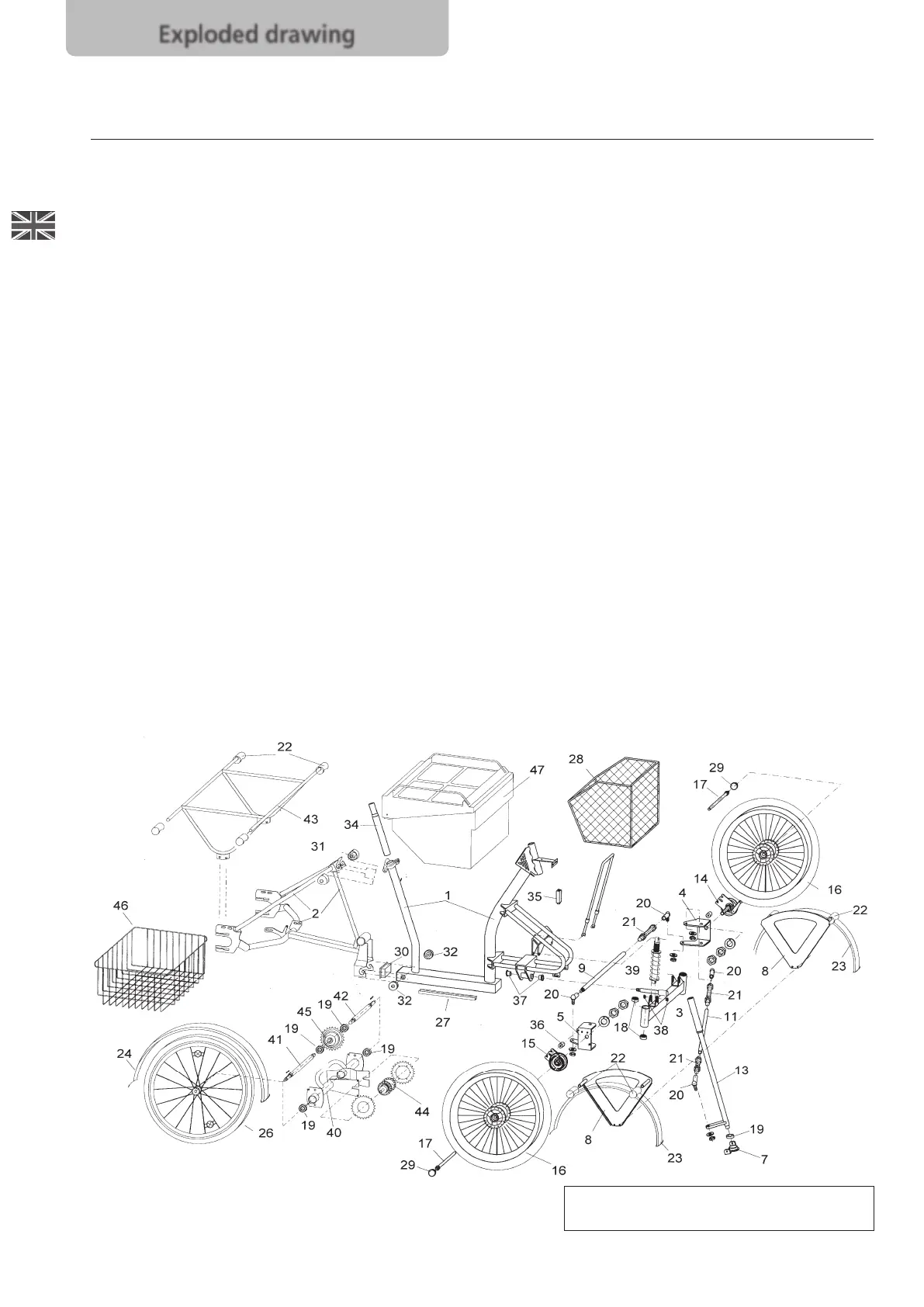

Exploded drawing
