PFIFF PFAU-Tec Pfautomatic - Page 28

1 04/0020.36 04/0020.36 04/0020.36 04/0020.36 Frame
2 10-000-00002 10-000-00002 10-000-00002 10-000-00050 Chainstays
3 10-000-00001 10-000-00001 10-000-00001 10-000-00054 Main frame
4 10-000-00027
Fork 26" silver sprung
5 10-000-00025 10-000-00025 10-000-00052 Fork 26" rigid
6 10-000-00003 10-000-00003 10-000-00003 10-000-00055
Axle housing
7 11-060-00002 11-060-00002 11-060-00002 11-060-00002 Impeller front 26 " aluminium box hub dynamo
8 11-060-00014 11-060-00014 11-060-00014 11-060-00014 Impeller rear 24" aluminium box
9R 10-070-00001 10-070-00001 10-070-00001 10-070-00001 Axle f. 24"/26" long 369.9 mm
9L 10-070-00002 10-070-00002 10-070-00002 10-070-00002 Axle f. 24"/26" short 299.9 mm
10 10-060-00009 10-060-00009 10-060-00009 10-060-00009 Mud guard 26" front silver
11 10-060-00023 10-060-00023 10-060-00023 10-060-00023 Wheel protection strut 26"
12 10-080-00047 10-080-00047 10-080-00047 Saddle bar Ø 31.0 mm rigid
13 10-080-00036 Saddle bar Ø 27.2 mm sprung
14 10-000-00004 10-000-00004 10-000-00004 10-000-00051 basket brace
15 10-020-00003 10-020-00003 10-020-00003 10-020-00003 Star grip nut M8
16 10-020-00002 10-020-00002 10-020-00002 10-020-00002 Knurled nut M8 49 mm
17 10-010-00002 cpl. Gear hub 3-gear back pedal brake cpl.
18 10-010-00016 cpl. 10-010-00016 cpl. 10-010-00016 cpl. Gear hub 7-gear back pedal brake cpl.
19 10-070-00007 10-070-00007 10-070-00007 10-070-00007 Differential gearing
20 10-070-00005 10-070-00005 10-070-00005 10-070-00005 Deep groove ball bearing 6003
21 10-060-00011 10-060-00011 10-060-00011 10-060-00011 Mud guard 24" rear silver
22 10-060-00020 10-060-00020 10-060-00020 10-060-00020 Mud guard brace
23 10-030-00002 10-030-00002 10-030-00002 Basket
24 11-030-00001 Box cpl. mounted lockable
25 10-000-00031 10-000-00031 10-000-00031 10-000-00053 Cable duct
26 10-000-00037 10-000-00037 10-000-00037 10-000-00037 Ribbed insert for footboard 80x40
27 10-010-00045 Laser pinion 3-gear
28 10-010-00047 10-010-00047 10-010-00047 Laser pinion 7-gear
67

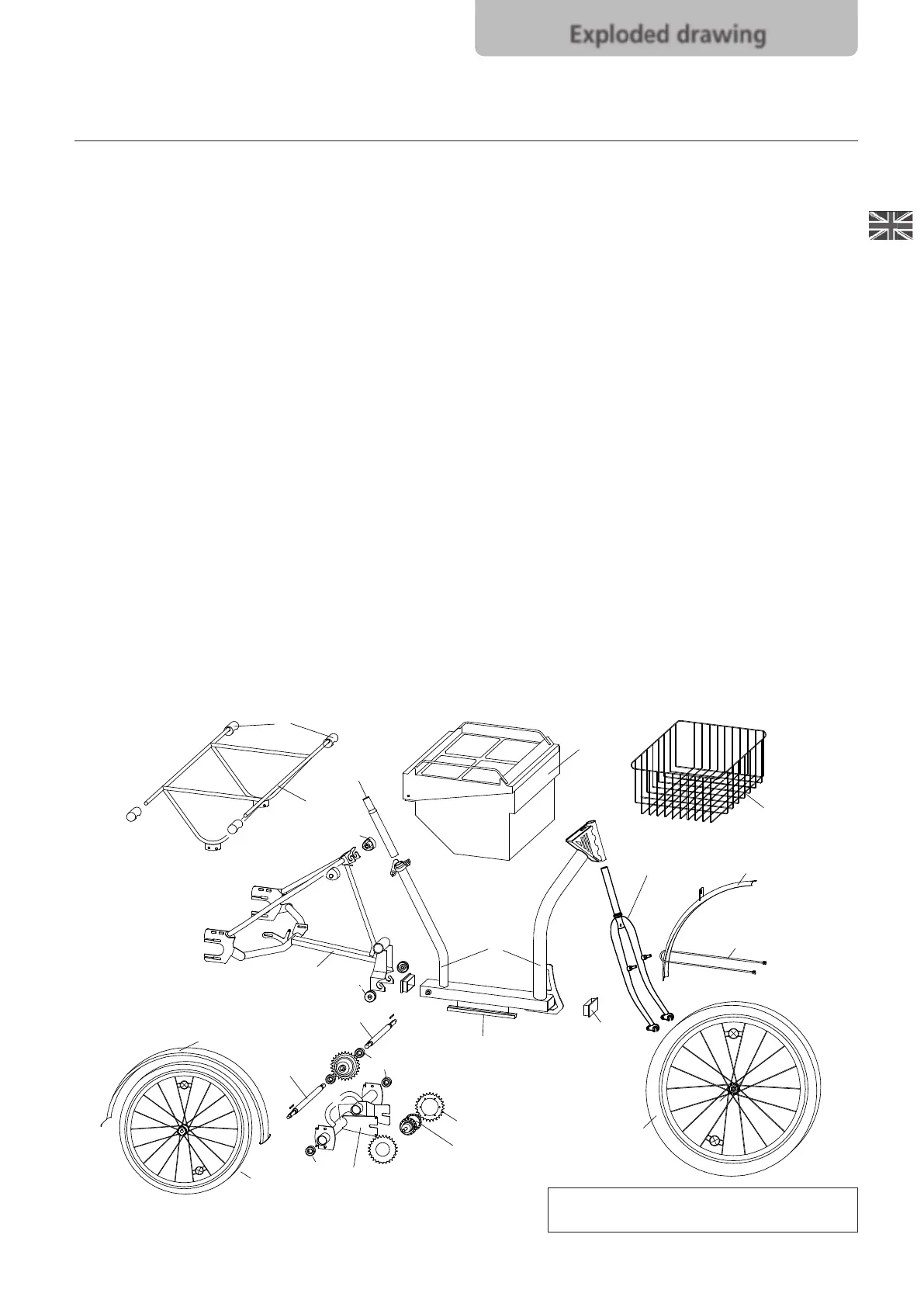

Exploded drawing
P
art Advanced Elegance Classic Alluminio Item
No: 26"-24" 26"-24" 26"-24"
9L
9R
2
3
4,5
6
6
7
8
10
11
12,13
14
15
16
17,18
19
20
20
21
22
24
23
25
26
27,28
Any unmarked components can be purchased from
specialist shops, as they are not model-specic!
