68
Part Lesto Lesto Lesto Item
N
o: 12" 16" 20"
14
9
13
1
2
11
6
16
11
10
15
5 L
5 R
4
2
1
3
7
8
Any unmarked components can be purchased from
specialist shops, as they are not model-specic!

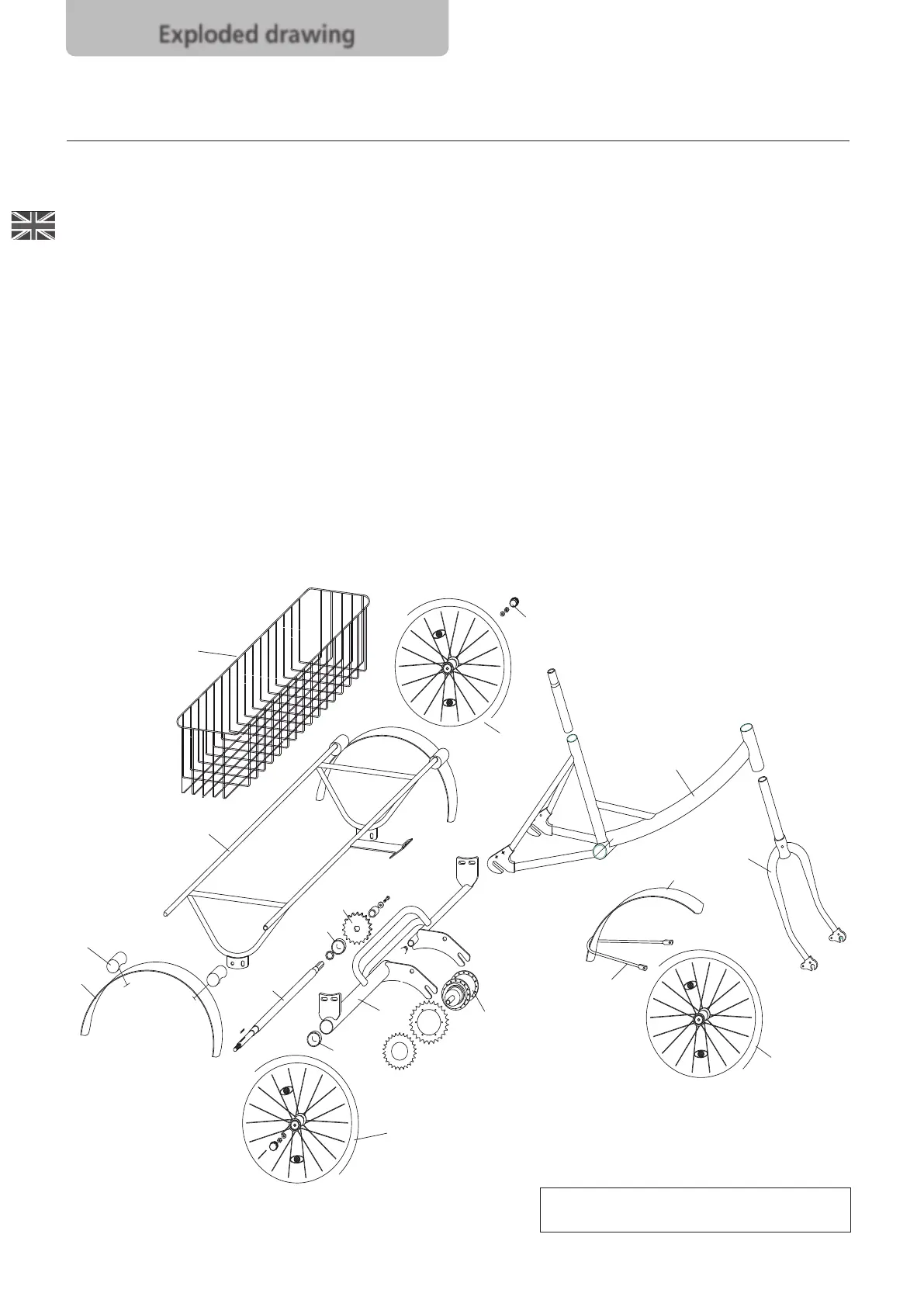

Exploded drawing
1 08/0020.25 08/0020.27 08/0020.28 Frame
2 08/0000.03 08/0000.04 08/0000.05 Fork rigid
3 0
8/0020.07
0
8/0020.11
0
8/0020.11
A
xle housing
4 08/6000.14 08/6000.25 08/6000.26 Front wheel
5R 08/6020.03 08/6020.02 08/6020.05 Impeller rear right
5L 08/7020.10 08/7020.11 08/7020.12 Impeller rear left
6 08/7020.03 04/7020.05 04/7020.05 Axle left
7 08/6000.24 08/6000.37 08/6000.40 Mud guard front
8 08/6000.45 08/6000.45 08/6000.45 Wheel protection strut
9 08/0020.09 08/0020.13 08/0020.17 basket brace
10 10-010-00002 cpl. 10-010-00002 cpl. 10-010-00002 cpl. Gear hub 3-gear back pedal brake cpl.
11 10-070-00005 10-070-00005 10-070-00005 Deep groove ball bearing 6003
12 08/6000.22 08/6000.38 08/6000.39 Mud guard rear
13 10-060-00020 10-060-00020 10-060-00020 Mud guard brace
14 10-030-00024 10-030-00003 10-030-00003 Basket
15 10-060-00007 10-060-00007 10-060-00007 Plug hub
16 08/1020.20 08/1020.20 08/1020.20 Drive pinion
