PFIFF PFAU-Tec Pfautomatic - Page 30

69
P
art Grazia Merano Item
No: 26"-24" 26"-24"
1
2
3,4
5
6
7
8
9L
9R
17
18
18
18
10
11
12
13
14
15
16
19
20
21
22
23
24
25,26
27
28
Any unmarked components can be purchased from
specialist shops, as they are not model-specic!
1 10-000-00021 10-000-00021 Main frame Grazia/Merano
2 10-000-00022 10-000-00022 Chainstays Grazia/Merano
3 1
0-000-00027
F
ork 26" silver sprung
4 10-000-00025 Fork 26" rigid
6 10-000-00023 10-000-00003 Axle housing
7 10-000-00036 10-000-00031 Cable duct
8 10-000-00037 10-000-00037 Ribbed insert for footboard 80x40
9R 10-070-00001 10-070-00001 Axle f. 24"/26" long 369.9 mm
9L 10-070-00002 10-070-00002 Axle f. 24"/26" short 299.9 mm
10 10-010-00029 cpl. 10-010-00029 cpl. Gear hub 5-gear drum brake cpl.
11 10-010-00046 10-010-00046 Laser pinion 7-gear
12 11-060-00004 Impeller rear 24" aluminium hollow chamber
12 11-060-00014 Impeller rear 24" aluminium box
1
3
1
0-060-00010/black
1
0-060-00011/silver
M
ud guard 24" rear
14 11-060-00010 Impeller front 26" aluminium hollow chamber hub dynamo
14 11-060-00002 Impeller front 26" aluminium box hub dynamo
15 10-060-00008/black 10-060-00009/silver Mud guard 26" front
16 10-060-00020 10-060-00020 Mud guard brace
17 10-070-00007 10-070-00007 Differential gearing
18 10-070-00005 10-070-00005 Deep groove ball bearing 6003
19 11-100-00012 11-100-00012 Central motor Daum
20 10-100-XXXXX 10-100-XXXXX Motor cover
21 10-100-00004 10-100-00004 Crank arm set
22 10-000-XXXXX 10-000-XXXXX Holder for plug contact
23 10-000-XXXXX 10-000-XXXXX Battery brace
24 10-100-XXXXX 10-100-XXXXX Power pack/ battery
25 10-080-00036 Saddle bar Ø 27.2 mm sprung
26 10-080-00047 Saddle bar Ø 31.0 mm rigid
27 10-030-00002 Basket
28 11-030-00001 Box cpl. mounted lockable

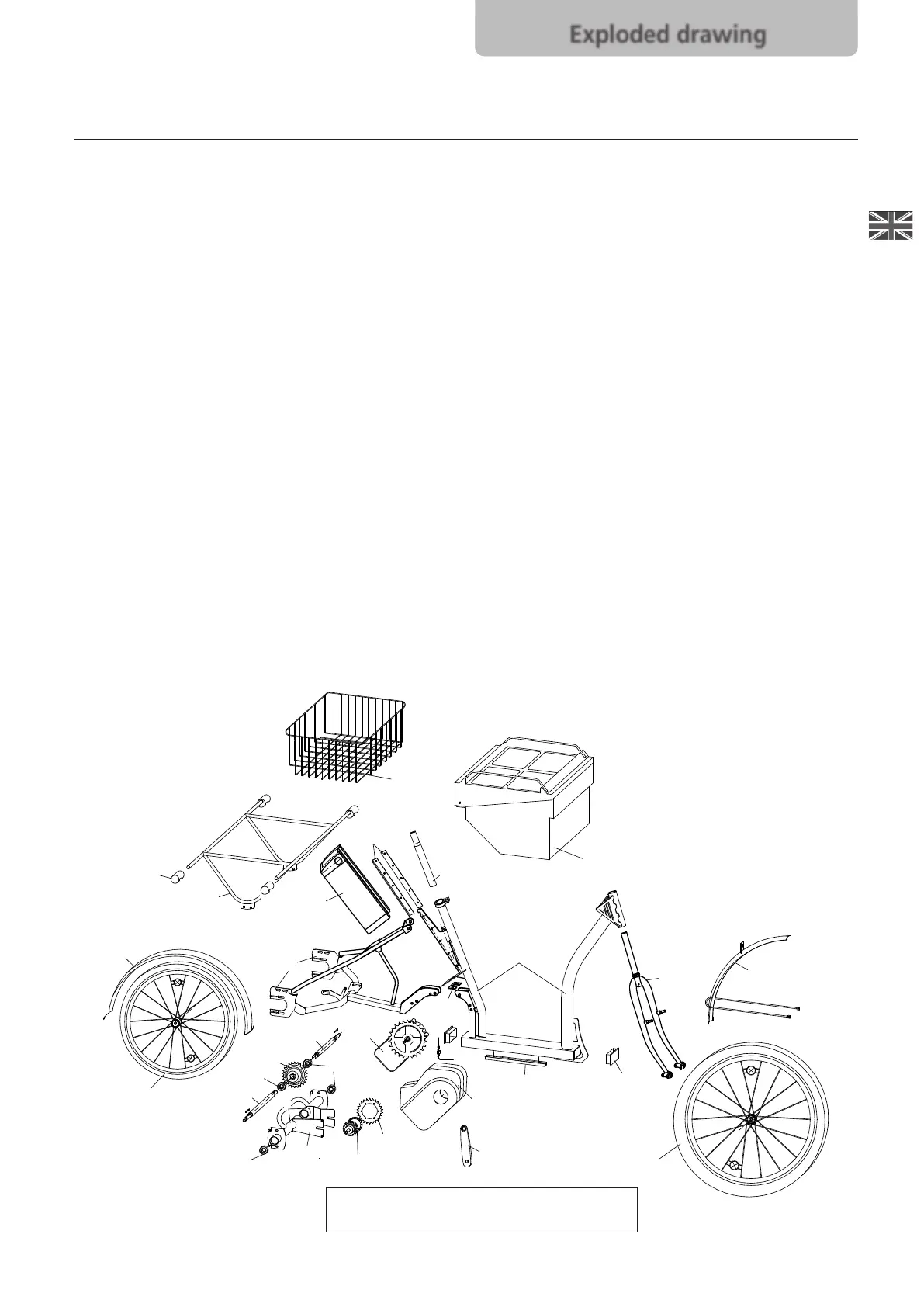

Exploded drawing
