First disconnect the main power supply cable, then all other cable connections!

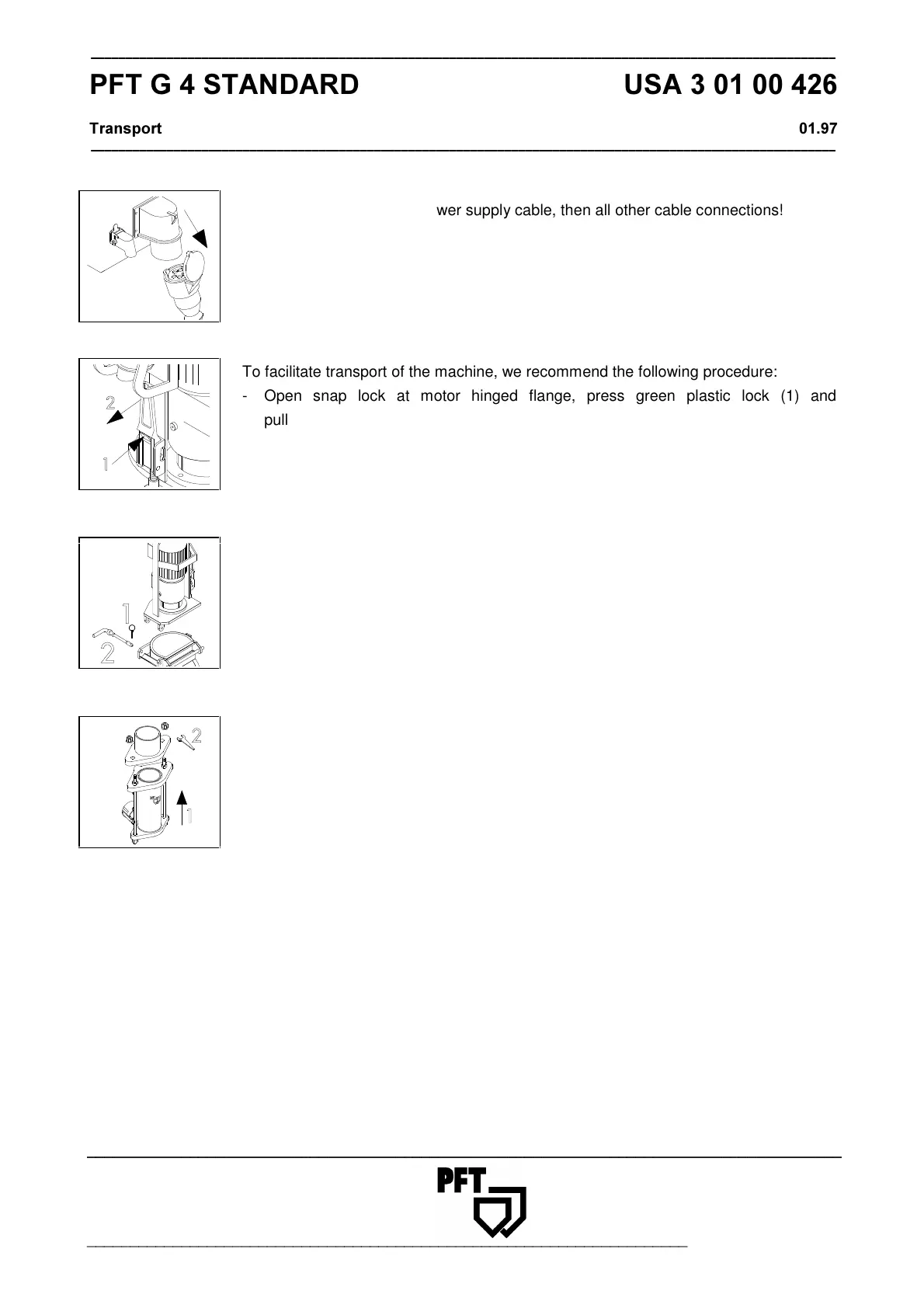

To facilitate transport of the machine, we recommend the following procedure:
- Open snap lock at motor hinged flange, press green plastic lock (1) and
pull lever (2).
- Take splint out (1), pull out bolt (2), carefully tilt and take away motor unit (weight
about 53 kg).
- Unscrew pump unit (1) by using key (SW 24) (2) (weight about 17,5 kg).
