2. Performance specications:
Operating voltage: 120 or 208/240 VAC (eld selectable)
Nominal power consumption: 10 VA
Operating frequency: 50/60 Hz
Accuracy: ±5% of full scale (@5mA THC)
THC Alarm Level: 4.8 mA or 1.9mA (eld selectable)
Monitor Hazard Current: 25 μA max. @ 120V
50 μA max. @ 208/240V
3. Installation
Check the LIM on arrival for shipping damage. Do not apply power if damage is
evident. If unit will not be immediately installed, store it in a clean, dry location,
protected from construction debris or other contamination.
The Mark V LIM is intended be installed
only in conjunction with an Isolated
Power System, according to all applicable codes and standards. Do not connect
to grounded (non-isolated) power systems.
Unit weight is approximately 2.3 lbs. (1 kg). Four mounting holes are located on
the corners of the front bezel. Afx unit using four each #4 - 40 x 1/2” machine
screws (supplied with IPS panel). For other installations, including upgrade of older
generation Line Isolation Monitors, custom retrot mounting brackets and
PG LIFELINK
mA
SAFE
HAZARD
Total Hazard Current
Menu
Select
PUSH TO
SILENCE
PUSH TO
TEST
MARK V
LINE ISOLATION MONITOR
DISPLAY CODES:
Self-Calibration i n Progress
Loss of Ground Connection
Service Required
1
S
2
t
0
at
V
us
1
:
2:
S
0
y
0
st
L
e
o
m
a d
O K
2
5%
:

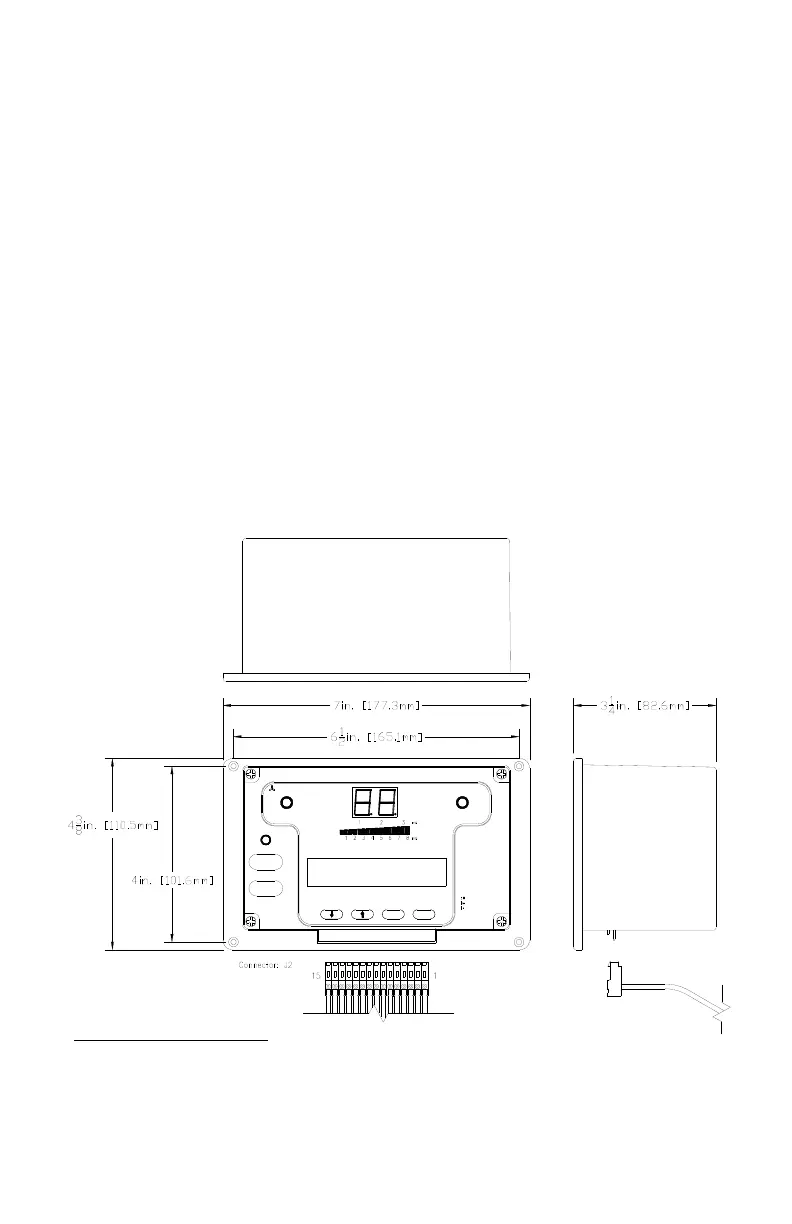

Figure 1 - Mounting Dimensions 
