PGS K-30 - Fastener Visual Guide; Drawings of Nuts & Bolts

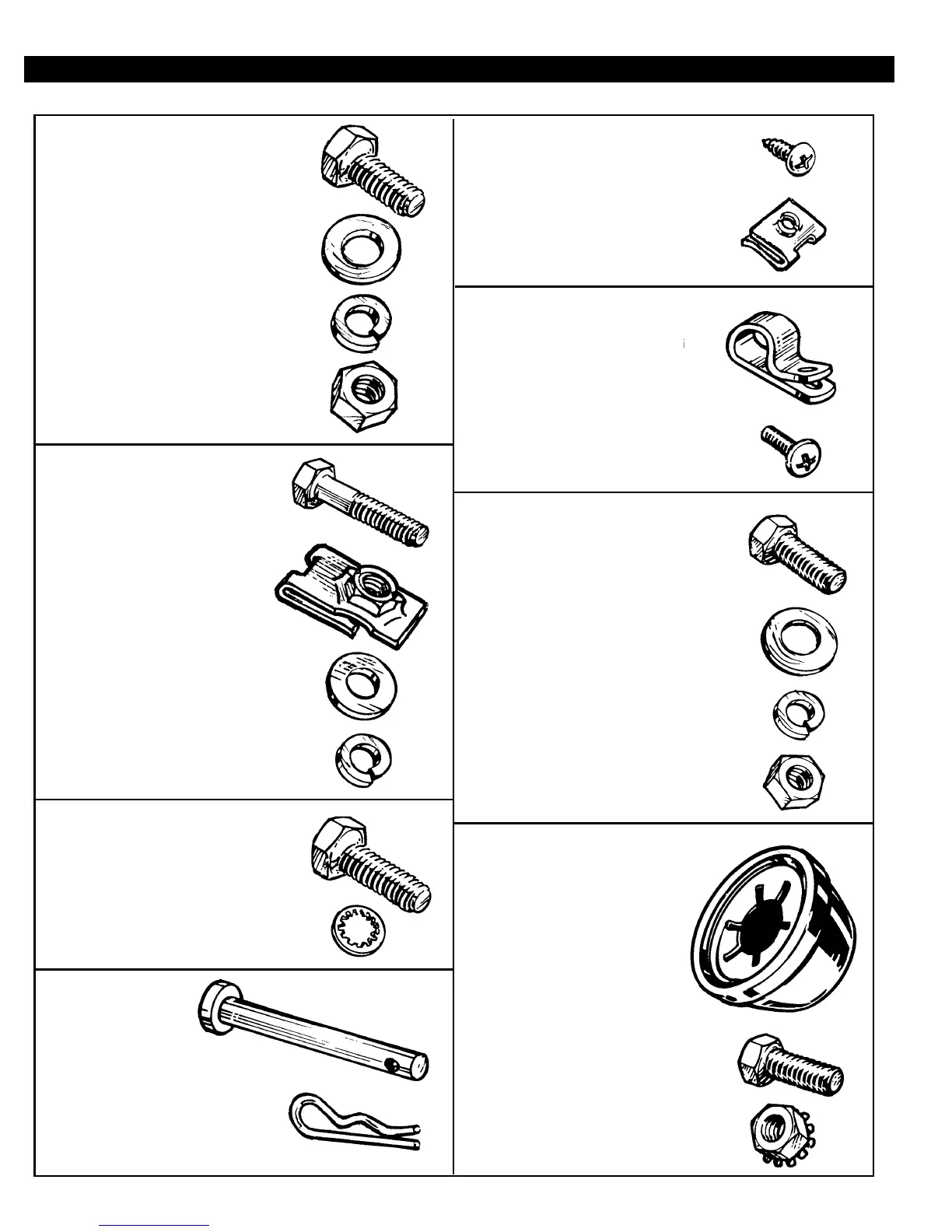

DRAWINGS OF NUTS & BOLTS AND FASTENERS
REF # DESCRIPTION (QUANTITY) REF # DESCRIPTION (QUANTITY)
BASE TO PEDESTAL COLLAR BOX TO PEDESTAL
AND CONTROL PANEL
1. 5/16 X 3/4" BOLT (6)
13. 8 X 1/2” SHEET METAL SCREW (2)
2. 5/16” WASHER (6) 14. TINNERMAN CLIP (2)
FEEDLINE
3. 5/16” LOCK WASHER (6)
15. FEEDLINE MOUNTING CLIP (1)
4. 5/16” NUT (6)
16. 10-32 S.S. MACHINE SCREW (3)
HEAD TO PEDESTAL
ASSEMBLY
5. 1/4 X 20 X 1-1/4" BOLT (4) SIDE SHELF ASSEMBLY
17. 1/4 X 20 X 3/4" BOLT (4)
6. CAGE NUT (4)
18. 1/4" WASHER (4)
7. 1/4" WASHER (4)
19. 1/4" LOCK WASHER (4)
8. 1/4" LOCK WASHER (4)
20. 1/4" NUT (4)
SIDE HANDLE
WHEEL HUB
9. 3/8 X 16 X 1" BOLT (2)
21. AXLE CAP (2)
10. 3/8” STAR WASHER (2)
UPPER
CASTING TO
LOWER CASTING
22. 1/4 20 X 3/4" BOLT (3)
11. HINGE PIN (2)
23. 1/4 20 NUT w/LOCK WASHER(3)
12. HAIR COTTER PIN (2)
10
