Power In:
Connectors: 2 x Fischer 3-pin Male
Spec: 20-36V DC, 6.2A Max, 5A typical
2 power inputs are provided to enable hot swapping between power
sources
Power Out:
Connectors: 2 x Fischer 4-pin Female
Spec: 12V accessory power, 1.5A Max
Power Draw:
Min: 80W in standby mode with no CineMag
Max: 150W with CineMag, recording at high frame rate
Typical: 110W
Power draw increases with frame rate and while acti vely recording
Power & Connectors
5

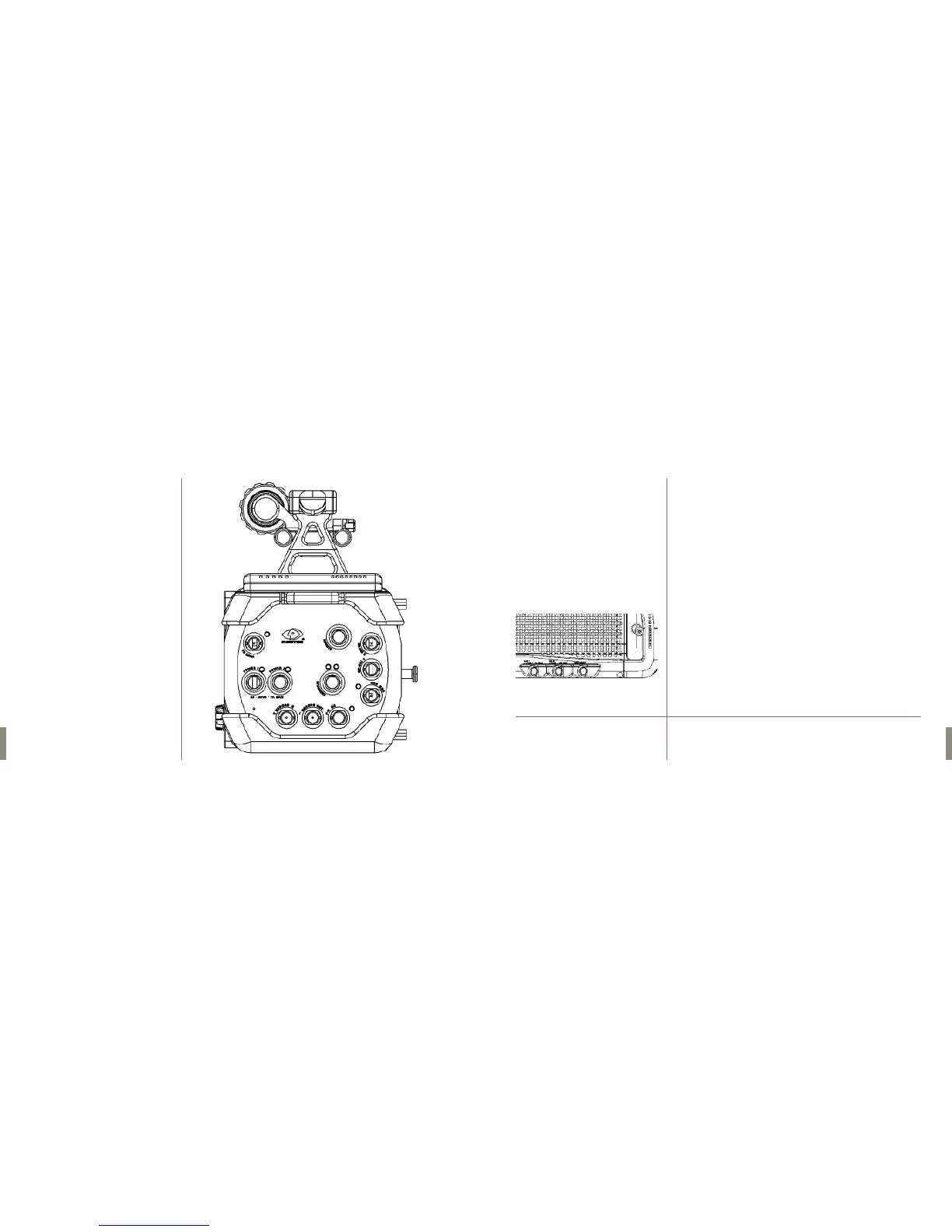

Rear View
