Chapter 7: Support
29

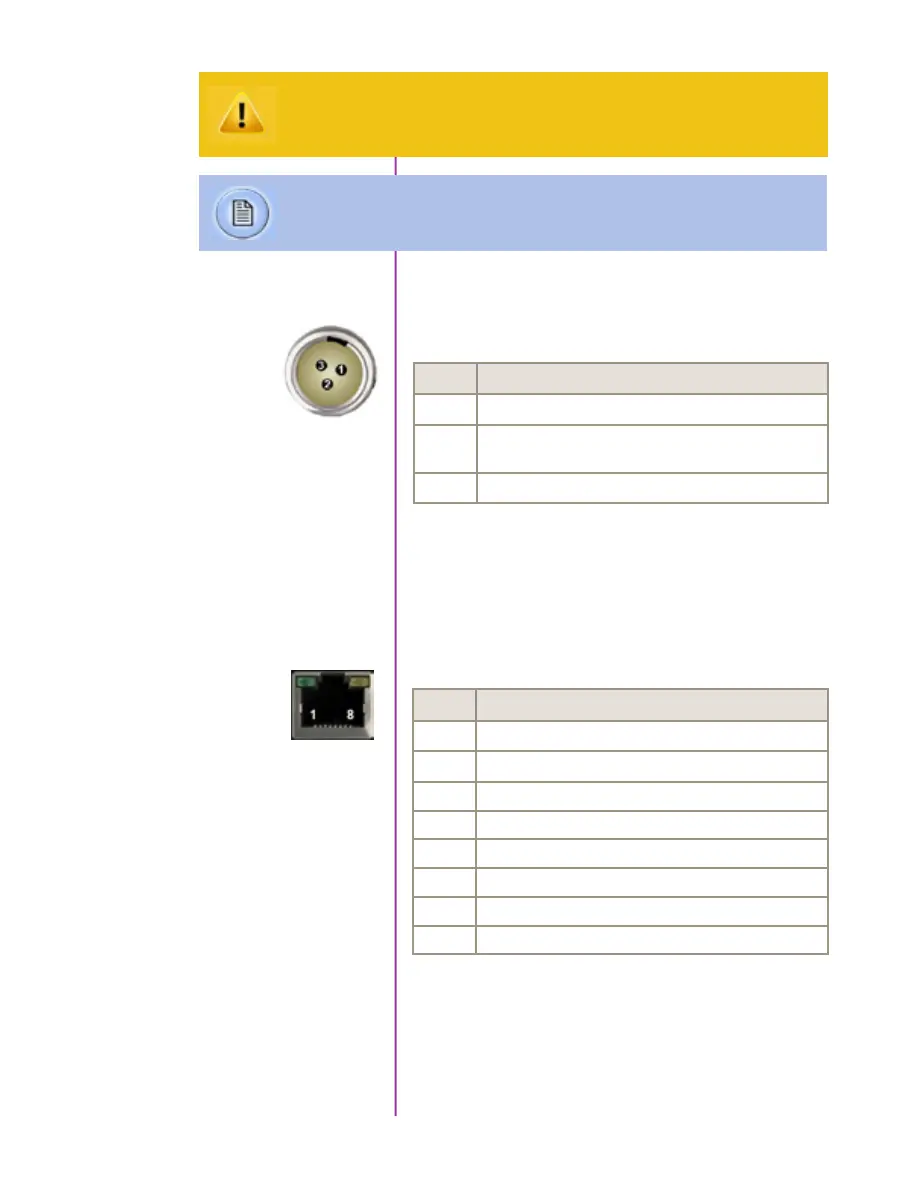

Power Connector
Power port
3-pin Mini XLR Connector part # REAN RT3FC-B
Ethernet Connector
Gigabit Ethernet port
RJ-45
connector pinouts
PIN NOMENCLATURE / FUNCTION
1 GND / Power Ground
2 VDC / Provides DC (Direct Current) positive power to the
Phantom camera. Valid voltage ranges are +12-28VDC
3 CHGND / Chassis Ground
PIN NOMENCLATURE / FUNCTION
1 MDI2+ / Gigabit Ethernet
2 MDI2- / Gigabit Ethernet
3 MDI3+ / Gigabit Ethernet
4 MDI3- / Gigabit Ethernet
5 MDI1+ / Gigabit Ethernet
6 MDI1- / Gigabit Ethernet
7 MDI0+ / Gigabit Ethernet
8 MDI0- / Gigabit Ethernet
Use these schematics to build custom cables at your own risk. Mis-wired cables
can cause serious damage to the camera, which is not covered under warranty.
Vision Research recommends only using cables supplied by Vision Research.
These pin-out diagrams refer to the connector on the camera body. Part numbers
indicated are for the cable’s connector.
